Discontinued

BC™ 30

Part Number 010-12242-02

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

The BC 30 (010-12242-02) is compatible with nüviCam, nüvi 67LM, nüvi 57LM, nüvi 55LM, nüvi 65LM and nüvi 2567LM

Keep a Watchful Eye on What’s Behind You

Shows what’s behind your vehicle when in reverse

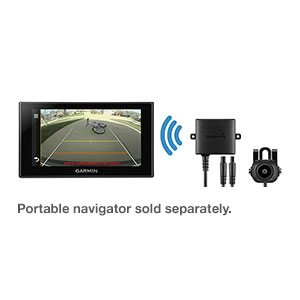

View footage right on your GPS navigator’s display* (sold separately)
Wire to constant power and toggle easily between camera and navigation modes
Wirelessly transmits video up to 45 feet
Rugged enough to withstand harsh weather
Compatible with BC 30 backup camera (sold separately) to shows what's behind your vehicle when in reverse.

A quality backup camera like the Garmin BC 30 can significantly enhance rearward visibility for drivers and, thus, help minimize the risk of “blind zone” accidents whenever your vehicle is moving in reverse.

Take the Worry out of Backing Up

When paired with a compatible GPS navigator, the BC 30 wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle. If the camera is wired to your reverse lights for power, your navigator can automatically display camera footage every time the vehicle is shifted into reverse – and go back into navigation mode when shifted into a forward gear.

See Clearly What Needs to be Seen

As another option, you can wire the system to constant power, which allows you to toggle between the navigation display and backup display modes at the press of a button. The transmitter will send camera footage to your navigator’s receiver mounted up to 45 feet (13.7 meters) away (range varies based on installation; some vehicles may require an extension cable, sold separately).

Professional Installation Recommended

For installation, Garmin recommends taking the BC 30 to your dealer. But if you’re a diehard do-it-yourselfer, that’s an OK alternative as well. You’ll need to mount the camera on the rear of your vehicle and connect it to a power source, such as the rear lights. The BC 30 is rugged enough to withstand even the harshest of weather. And up to 4 cameras can be used together in 1 system, for multiple viewing angles.

*Software update may be necessary when pairing your compatible navigation device with BC 30.

Range varies based on installation. Professional installation recommended. Vehicles that do not provide constant minimum voltage may require the installation of a relay (sold separately).

Physical & Performance
Camera and transmitter input voltage	From 9 to 28 Vdc Transmitter fuse
Transmitter fuse	500 mA, fast-blow
Camera and transmitter current usage	150 mA at 12 Vdc
Camera and transmitter waterproof rating	IPX7*
Camera view angle	160 degree (Diagonal)
Camera Minimum illimination	1 lux
Camera temperature range	From -40° to 85°C (from -40° to 185°F)
Transmitter and receiver cable temperature range	From -20° to 70°C (from -4° to 158°F)
Receiver cable input voltage	From 10 to 24 V
Receiver cable fuse	2 A, 250 V

*The device withstands incidental exposure to water of up to 1 m for up to30 min. For more information, go to Garmin.com/waterrating.

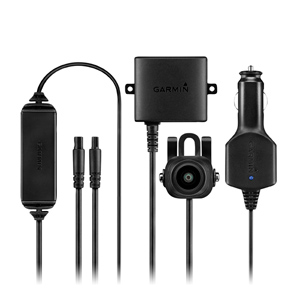

BC™ 30 camera with mounting bracket
wireless transmitter and power cable
vehicle power cable
documentation
