Transom Mount Transducer with Depth & Temperature, 8-pin (Dual Beam) - Garmin Design

Transom Mount Transducer with Depth & Temperature, 8-pin (Dual Beam) - Garmin Design

Part Number 010-10249-40

ONLINE STORE

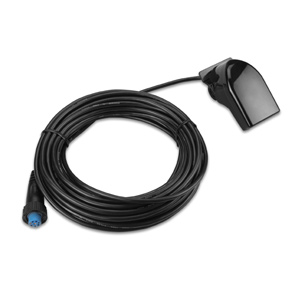

Transom Mount Transducer with Depth & Temperature, 8-pin (Dual Beam) - Garmin Design

This dual beam transducer replaces the one included with your echo™ series fishfinder.

A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with the echo fishfinders, transducer adapter cable, 010-11947-00, is required. Transducer, 010-10249-20, is preferred.

General

Transducer frequency77/200 kHz
Transducer power500 W
Transducer beamwidth45°/15°
Transducer maximum depth1,900 ft.
Transducer cable length30 ft.
Transducer depth/speed/temperatureDepth and Temperature
Transducer number of pins8-pin
Transducer supported deadrise/transom angles0°-70° degree transom
