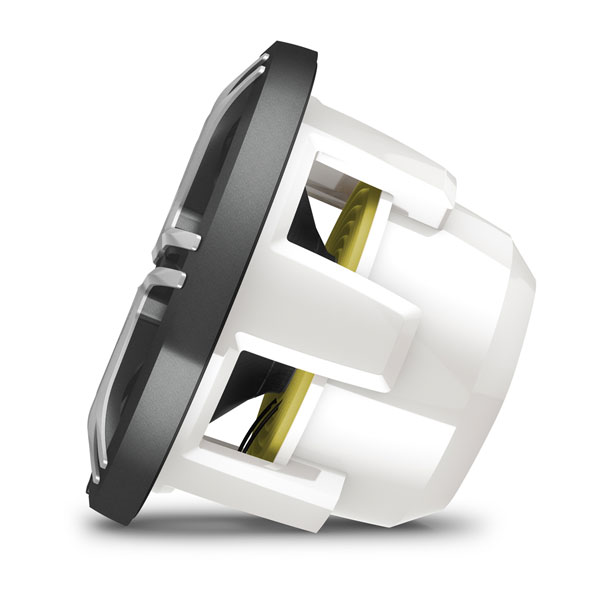

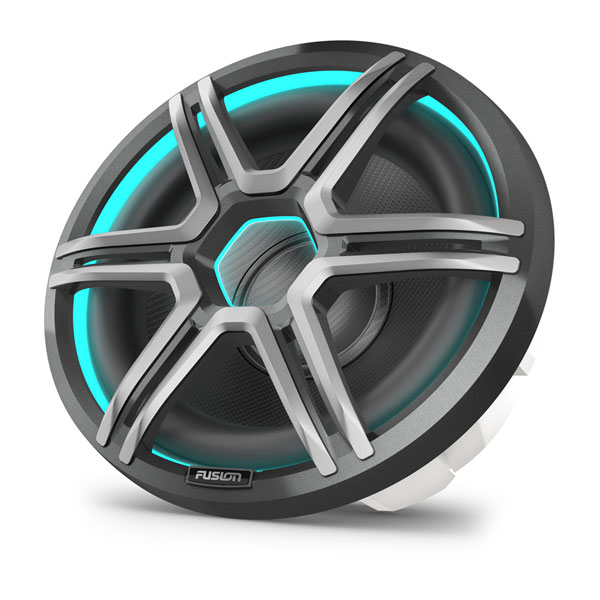

Fusion Apollo Subwoofer

12" LED Marine Subwoofer with Sports Gray Grille

Part Number 010-02918-53

BUY NOW

Feature
Specs
In The Box
Update
Accessories

SURRENDER TO THE SOUND

Fusion Apollo subwoofers deliver immersive, high-fidelity bass on the water and are engineered to withstand harsh marine conditions.

CRYSTAL-CLEAR PREMIUM BASS

INCLUDED INTERCHANGEABLE GRILLE IN SPORTS WHITE OR SPORTS GRAY STYLE

MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS

AVAILABLE IN 10” AND 12” SIZES

RIGOROUSLY TESTED MARINIZED DESIGN

WHAT YOU'LL LOVE

PREMIUM BASS

Enjoy immersive bass at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.

LED LIGHTS

Showcase your boat with the dual-hue LED lighting rings that provide a unique look. Choose from a broad range of colors to match the mood or music.

INTERCHANGEABLE GRILLES

Complete your subwoofers with the included sports white or sports gray interchangeable grilles. Purchase the shielded grille for more protection; also available in gray or white.

Made for life on the water.

INTEGRATE

FUSION AUDIO SYSTEM

Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

SYSTEM INTEGRATION

Pair your subwoofer with Fusion head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.

MARINIZED CONNECTORS

Embedded water-resistant marinized connectors simplify the design and make installation easy; they also meet ABYC requirements.

HEAR THE BEAT

Pair your subwoofer with the Fusion Apollo speakers for immersive, high-fidelity audio on the water.

FUNCTIONAL

SUBWOOFER GRILLES

All types of subwoofer grilles provide a distinct look and complement the dual-hue LED lighting.

EASY INSTALL

The grilles are simple to install without tools and don’t have screws for a seamless look and finish.

DURABLE

Fusion Apollo subwoofers are the most durable on the market and are built to withstand abuse in harsh marine environments (in accordance with IP67 rating and ISO 12216 standards).

General
Sizes	10"/12"
Color	Sports White or Sports Gray
Physical dimensions (Diameter)	10": 10.83" (275 mm) 12": 14.02" (356 mm)
Physical dimensions (Depth)	10": 6.92" (175.8 mm) 12": 9.77" (248.2 mm)
Weight	10": 13.4 lbs (6.1 kg) 12": 27.8 lbs (12.63 kg)
Water and dust rating	IP66/IP67
Speaker type	Subwoofer
Continuous power handling (RMS)	10": 300 W 12": 700 W
Sensitivity (SPL @ 1 W/1 m)	86 dB
Frequency response (+/- 3 dB)	10": 30 Hz-2 kHz 12": 20 Hz-2 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	10": 50-300 W 12": 200-700 W
LED lighting	yes - CRGBW (5 colors)
LED supply voltage	10.8-16 VDC
LED Load Current @ 14.4 VDC (max)	10": 190 mA per color 12": 270 mA per color
Operating temperature range	32° to 122° F (0° to 50° C)
Cone material	Polypropylene Cone with Rubber Surround
Warranty	3 years
Electrical Features
Compass safe distance	10": 13.45 ft (410 cm) 12": 19.03 ft (580 cm)
Networking & Connectivity
Speaker connections	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.25" (6.3 mm) negative)
LED connection	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
Mounting Dimensions
Mounting diameter clearance	10": 8.78" (223 mm) 12": 11.85" (301 mm)
Mounting depth clearance	10": 5.31" (135 mm) 12": 7.80" (198 mm)
Frontal grille protrusion	10": 1.77" (45 mm) 12": 2.17" (55 mm)

General
Sizes	10" or 12"
Color	sports white or sports gray
Physical dimensions (Diameter x Depth)	10" subwoofer: 10.83" x 6.92" (275 x 175.8 mm) 12" subwoofer: 14.02" x 9.77" (356 x 248.2 mm)
Water and dust rating	IP66/IP67
Configuration	Subwoofer
Peak power	10" subwoofer: 600 W 12" subwoofer: 1400 W
RMS power	10" subwoofer: 300 W 12" subwoofer: 700 W
Sensitivity (1 watt @ 1 meter)	86 dB
Frequency response	10" subwoofer: 30 Hz - 2 kHz 12" subwoofer: 20 Hz - 2 kHz
Nominal impedence	4 ohms
Recommended amplifier power (RMS)	10" subwoofer: 50 - 300 W 12" subwoofer: 200 - 700 W
LED lighting	yes (CRGBW; 5 colors)
LED supply voltage	10.8 - 16 VDC
LED load current @14.4 VDC	10" subwoofer: 0.19 A per color 12" subwoofer: 0.27 A per color
LED load current @14.4 VDC when using Garmin Spectra ™¹	10" subwoofer: 0.40 A maximum 12" subwoofer: 0.54 A maximum
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	10" subwoofer: 2" 12" subwoofer: 4"
Cone material	Polypropylene Cone with rubber surround
Compass-safe distance	10" subwoofer: 13.45 ft (410 cm) 12" subwoofer: 19.03 ft (580 cm)
Speaker connection	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.25" (6.3 mm) negative)
LED connection	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
Warranty	3 years
Mounting Dimensions (Cutout)
Mounting diameter clearance	10" subwoofer: 8.78" (223 mm) 12" subwoofer: 11.85" (301 mm)
Mounting depth clearance	10" subwoofer: 5.31" (135 mm) 12" subwoofer: 7.80" (198 mm)

¹When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.

Subwoofer with a sports white or sports gray grille (based on what you select)
Audio cable with water-resistant two-way connector
LED cable with water-resistant six-way connector
Mounting screws
Documentation
