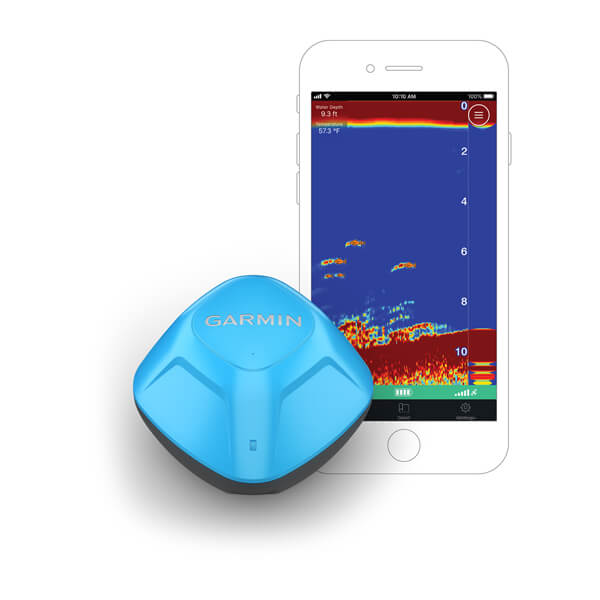

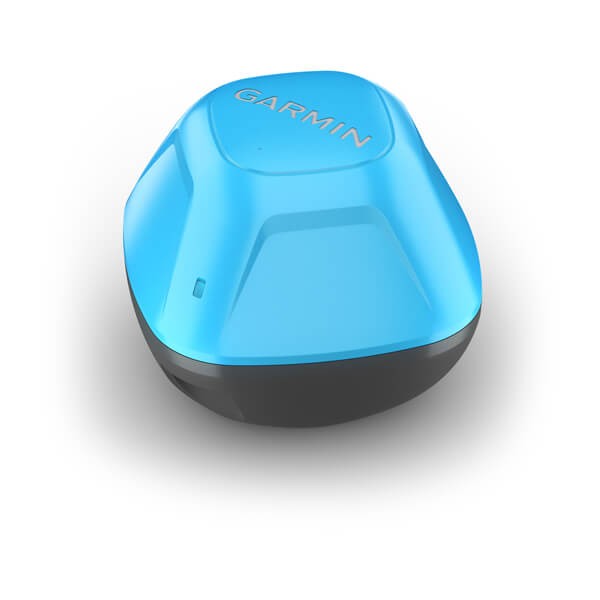

STRIKER Cast GPS

STRIKER Cast GPS

Part Number 010-02246-02

ONLINE STORE

STRIKER Cast GPS STRIKER Cast GPS STRIKER Cast GPS STRIKER Cast GPS

General

Physical dimensions 3'' x 2.97'' x 2.28'' (75.8 x 75.5 x 57.87 mm)
Weight 2.6 oz (75 g)
Water rating IPX7
Operating temperature From -20° to 60° C (from -4° to 140°)
Charging temperature From 5° to 40° C (from 41° to 104° F)

Sonar Features & Specifications

Frequencies supported 260/455 kHz
Maximum depth From less than 0.6 m to 45 m (from less than 2 ft to 150 ft)
Beamwidth 22° x 63° @ 260 kHz
9° x 14° @ 455 kHz

Fishfinder Features

Fish symbol ID (helps identify fish targets) yes
Autogain (minimizes clutter, maximizes targets) yes
A-Scope (real-time display of fish passing through transducer beam) yes
Scroll speed adjustment yes
Water temperature sensor included yes
Record Quickdraw contours yes

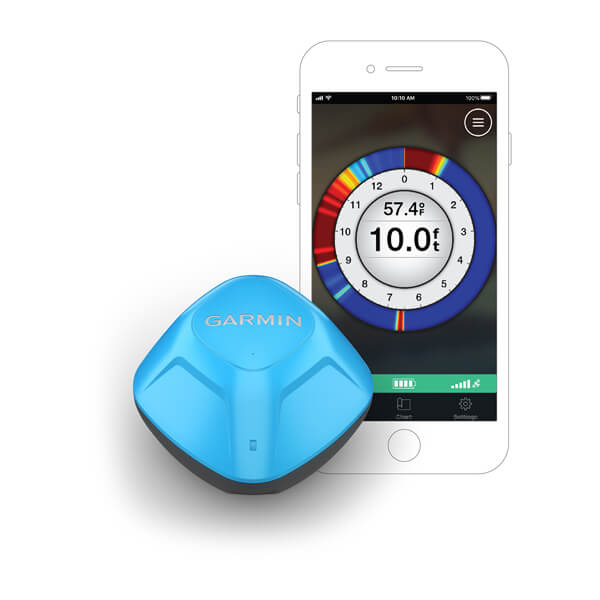

Ice fishing flasher yes

Additional

Included tether length 16.4 ft (5 meters)
Integrated GPS yes
Streaming range 60 m (200')
Record Quickdraw contours yes
Download from Quickdraw contours community yes
Depth range shading yes
Mark waypoints on map yes
Tracks  no
Battery life 10+ hours1 on internal USB-rechargeable battery

1Battery life may vary depending on usage

  • STRIKER Cast GPS
  • Carrying bag
  • Tether (16.4 ft (5 meters))
  • USB cable for charging
  • Documentation
