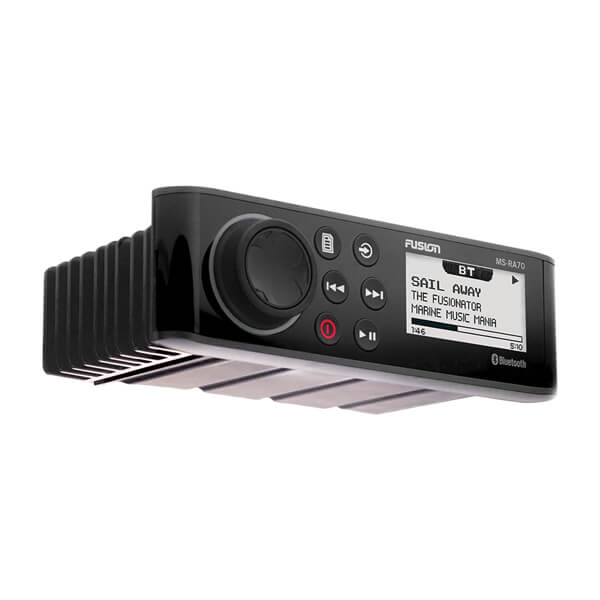

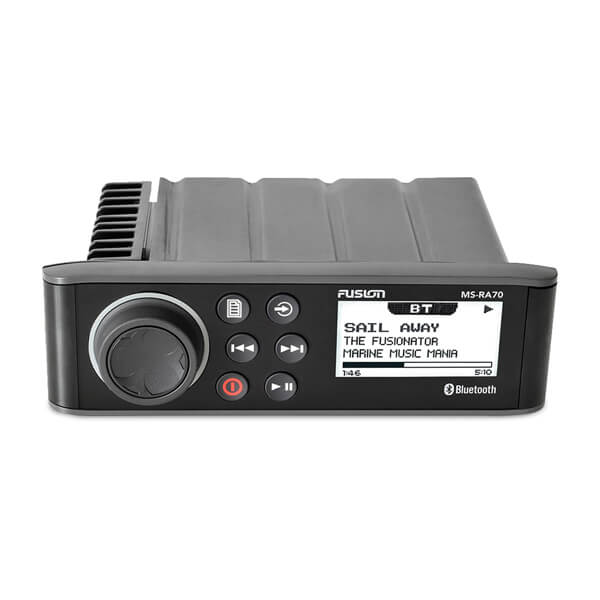

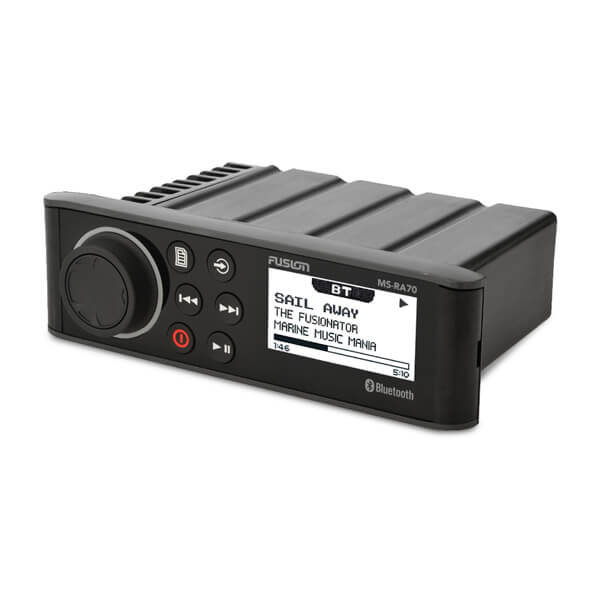

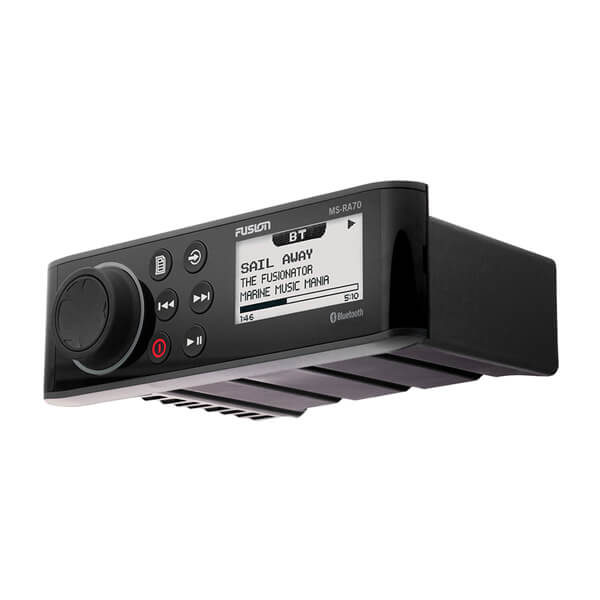

MS-RA70 Marine Stereo with BLUETOOTH®

MS-RA70 Marine Stereo with BLUETOOTH®

Part Number 010-01516-01

ONLINE STORE

MS-RA70 Marine Stereo with BLUETOOTH® MS-RA70 Marine Stereo with BLUETOOTH® MS-RA70 Marine Stereo with BLUETOOTH® MS-RA70 Marine Stereo with BLUETOOTH® MS-RA70 Marine Stereo with BLUETOOTH®

IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the RA70 Series has an IPX7-rated water-resistant front panel to perform and last on board.

MULTIPLE MOUNTING OPTIONS

Install the RA70 Series marine stereo with a conventional flush finish, or integrate it into a glass helm for a stunning flat finish.

Enjoy a variety of source options.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features2, DAB+ radio3, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

A selection of advanced features is now available on SiriusXM2.

Enjoy entertainment control with the Fusion-Link™ App

1 Available on MS-RA70N and MS-RA70NSX via an NMEA 2000 connection
2 Available only on MS-RA70NSX
3 Available only on MS-RA70 and MS-RA70N
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the RA70 Series has an IPX7-rated water-resistant front panel to perform and last on board.

MULTIPLE MOUNTING OPTIONS

Install the RA70 Series marine stereo with a conventional flush finish, or integrate it into a glass helm for a stunning flat finish.

Enjoy a variety of source options.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features2, DAB+ radio3, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

A selection of advanced features is now available on SiriusXM2.

Enjoy entertainment control with the Fusion-Link™ App

1 Available on MS-RA70N and MS-RA70NSX via an NMEA 2000 connection
2 Available only on MS-RA70NSX
3 Available only on MS-RA70 and MS-RA70N
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

General

Physical dimensions (HxWxD) 2.36" x 7.40" x 4.87" (60 x 188 x 123.5 mm)
Weight 19.6 oz (556 g)
Water rating IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance 5.9" (150 mm)

Stereo Features

Display 128 x 64 optically bonded monochrome LCD
Built-in amplifier Class-AB
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control MS-RA70: yes (smartphone and Garmin watch)
MS-RA70N/MS-RA70NSX: yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology
ANT wireless technology
SiriusXM-ready MS-RA70NSX only (requires SiriusXM Connect vehicle tuner)
DAB+ ready MS-RA70 and MS-RA70N only; (requires DAB100A antenna module)
NRX remote compatibility MS-RA70N and MS-RA70NSX only
Multi-language interface Dutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout
Software updates USB
Warranty 1 year

Sources

Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA
MS-RA70NSX only: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only)

Connectivity

Auxiliary input One RCA input (AUX)
NMEA 2000 MS-RA70N and MS-RA70NSX only: 1 port
USB 2.0 1 port
SiriusXM satellite radio MS-RA70NSX only: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio 1 Motorola antenna connector port
Speaker 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)

All RA70 Series stereos contain:

  • DIN mounting plate
  • Four 8-gauge, self-tapping screws
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • Documentation

MS-RA70N and MS-RA70NSX also include 6 ft (2 meters) NMEA 2000® drop cable
