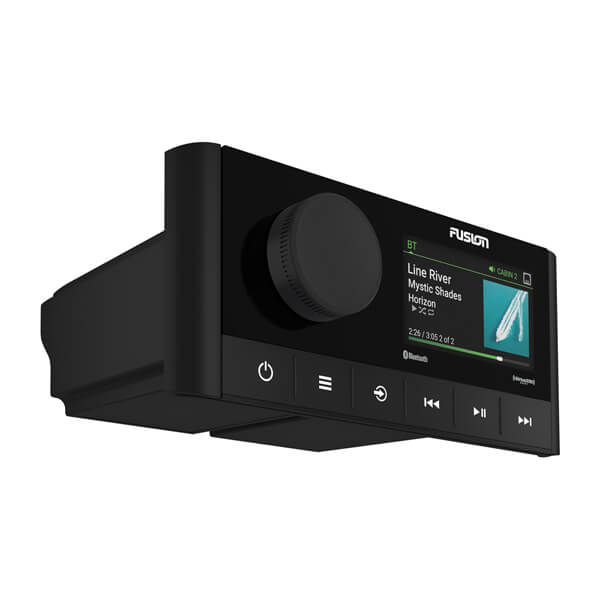

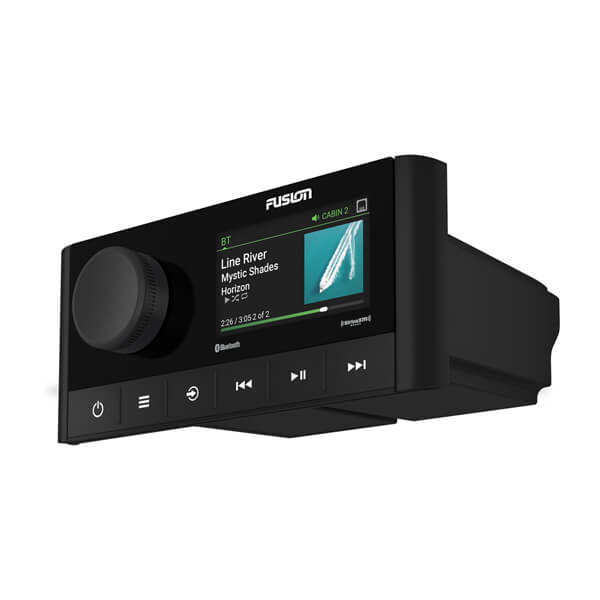

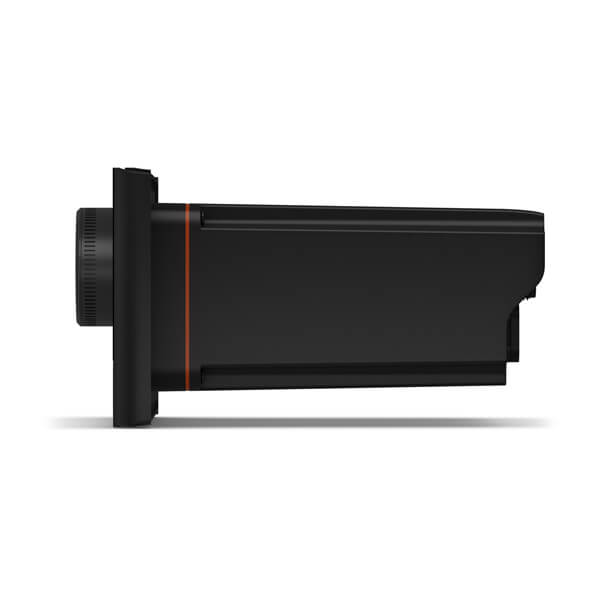

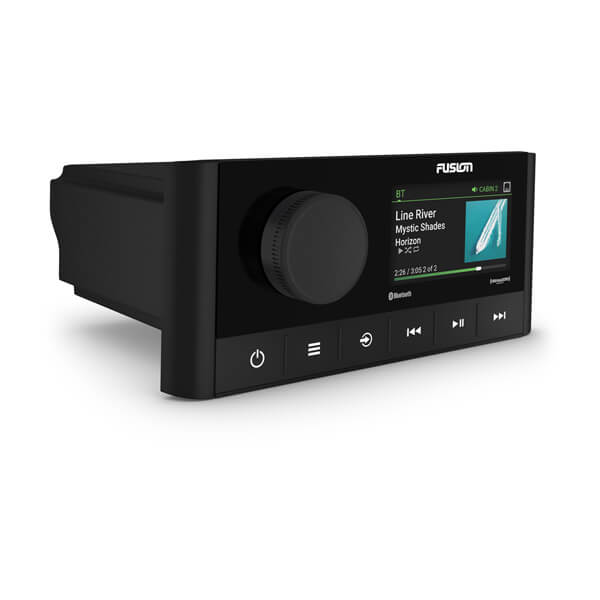

Fusion RA210 Marine Stereo

Fusion RA210 Marine Stereo

Part Number 010-02250-00

ONLINE STORE

Fusion RA210 Marine Stereo Fusion RA210 Marine Stereo Fusion RA210 Marine Stereo Fusion RA210 Marine Stereo Fusion RA210 Marine Stereo

INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

The MS-RA210 marine stereo from Fusion is a stylish addition to your boat. Incorporating some of the Apollo Series’ key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics and advanced source options.

Custom audio profiles for each zone on your boat deliver superior quality audio.

Enjoy the color album art and metadata that display information of the current track playing.

Built-in Class-D amplifier delivers higher efficiency and greater output.

Multi-Zone Technology gives you control of two separate audio zones.

Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

alt textalt text

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

Setting up your DSP profiles is made simple with the free Fusion-Link™ app1. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.

Enjoy more audio source options than ever before.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including BLUETOOTH® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.

1 Requires app on your compatible smartphone
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General

Physical dimensions (H x W x D) 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
Weight 12.4 oz (350 g)
Water rating IPX6 and IPX7 (Front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols BLUETOOTH 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9" (150 mm)

Stereo Features

Display 2.7" optically bonded color LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing yes (with preconfigured DSP profiles)
Fusion-Link™ control yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
BLUETOOTH wireless technology yes
ANT wireless technology yes
SiriusXM-ready yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready yes (requires DAB100A antenna module)
NRX remote compatibility yes
Multi-language interface Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech
Danish, Dutch, English, Finnish, French, German, Greek
Italian, Japanese, Korean, Norwegian, Polish,
Portuguese (BR/PT), Slovenian, Spanish, Swedish,
Thai, Turkish
Software updates USB
Warranty 1 year

Sources

Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /
MTP / SiriusXM-Ready (USA only, requires optional SiriusXM
Connect vehicle tuner) / DAB+ ready (available in
Europe and Australia only)

Connectivity

Auxiliary input One RCA input (AUX)
NMEA 2000 One NMEA 2000 port
USB 2.0 One USB 2.0 port
SiriusXM satellite radio One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker 4 speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out Zone 1, Zone 2 (L + R, requires external amplification)
Subwoofer out Zone 1, Zone 2 (requires external amplification)
  • Fusion MS-RA210 marine stereo
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • 2 meter (6 ft) NMEA 2000® drop cable
  • 6 ft (2 meter) NMEA 2000 drop cable
  • Documentation
