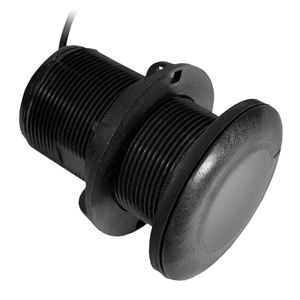

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

Part Number 010-10218-21

ONLINE STORE

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.

This 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on wood hulls.

When using with the echo™ series fishfinders, transducer adapter cable part number 010-11947-00 is required.

General

Transducer frequency77/200 kHz
Transducer power300 W
Transducer beamwidth45°/15°
Transducer maximum depth900 ft.
Transducer cable length30 ft.
Transducer depth/speed/temperatureDepth and Temperature
Transducer number of pins8-pin
Transducer supported deadrise/transom angles8°-15° degree deadrise

no data.
