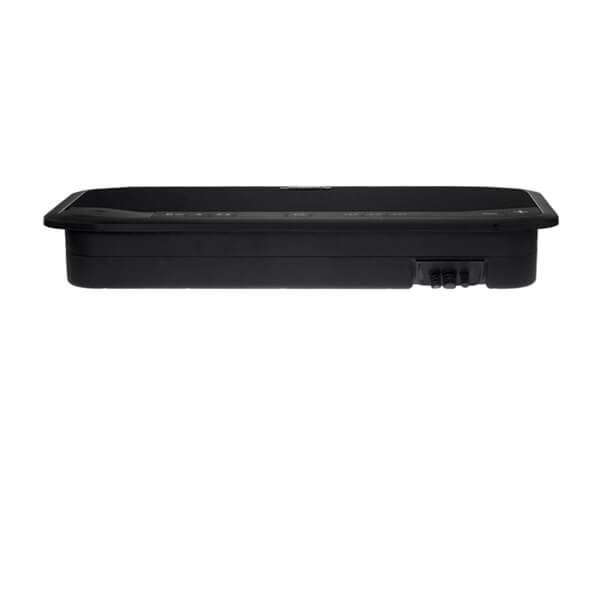

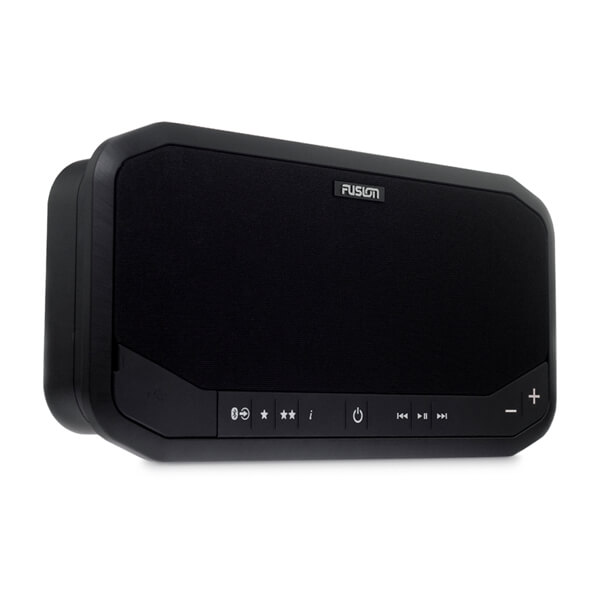

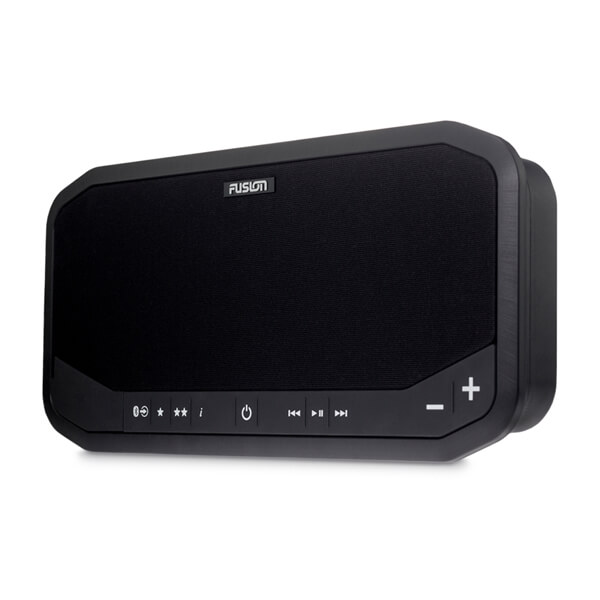

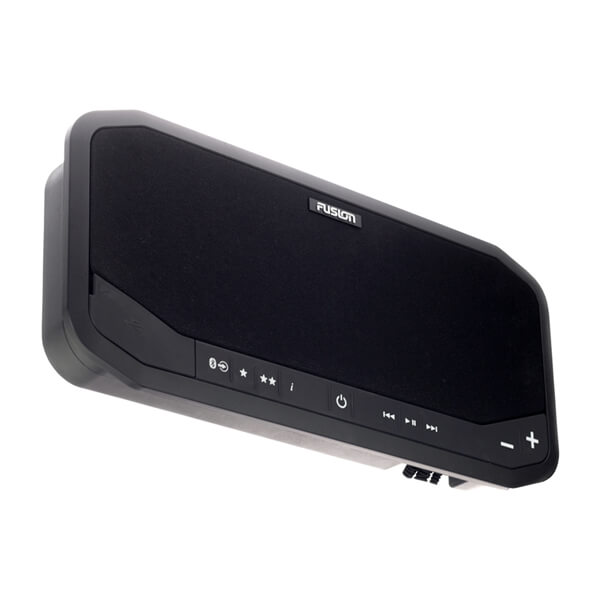

Fusion Panel-Stereo

Fusion Panel-Stereo

Part Number 010-02005-00

ONLINE STORE

Fusion Panel-Stereo Fusion Panel-Stereo Fusion Panel-Stereo Fusion Panel-Stereo Fusion Panel-Stereo

PLUG-AND-PLAY, ALL-IN-ONE SOLUTION

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.

Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.

Lorem ipsum dolor sit amet

Hi-Fi audio reproduction through preconfigured DSP.

Built-in Class-D amplifier delivers higher efficiency and greater output.

Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.

Lorem ipsum dolor sit amet

Multiple mounting options available, including flush, flat and surface mounting.

Lorem ipsum dolor sit amet

Control your music from a compatible smart device or Garmin watch.

IP65 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor is tested to a high level of protection against UV and comes with a high-grade plastic grille.

QUICK AND SIMPLE TO INSTALL

The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.

FUSION DIGITAL SIGNAL PROCESSING

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

PERFECTLY TUNED ENCLOSURE

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimized audio on board from a single unit.

Convenient and versatile.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the different source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.

SURFACE MOUNTING SPACER

You can install the Panel-Stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General

Physical dimensions (HxWxD) 6.10" x 13.54" x 1.97" (155 x 344 x 50 mm)
Weight 2.54 lb (1.15 kg)
Water rating IP65 (excluding rear connectors)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 10 A
Fuse 10 A
Bluetooth wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +9 dBm nominal
ANT 2.4 GHz @ +9 dBm nominal
Compass-safe distance 7.6' (229 mm)

Stereo Features

Built-in amplifier Class-D
Peak power 140 W
Rated power output 43 W rms x 2 @ 14.4 V input < 1% THD
Built-in Digital Signal Processing
Fusion-Link control yes (smartphone and Garmin watch)
Bluetooth wireless technology
ANT wireless technology
Language Dutch/English/French/German/Italian/Japanese/Mandarin Chinese/Spanish
Software updates USB
Warranty 1 year

Sources

Sources AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x2/AOA

Connectivity

Auxiliary input Two RCA inputs (AUX1, AUX2)
USB 2.0 1 port
AM/FM radio 1 Motorola antenna connector port
Line out 1 RCA output (AUX)
  • Fusion Panel-Stereo
  • Stereo trim
  • Six 6-gauge, self-tapping stainless steel screws
  • Power wiring harness
  • Documentation
