OnDeck Hub

OnDeck Hub

Part Number 010-02134-00

ONLINE STORE

OnDeck Hub OnDeck Hub OnDeck Hub OnDeck Hub OnDeck Hub
General
Physical dimensions without antennas 9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm)
Physical dimensions with antennas pointing up 9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm)
Physical dimensions with antennas parellel to mounting 9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm)
Weight 1.4 lbs (0.64 kg)
Power consumption 20 W max at 10 Vdc
Input voltage range From 10 to 32 Vdc
Battery life Up to 48 hours
Monitoring frequency 15 minutes
Connectivity
NMEA 2000® compatible yes
ActiveCaptain compatible yes
Cellular connectivity yes (3G/4G)
Wi-Fi® yes
Garmin Marine Network yes

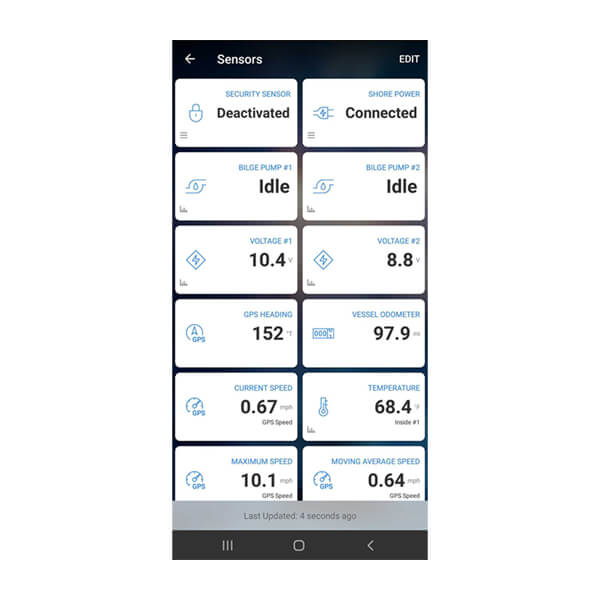

Sensors

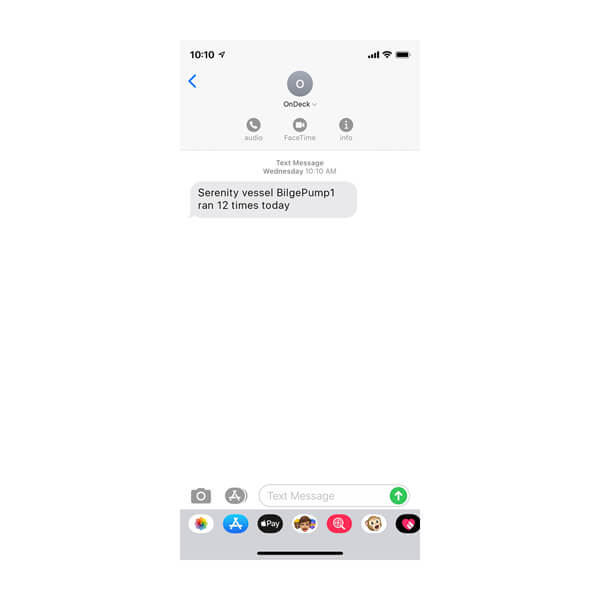

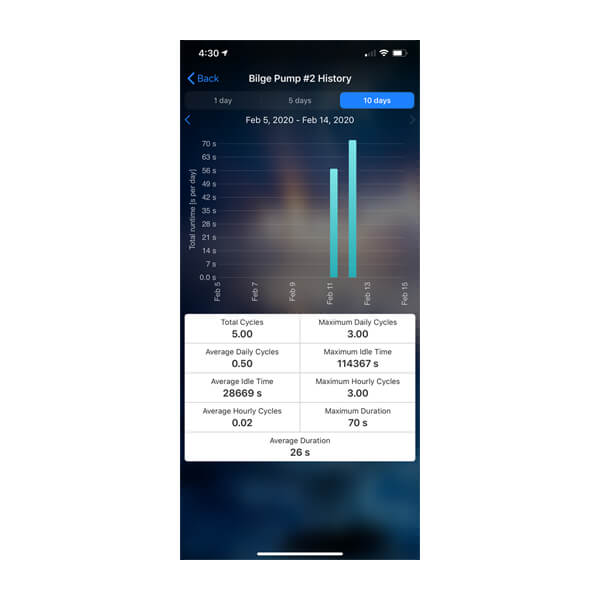

Bilge pump yes (2)
Security yes (30)
Battery voltage yes (2)
Temperature yes
Shore power yes
GPS location yes
Distance log yes
NMEA 2000 Sensors
Fluid level yes
Temperature yes
Water depth yes
Position yes
Course over ground yes
Speed over ground yes
Vessel speed yes
Wind data yes
Fuel flow rate yes
Engine hours yes
Engine warning indicators yes
DC Voltage yes

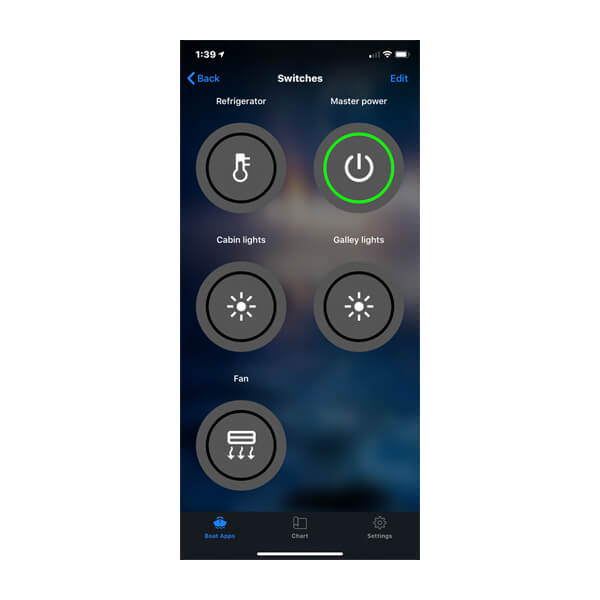

Switch Controls
Relay switch yes (5)
Alarms
Temperature yes
Geofence yes
Offline yes
Voltage yes
Shore power yes
Security sensor yes
Depth yes
Bilge pump yes
  • OnDeck Hub
  • OnDeck™ security sensor
  • OnDeck™ temperature sensor
  • OnDeck™ shore power sensor
  • OnDeck™ relay switch 12 Vdc
  • Power cable
  • In/out data cable (19-pin), sensor/relay output
  • Garmin Marine Network cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
