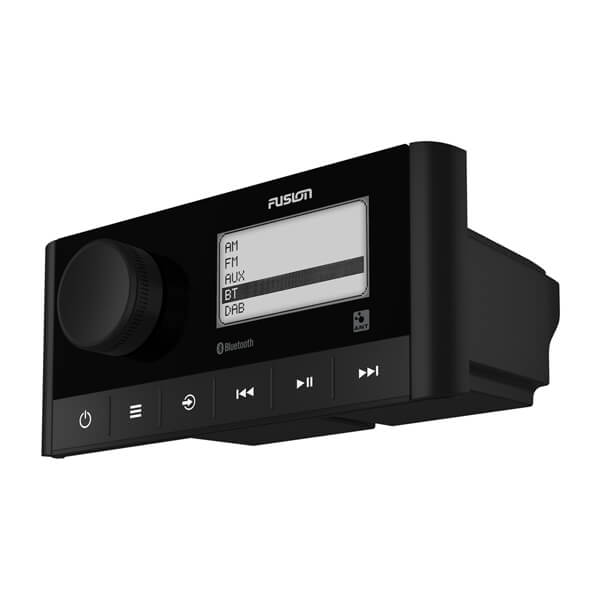

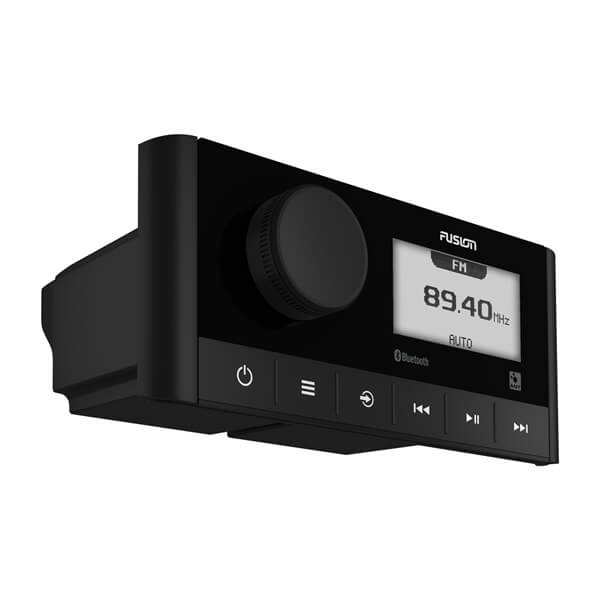

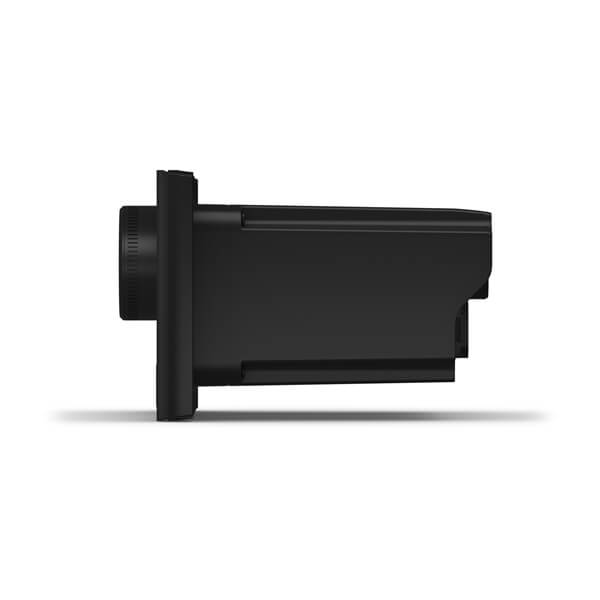

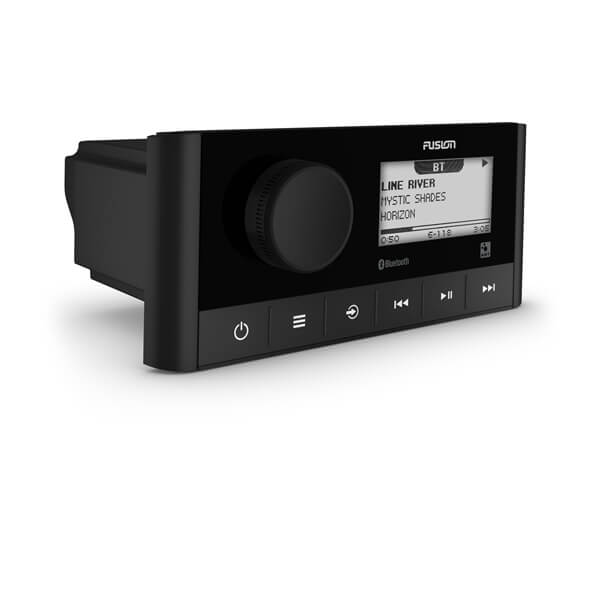

Fusion MS-RA60 Marine Stereo

Fusion MS-RA60 Marine Stereo

Part Number 010-02405-00

ONLINE STORE

Fusion MS-RA60 Marine Stereo Fusion MS-RA60 Marine Stereo Fusion MS-RA60 Marine Stereo Fusion MS-RA60 Marine Stereo Fusion MS-RA60 Marine Stereo

MODERN, COMPACT AND ECONOMICAL

The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone Technology in two zones and advanced connectivity options in a compact form factor.

Bonded LCD improves durability and protection against condensation and fogging.

Built-in Class-D amplifier delivers higher efficiency and greater output.

Enjoy convenient over-the-air software updates via BLUETOOTH technology from the Fusion-Link app1.

Multi-Zone Technology gives you control of two separate audio zones.

Control your music from your compatible smart device or Garmin watch.

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

RETROFITTABLE

The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Enjoy a variety of source options.

MULTIPLE SOURCE OPTIONS

Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.

BUILT-IN DAB TUNER

The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported. Simply connect an appropriate AM/FM antenna with no external DAB module required.

Find the right setup with our online system builder.

Learn More

1 Requires app on your compatible smartphone
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General

Physical dimensions (H x W x D) 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
Weight 11.1 oz (316 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
BLUETOOTH wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9" (150 mm)

Stereo Features

Display 2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier Class-D (minimum 4 ohm impedance)
Peak power 180 W
Rated power output (4 ohm) 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD
Fusion-Link™ control yes (with compatible Apple and Android devices)
Fusion-Link Lite control yes (with compatible Garmin watch)
Multi-Zone™ technology 2 zones
BLUETOOTH wireless technology yes
ANT wireless technology yes
DAB+ yes (DAB tuner built in)
Multi-language interface Dutch/English/French/German/Italian/Spanish
Software updates Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
Warranty 1 year

Sources

Sources AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)

Connectivity

Auxiliary input One RCA input (AUX)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 amplified zones)
RCA pre-out (left, right and subwoofer) 1 zone (requires external amplification)
Line out Zone 1: L + R (requires external amplification)
Subwoofer out Zone 1 (requires external amplification)
  • Fusion MS-RA60 marine stereo
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • Documentation
