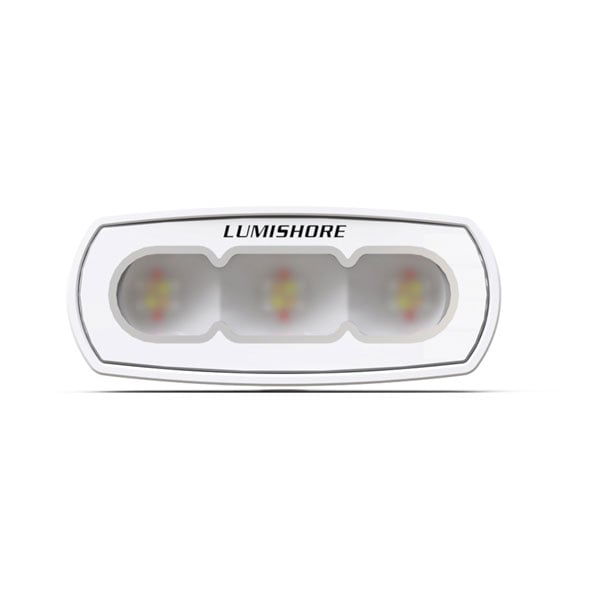

Lumishore LUX Flood Light

CRBGW Flood Light in 4" White

Part Number 010-04459-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

HIGH-INTENSITY, FULL-COLOR FLOOD LIGHTING

Ideal for deck, cockpit or general security lighting, our powerful flood lights can fill a wide area with bright illumination in any color. Their unique design combines warm and cold white as well as red, green and blue light in a single unit. The 70- to 90-degree ultrawide-reaching oval beam angle provides full coverage and custom diffusion optics for consistent and smooth beam colors.

FULL-COLOR CRGBW LIGHTING

70- TO 90-DEGREE WIDE-BEAM ANGLE

1,050 OR 7,500 FIXTURE LUMENS

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH¹

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

¹The momentary switch requires a LUX Control Module; the MFD, Lumishore display or smart device requires the EOS-LUX Command Center

General
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	3 x 3 W Red 3 x 3 W Green 3 x 3 W Blue 3 x 3 W White 3 x 3 W Warm White
Fixture lumens	4": 1,050 18": 7,500
Beam angle	70°-90° oval beam
Number of lights per LUX light control module	16 maximum
Electrical installation	3 wire
Operating voltage	10.5-31 VDC
Current consumption 12 V (max)	4": 1.7 A 18": 9.2 A
Current consumption 24 V (max)	4": 0.9 A 18": 4.6 A
Average power draw	4": 22 W 18": 110 W
Construction	Powder coated aluminum body with frosted lens
Water and dust rating	IP68
Control Options
Momentary switch	yes (via LUX Control Module)
EOS-LUX Command Center
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Mounting Dimensions
Dimensions (width)	4" (flush fit): 4.89" (124 mm) 4": 4.21" (107 mm) 18": 15.5" (394 mm)
Dimensions (depth)	4" (flush fit): 1.76" (45 mm) 4": 2.2" (55.8 mm) 18": 2.68" (68 mm)
Dimensions (height)	4" (flush fit): 1.89" (48 mm) 4": 1.77" (45 mm) 18": 2.08" (53 mm)
Mechanical installation	4" (flush fit): Marine sealant and screws (not supplied) 4"/18": Stainless steel fixing brackets (supplied)

LUX flood light (based on selection)
Flood light mounting bracket(s) (based on selection)¹

¹Flood light mounting bracket is not included with flush fit selection.
