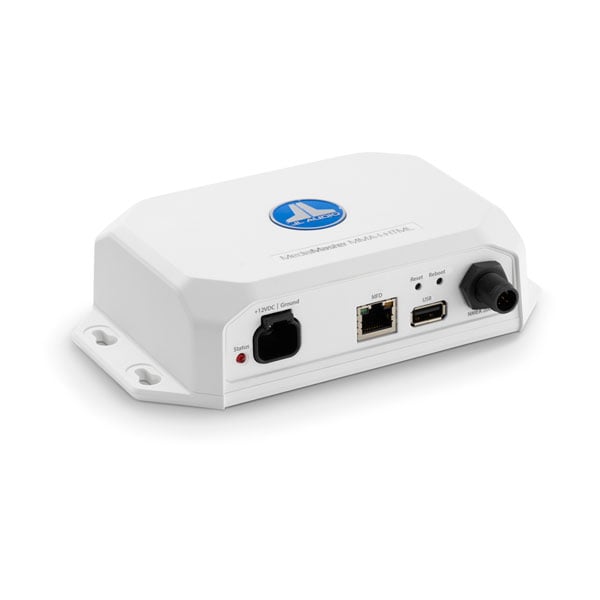

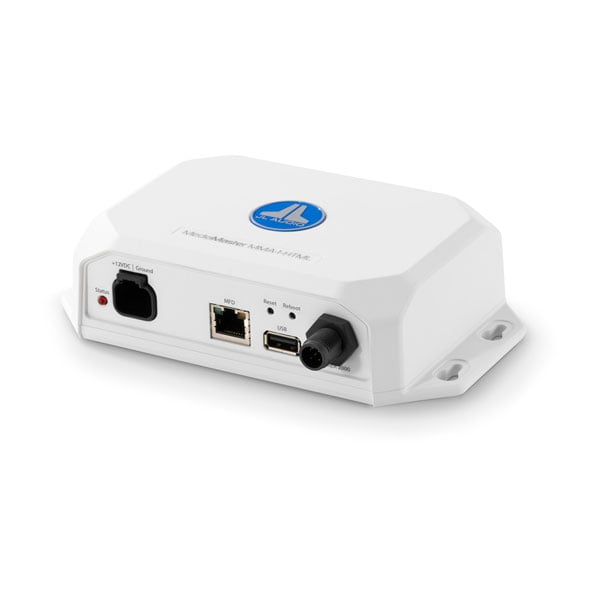

The JL Audio MFD Data Interface for MediaMaster source units is interface engineered to generate MediaMaster source unit themed UI navigation and controls directly onto your vessel's compatible Multi-function Display (MFD). Exclusively designed for use with compatible MediaMaster source units, the MFD Data Interface allows you to pilot your boat and control your MediaMaster source unit seamlessly, via your helm's MFD display.

Outfitted with a NMEA 2000 network Micro-C connector (LEN 1), the MFD Data Interface interacts with a vessel's NMEA 2000 network using applicable cables and connectors for the NMEA 2000 network (not included). The MFD Data Interface automatically recognizes the host MediaMaster source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster source unit user experience.

General
Physical dimensions (Height)	1.73" (44 mm)
Physical dimensions (Width)	6.77" (172 mm)
Physical dimensions (Depth)	3.98" (101 mm)
Operating temperature range	-4° F to +149° F (-20° C to +65° C)
Current draw (max)	150 mA
Warranty	3 years
Networking
NMEA 2000 LEN	1 (50 mA)
Electrical Features
Power Input	10-15.9 VDC
Stereo Features
Multi-language interface	English/French/German/Italian/Spanish
Software updates	USB
Sources
Supported sources	Derived from host source unit
Supported audio formats (USB)	Derived from host source unit

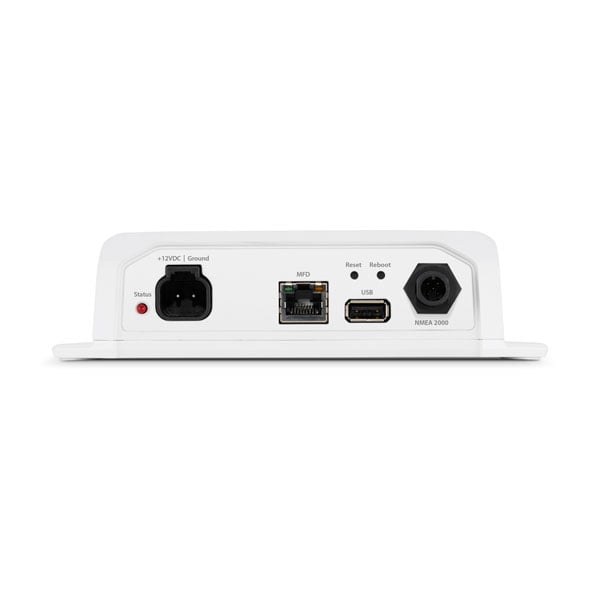

Connections
Ethernet ports	1
NMEA 2000 ports	1 (Micro-C connector)
USB 2.0 ports	1 (Software update only)

NMEA 2000^® network MFD data interface module
Wiring harness (1A fuse)
Four stainless steel mounting screws
