JL Audio Max Audio Measurement System (MAX-KIT)

JL Audio Max Audio Measurement System (MAX-KIT)

Part Number 010-03028-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

TUNE, TEST, TROUBLESHOOT AND ANALYZE ANY AUDIO SYSTEM

MAX is a professional-grade, dual fast Fourier transform (FFT) measurement system with 5 microphones. It is ideal for general audio system measurements, system tuning with DSP, troubleshooting and testing equipment, and solving OEM integration challenges. MAX has many applications in home, car, marine and professional audio.

STREAMLINES TUNING OF AUDIO DSP PRODUCTS IN REAL-WORLD CONDITIONS

5-MICROPHONE AVERAGING GIVES YOU HELPFUL REAL-WORLD MEASUREMENTS

ACCURACY IS ON PAR WITH PROFESSIONAL TEST SYSTEMS COSTING MUCH MORE

PRECISELY ANALYZE THE 3 PILLARS OF AUDIO: LEVEL, FREQUENCY AND TIME

TOGETHER, MAX AND TüN 4 SOFTWARE CAN ANALYZE ANY AUDIO SYSTEM WITH FULL DETAIL, ALL IN REAL TIME

BUILT-IN USB HUB SIMPLIFIES CONNECTION TO COMPUTER AND DSP AMPLIFIERS

WHAT YOU'LL LOVE

DUAL FFT ANALYSIS

Conduct dual FFT measurements of up to 5 simultaneous transfer functions with precise displays of magnitude (frequency response), phase, impulse response (delay) and coherence (noise immunity).

5-MICROPHONE ARRAY

Up to 5 included microphones can be multiplexed to conduct single FFT measurements of level and frequency response (real-time audio (RTA) and spectrograph).

WIDE RANGE OF INPUTS

Put it all together with the inputs you need — including up to 5 microphones plus high-level analog signals (up to 80 volts), low-level analog signals (up to 7 volts) and optical digital signals (S/PDIF).

MULTIPLE SIGNAL OUTPUTS

Built-in digital-to-analog conversion feeds analog line level outputs and headphone outputs plus optical digital output (S/PDIF).

SIMPLE VXi/MVi AMP SETUP

For VXi and MVi amplifier users, the MAX audio measurement system offers full integration of amp DSP controls to streamline setup of measurements with one computer and one software application: TüN 4.

IT FITS IN A KIT

All hardware, mounting accessories and cables fit in a lockable, water-resistant hard case. An optional probe kit for impedance and electrical measurement is sold separately.

ACCURACY, FLEXIBILITY, SIMPLICITY

TECH HIGHLIGHTS

AUTOMATIC TRUE DELAY

Set VXi/MVi channel delays in a flash — far more accurately than any other method.

AUTOSET EQUALIZATION (EQ)

To simplify EQ, this feature sets VXi/MVi parametric EQs to your selected target in seconds.

EASY MANUAL EQs

Perform precise manual EQ adjustments with real-time visual feedback.

BUILT-IN SIGNAL TEST GENERATOR

MAX provides an input signal for testing — plus WAV file playback capability.

HOME AUDIO/THEATER

Test room modes for subwoofer placements, and adjust crossover and phase controls.

CAR AUDIO APPLICATIONS

Mic array and TüN software work to streamline tuning of car audio DSP products.

BOAT AND RV APPLICATIONS

Evaluate individual or multiple zones in an audio installation for frequency response and level.

CAPTURE AUDIO DATA

RTA measurements can be captured for later viewing and data analysis.

General
Power supply	12 VDC nominal (10-15 VDC range)

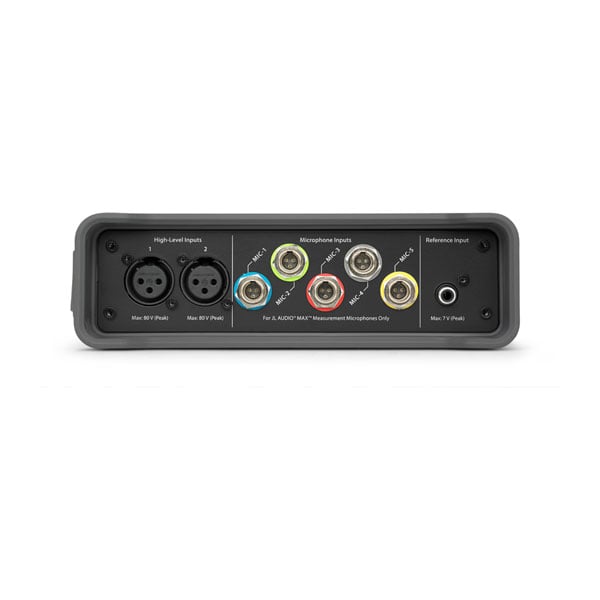

Inputs
High-level Inputs 1 & 2
Pin configuration	XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-Signal -)
Input impedance	73 kΩ
Flatness ± 0.1 dB	5 Hz-15 kHz @ 44.1 kSR, 48 kSR, 96 kSR
Flatness ± 0.5 dB	5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR
Crosstalk, 5 Hz-20 kHz	≤ – 95 dB
Crosstalk @ 1 kHz	≤ – 110 dB
THD @ 1 kHz	≤ 0.0012%
THD+N, 5 Hz-20 kHz	≤ 0.035%
ADC headroom	-4.84 dBFS @ 80 VAC peak (56.57 Vrms sine) (differentially driven)
Maximum DC offset level	50 VDC, Pin 2 or 3 to GND, Pin 1 - DC
Unbalanced Mic Inputs (1, 2, 3, 4, 5)
Pin configuration	Mini-XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-2 VDC)
Input impedance	2.2 kΩ
Flatness ± 0.5 dB	10 Hz-10 kHz @ 44.1 kSR, 48 kSR, 96 kSR
Crosstalk, 5 Hz-20 kHz	≤ – 115 dB
Crosstalk @ 1 kHz	≤ – 120 dB
THD @ 1 kHz	≤ 0.0009%
THD+N, 5 Hz-20 kHz	≤ 0.01%
ADC headroom	-39.5 dBFS @ 94 dB SPL
RCA Balanced (Reference Input)
Pin configuration	RCA Female (Center Pin-Signal +, Shell-Signal –)
Input impedance	~ 100 kΩ
Flatness ± 0.1 dB	5 Hz-15 kHz @ 44.1 kSR, 48 kSR, 96 kSR
Flatness ± 0.5 dB	5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR
THD @ 1 kHz	≤ 0.005%
THD+N, 5 Hz-20 kHz	≤ 0.035%
S/PDIF Digital Input (Optical)
Connector	TOSLINK
Sample rates	8 kHz-216 kHz
Bit depths	8-24 bit PCM
Outputs
DAC Output
Connectors	Unbalanced RCA
Output impedance	200 Ω
Output Level at 0 dBFS (RMS)	4 V
Flatness ± 0.1 dB	5 Hz-10 kHz @ 44.1 kSR, 48 kSR, 96 kSR
Flatness ± 1 dB	5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR
Crosstalk, 5 Hz-20 kHz	≤ – 95 dB
Crosstalk @ 1 kHz	≤ – 110 dB
THD @ 1 kHz	~ 0.0014%
THD+N, 5 Hz-20 kHz	≤ 0.032%
S/PDIF Digital Output (Optical)
Connector	TOSLINK
Sample rates	44.1 kHz-96 kHz
Bit depths	24 bit PCM
Output level	Defined by Signal Generator level control

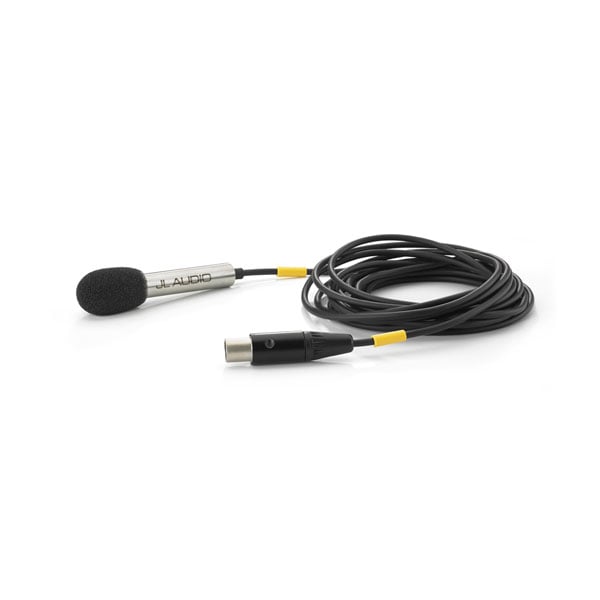

Microphones
Size, type	1/4", pre-polarized electret (omnidirectional)
Flatness ± 1 dB	50 Hz-10 kHz @ 44.1k SR, 48k SR, 96k SR
Flatness ± 2 dB	5 Hz to ≥ 20 kHz @ 44.1k SR, 48k SR, 96k SR
Maximum input SPL	130 dB SPL @ 1 kHz with ≤ 2% THD

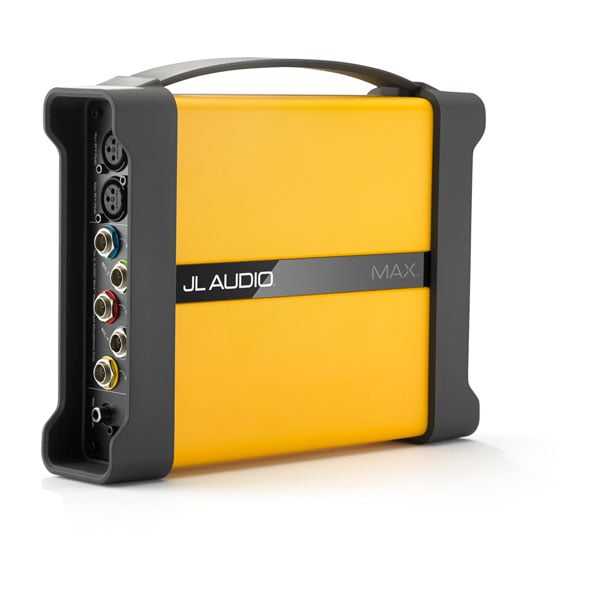

MAX^™ hardware interface
Five measurement microphones with removable windscreens

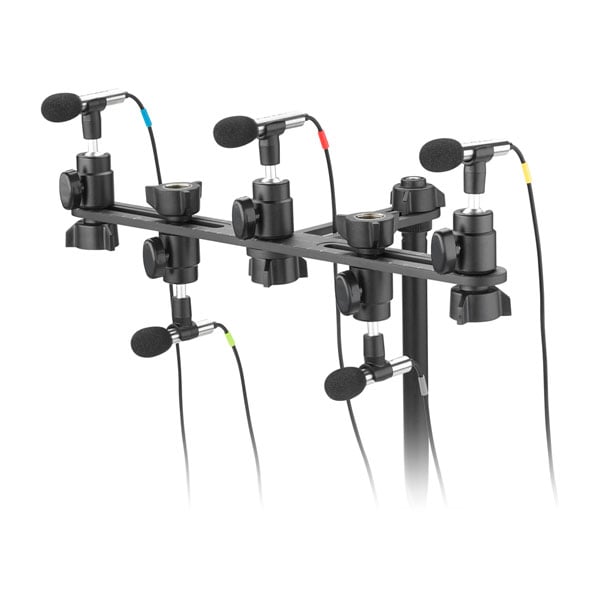

Multi-mic fixture with mounting accessories
USB A/B cable
12 V DC power cable
AC power adapter
Soft accessory storage bag
Waterproof hard case
