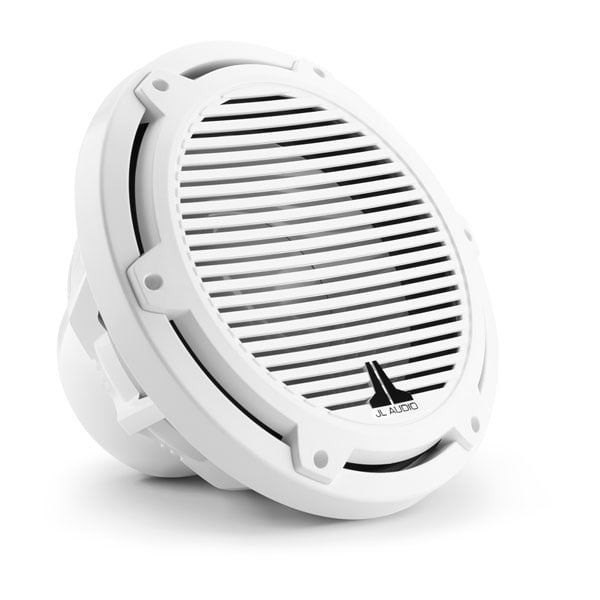

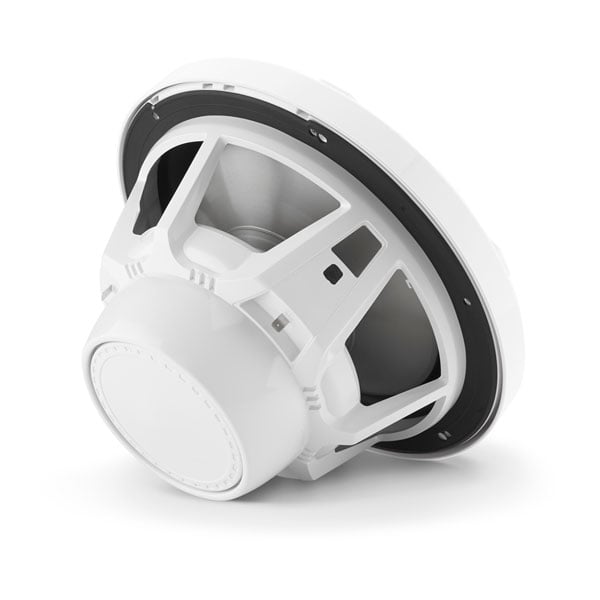

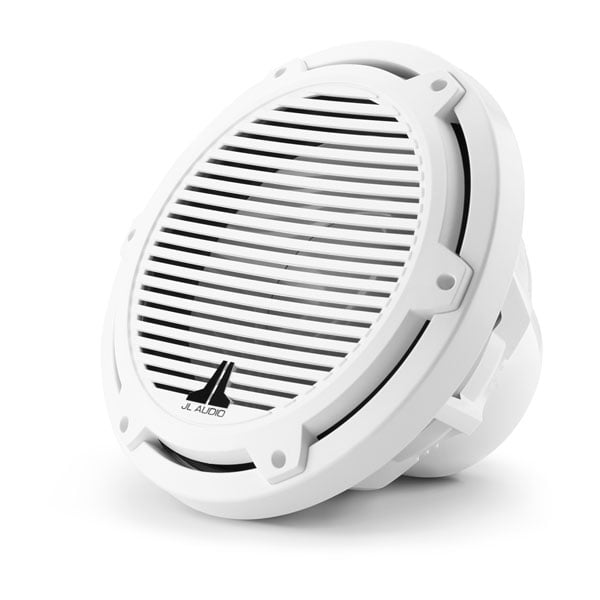

JL Audio M3 Marine Subwoofer

10" with White Classic Grille (M3-10IB-C-Gw-4)

Part Number 010-03070-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

PLAY BETTER

M3 marine subwoofers are purpose-built to deliver incredible sub-bass performance in moderate power applications.

PRODUCES AMAZING BASS IN OPEN-AIR APPLICATIONS

ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE

MODELS AVAILABLE WITH BUILT-IN RGB LED LIGHTING

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

OUTSTANDING SOUND QUALITY

This is bass that will impress you, not only with its sheer level, but even more with its smoothness, balance and precision.

INFINITE BAFFLE DESIGN

M3 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind it.

POWER VERSATILITY

These subwoofers are designed to benefit from operation with quality amplification .

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

BUILT-IN RGB LED LIGHTING

Offered on sport models, multicolor LEDs produce a vibrant accent glow.

General
Sizes	10"
Color	White Classic, White Sport or Gray Sport
Physical dimensions (Diameter)	10.75" (273 mm)
Physical dimensions (Depth)	10" (Classic): 6.50" (165 mm) 10" (Sport): 6.58" (203 mm)
Weight	12.6 lbs (5.7 kg)
Speaker type	Infinite Baffle Subwoofer
Continuous power handling (RMS)	175 W
Sensitivity (SPL @ 1 W/1 m)	87.23 dB
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	50-175 W
LED lighting	yes - RGB (selected Sport models only)
LED supply voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	108 mA
Cone material	Injection-molded, mica-filled polypropylene
Warranty	3 years
Connections
Speaker connections	Spade Connectors
LED connection	Flying Lead with 4-conductor 22 AWG wire (selected Sport models only)
Mounting Dimensions
Mounting depth clearance	5" (127 mm)
Frontal grille protrusion	10" (Classic): 1.50" (38 mm) 10" (Sport): 1.58" (40 mm)
Mounting hole	8.875" (225 mm)
Bolt hole circle	9.71" (247 mm)
Driver displacement	0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS)	41.84 Hz
Electrical “Q” (Qes)	0.806
Mechanical “Q” (Qms)	11.751
Total “Q” (Qts)	0.754
Equivalent Compliance (Vas)	1.29 cu ft (36.53 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	0.42" (10.7 mm)
Reference Efficiency (NO)	0.34%
Effective piston area (SD)	50.68 in² (0.0327 m²)
DC resistance (RE)	3.957 Ω
Sealed Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	2.00 cu ft (56.6 L)
External width (W)	18" (457 mm)
External height (H)	18" (457 mm)
External depth (D)	14.5" (368 mm)
-3 dB cutoff frequency (F3)	42.9 Hz
System resonance (FC)	53.66 Hz
System Q at resonance (QTC)	0.967
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.

One marine subwoofer
One grille
Six stainless steel mounting screws
Six stainless steel washers
Logo badges (sport models only)
