GPSMAP 1523xsv

Part Number 010-03855-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

WIDEN YOUR HORIZONS

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING “FLOATING DISPLAY” CONFIGURATIONS

CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM^™ INTEGRATIONS

EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY

NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+^™ CHARTS ON SELECT MODELS

SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES

MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE¹

Gain a panoramic perspective.

SLEEK MODERN DESIGN

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

BRIGHT AND CLEAR OPTICS

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.

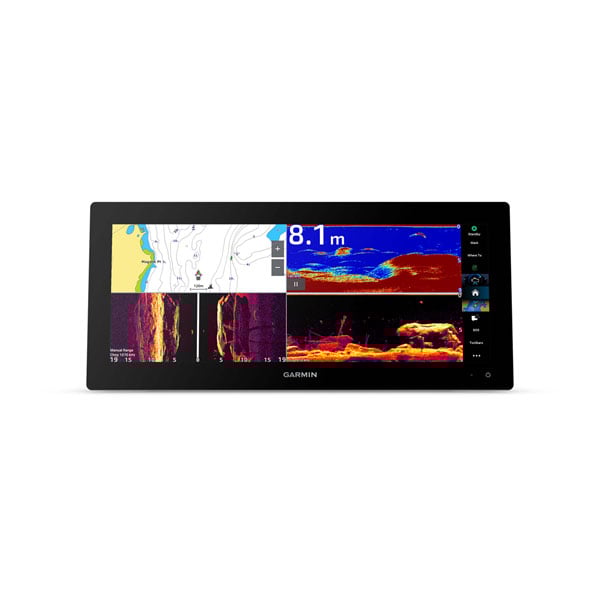

SPLIT TO FIT

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

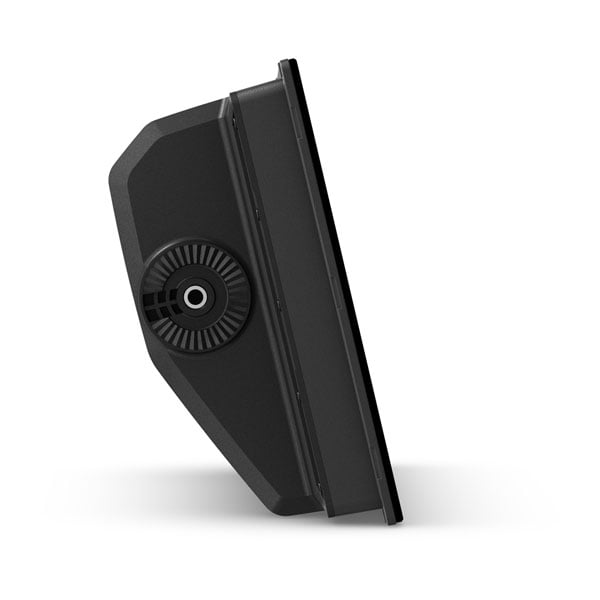

TWO MOUNTING OPTIONS

A bail-mount option with inset knobs and a bracket supports unique “floating display” installations, while a rear-mount option is provided for secure flush- and flat-mount helm solutions.

See the world below.

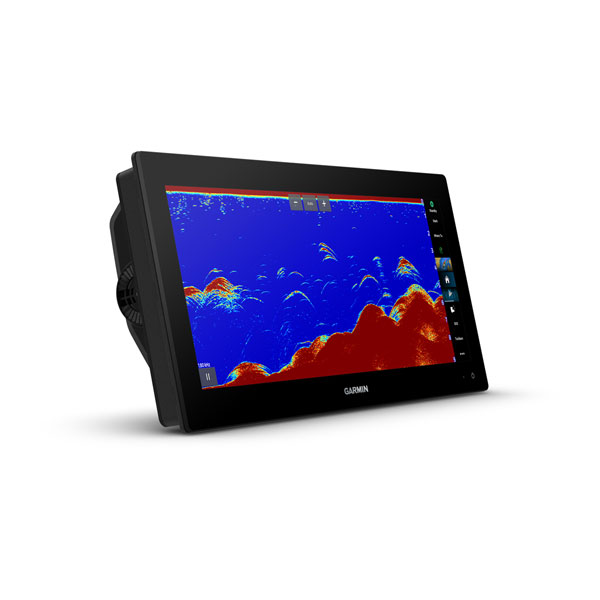

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü and SideVü scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).

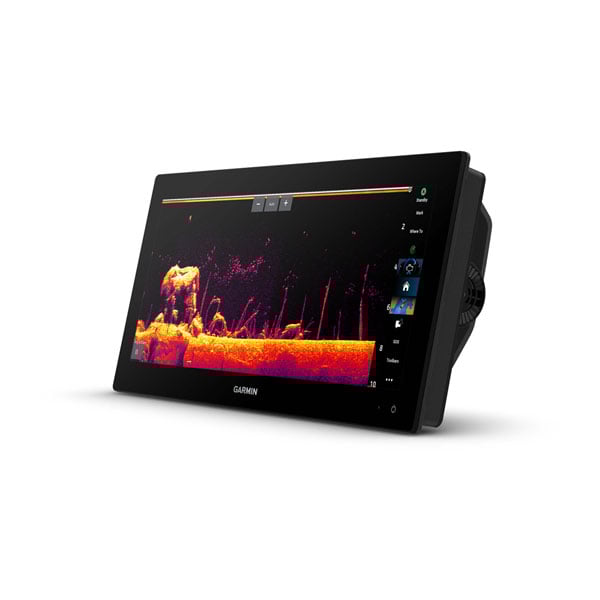

LIVE SONAR SUPPORT

Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.

Made for your helm.

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology² and a 1-year subscription for downloadable daily updates and more on select models.

OPTIONAL CHARTS AND MAPS

Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+ subscription, featuring downloadable high-resolution relief shading , satellite imagery, sonar imagery and more.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications (when paired with your smartphone), software updates, Helm app, Garmin Quickdraw Community data and more¹.

INTEGRATED ANT TECHNOLOGY

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

ENGINE CONNECTIVITY

You can connect your chartplotter to different engines , including select Yamaha and Mercury engines.

ONEHELM FEATURE

This feature brings together all of the operations and capabilities of EmpirBus digital switching and other third-party devices on one screen.

SEND INREACH DEVICE MESSAGES

Pair your inReach satellite communicator³ to your chartplotter, and type custom messages by using your MFD’s on-screen keyboard. Access your contact list, or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

Connect with additional boat control options.

POWER-POLE SHALLOW WATER ANCHOR

By networking the GPSMAP 15x3 chartplotter with your Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁴ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and end-of-route anchoring. Spend more time fishing, less time positioning.

TROLLING MOTOR INTEGRATION

Get support and integration for your Force series trolling motor (sold separately) to gain more control while you fish.

¹Requires ActiveCaptain app on your smartphone paired to your chartplotter

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

³Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

⁴Integration of these features requires purchase of a C-Monster® GATEWAY through Power-Pole

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Purchase New Charts

General
Dimension	15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)
Weight	7.2 lbs (3.26kg)
Water rating	IPX7
Touchscreen
Display Type	Ultrawide display, IPS
Display Size	13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)
Display Resolution	1920 x 720 pixels
Mounting Options	Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Polarized Support
Maps & Memory
Accepts Data Cards	2 microSD™ cards (back of device)
Compatible with Garmin SD card reader	yes (USB card reader)
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS	yes (with external GPS antenna)
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support
Chartplotter features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible	yes
Supports voice commands	yes (with external accessory)
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support
Electrical Features
Power Input	10 to 32 Vdc
Typical current draw at 12 Vdc	2.44 A
Maximum current draw at 12 Vdc	4.21 A
Maximum power usage at 10 Vdc	56.93 W
Sonar Features
Displays sonar
Power output	1 kW
Traditional sonar (dual frequency/beam)
ClearVü
SideVü
Panoptix™ sonar
LiveScope
Connections
NMEA 2000® ports	1
NMEA 0183 Input (Rx) Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 (BNC composite)
J1939 ports	1
Garmin Marine Network Ports	2
12-pin transducer ports	1
USB ports
BLUETOOTH® pairing	yes (BLE)
Garmin Wi-Fi network (local connection)

GPSMAP 1523xsv ultrawide chartplotter
microSD^™ card preinstalled
Power cable
Thin flush mount kit with gasket
Protective cover
8-pin transducer to 12-pin sounder adapter cable
2 m backbone/drop cable and T-connector for NMEA 2000^® Network
Documentation
