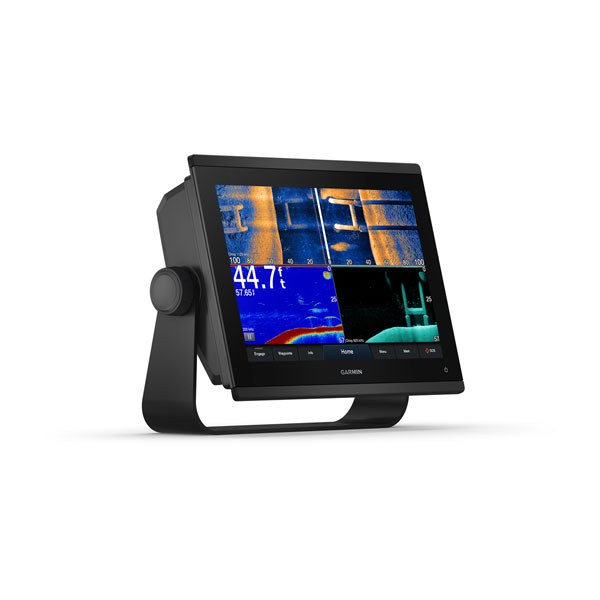

GPSMAP 1223xsv

GPSMAP 1223xsv

Part Number 010-02367-02

ONLINE STORE

GPSMAP 1223xsv GPSMAP 1223xsv GPSMAP 1223xsv GPSMAP 1223xsv GPSMAP 1223xsv

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 12” chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with OneHelm™ digital switching.

Easily build your marine system using the best of network connectivity.

Navigate any waters with preloaded mapping and coastal charts.

See below your boat with built-in sonar capabilities.

Manage your marine experience from nearly anywhere1.

See the world below.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 1223xsv also supports 1 kW CHIRP traditional sonar capabilities.

PANOPTIX™ SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

Navigate with ease.

FAST, SHARP, SMART

With its ultrasleek design, vivid sonar color palette and high-resolution 12” in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

OPTIONAL BLUECHART® G3 VISION® CHARTS

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.

Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw™ Community data and more4.

INTEGRATED ANT® TECHNOLOGY

Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

ENGINE CONNECTIVITY

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

ONEHELM FEATURE

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

Manage your marine experience using the free ActiveCaptain app

Learn More

1 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 743xsv
2 Sold separately
3 Auto Guidance is for planning purposes only and does not replace safe navigation operations
4 When paired with your compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
HERE
New Chart Guarantee
ClearVu
NMEA 2000 Compatible

General

Dimension12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
Touchscreen
Display Size10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display Resolution1280 x 800 pixels
Display TypeWXGA
Weight

6.6 lbs (3.0 kg)

Waterproof

IPX7

Mounting OptionsBail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)

Maps & Memory

Navigationigation Accepts Data Cards

2 microSD cards (back of unit)

Waypoints

5000

Track points50,000
Tracks50 saved tracks
Navigation Routes100

Sensors

Has built-in receiver
Receiver

10 Hz

NMEA2000 Compatible
NMEA0183 Compatible
GPS
GLONASS
Galileo
Supports WAAS

Built-in Maps

Built-in Auto Guidance
BlueChart (coastal)
LakeVu (inland)
(Sounder) Tide tables

Optional Map Support

BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
(Sounder) TOPO
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features

Smart Mode Compatible
AIS
DSC
Supports Fusion Lync Compatible Radio
GSD Black Box Sonar Support
GCV Black Box Sonar Support
BlueChart Mobile Planning Compatible

yes

GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support

Sonar Features & Specifications

Displays sonar
Traditional sonar (dual frequency/beam)
ClearVü
(Sounder) SideVü
Panoptix™ sonar
LiveScope

Connections

NMEA 2000 ports1
Connections NMEA0183 Input Ports

1

NMEA 0183 input (Tx) ports1
Video input ports

1 (BNC composite); 1 HDMI (HDCP compliant)

Video output ports

1 HDMI

J1939 ports1
Connections Garmin Marine Network Ports

2

12-pin transducer ports1
USB ports
BNC external GPS antenna port
(Sounder) BLUETOOTH®
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

Electrical Features

Power Input10 to 32 Vdc
Typical current draw at 12 Vdc1.68 A
Maximum current draw at 12 Vdc3.56 A
Maximum power usage at 10 Vdc43.0W
  • GPSMAP 1223xsv chartplotter
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

With 18 HD+ Radar

Above contents plus:

  • GMR 18 HD+ radome
  • Mounting hardware kit
  • Power cable (15 m)
  • Network cable (15 m)
  • Installation instructions
  • Mounting template
