GPSMAP® 1222

GPSMAP® 1222

Part Number 010-01741-00

ONLINE STORE

GPSMAP® 1222 GPSMAP® 1222 GPSMAP® 1222 GPSMAP® 1222

12-inch Chartplotter Is All-in-1 Solution

  • 12-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
  • Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Engine Connectivity

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

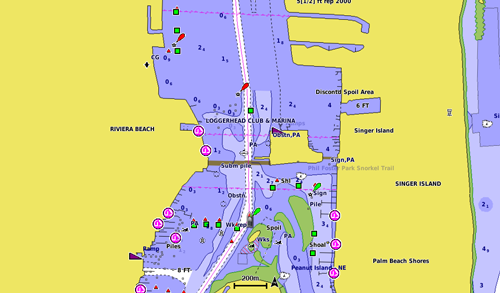

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.

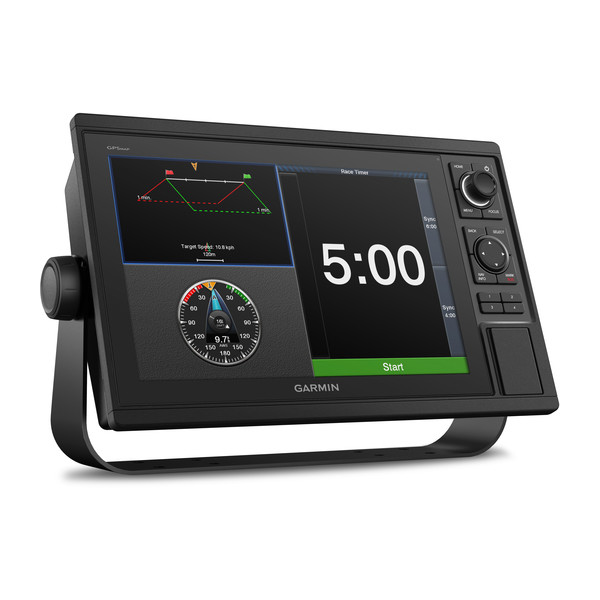

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General

Dimension14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
Touchscreen
Display Size10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display Resolution1280 x 800 pixels
Display TypeWXGA, NP
Weight

5.2 lbs (2.34 kg)

Waterproof

IPX7

Mounting OptionsBail or flush

Maps & Memory

Navigationigation Accepts Data Cards

2 SD™ cards

Waypoints

5000

Track points50,000
Tracks50 saved tracks
Navigation Routes100

Sensors

Has built-in receiver
Receiver

10 Hz

NMEA2000 Compatible
NMEA0183 Compatible
GPS
GLONASS
Supports WAAS

Built-in Maps

(Sounder) Tide tables

Optional Map Support

BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
(Sounder) TOPO
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features

Smart Mode Compatible
AIS
DSC
Supports Fusion Lync Compatible Radio
GSD Black Box Sonar Support
GCV Black Box Sonar Support
BlueChart Mobile Planning Compatible

yes

GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features

Sonar Features & Specifications

Displays sonar
Traditional sonar (dual frequency/beam)Yes (with external black box, sold separately)
ClearVüYes (with external black box, sold separately)
(Sounder) SideVüYes (with external black box, sold separately)
Panoptix™ sonar
LiveScope

Connections

NMEA 2000 ports1
Connections NMEA0183 Input Ports

1

NMEA 0183 input (Tx) ports1
Video input ports

1 (BNC composite)

Connections Garmin Marine Network Ports

2

(Sounder) BLUETOOTH®
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

Electrical Features

Power Input10 to 32 Vdc
Typical current draw at 12 Vdc2.2 A
Maximum current draw at 12 Vdc2.9 A
Maximum power usage at 10 Vdc34.8W
  • GPSMAP 1222 chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
