GPS 24xd HVS

GPS 24xd HVS

Part Number 010-02316-00

ONLINE STORE

EXPLORE COASTAL WATERS

The GPS 24xd HVS position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.

Navigate in more locations with expanded GNSS support.

Get high-sensitivity tracking with fast GPS update rate.

Accurately pinpoint your heading — regardless of speed.

It’s water-resistant (IPX7) to withstand the elements.

Install it easily with multiple mounting options.

The antenna is compatible with NMEA 0183 devices.

More accurate data — for more confident navigation.

MULTI-BAND GNSS

Multi-band GNSS provides precise location accuracy1 to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots.

MAGNETIC HEADING

The magnetic heading sensor provides accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speeds.

HIGH-SENSITIVITY GPS

Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.

EXPANDED GNSS SUPPORT

GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo2, GLONASS and BeiDou2) to more accurately track in challenging conditions than GPS alone.

MULTI-SBAS COMPATIBLE

Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

MOUNTING OPTIONS

Installation is easy with under-deck, pole and surface-mount options.

1 1 < 1 metre CEP, < 3 metres 95%
2 Supported when available
  • Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
  • Weight: 7.1 oz (201 g)
  • Cable length: 30 ft (9.14 m)
  • Temperature range: -22° to 176° F (-30° to 80° C)
  • Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
  • Compass-safe distance: .5" (12.7 mm)
  • Power source input: 8-32V, unregulated
  • Input current: 150 mA at 12 Vdc
  • Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%

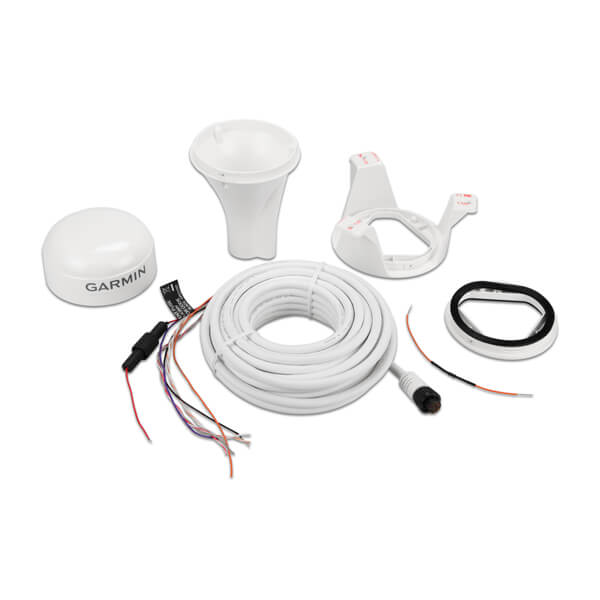

  • GPS 24xd HVS
  • Pole mount
  • Surface mount
  • Under deck mount
  • Power/data cable
  • Update rate select cable
  • Documentation
