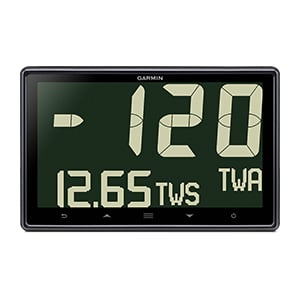

GNX™ 120 7-inch Large Format Marine Instrument

Part Number 010-01395-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

Create a High-performance Glass Mast

High-precision glass-bonded backlit LCD display avoids fogging
Bold 2-inch (51 mm) digits are the largest digits in class
Provides the data necessary to make confident decisions
Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices

Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded 7-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.

Superior Readability

Enjoy superior readability in all conditions, day and night¹. Options for white or color 2-inch (51 mm) digits — the largest in class — allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 120 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.

Customize Your Profile

Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions. Display data from Expedition software on the instrument using a Actisence NGT-1 N2K USB or GND 10 (not required). Adrena and SmartSkipper information can also be displayed using the GND 10.

¹Color backlight is not visible in daylight.

General
Dimension	181 x 115 x 17 mm (7.12'' x 4.53'' x .67'')
Weight	380 g (13.4 oz)
Waterproof	IPX7
Display Type	Inverted LCD, monochrome
Display Size	150 x 83 mm (6'' x 3.27'')
Mounting Options	Flush
Glass bonded display	yes
Temperature range	From 5° to 158°F (from -15° to 70°C)
Electrical Features
Power Consumption	0.36 W (day); 0.4 W (night)
Instrument Features
Auto-on	yes
User Profiles

Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)

GNX 120
Trim piece snap cover
Protective cover
Flush mount gasket and hardware
NMEA 2000® T-connector
NMEA 2000 drop cable
Documentation
