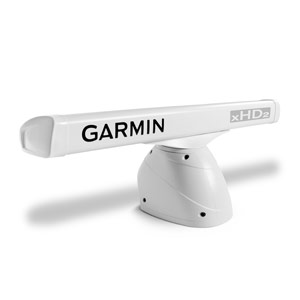

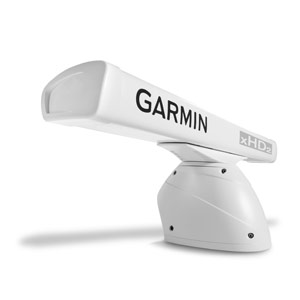

4’ OPEN-ARRAY RADAR WITH 4 KW OF POWER
This high-definition open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited or no-visibility conditions — especially on yachts and sport fishing boats under 40’.
Serious seafarers like you need serious range — up to 72 nautical miles.
See targets in incredible detail, even at a distance.
Easily see what’s close and far away with dual-range radar.
Don’t waste time fussing with complex settings. This radar is easy to install.
Say goodbye to noise pollution. This radar rotates quietly.
This open-array radar delivers 4-kW transmit power and clear echo definition at all ranges. It has rotation speeds of 24 and 48 RPM with a max range scale of 72 nautical miles.
The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true color imagery enhances target separation.
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
Increase the duration of the transmit pulse, which helps maximize the energy on targets. This provides larger target size on the chartplotter.

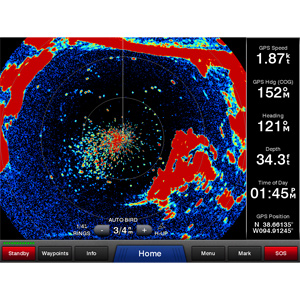

AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

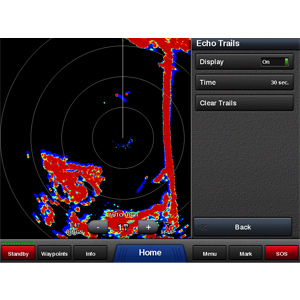

A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.

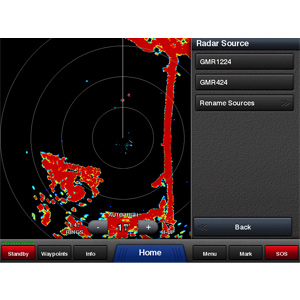

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
DYNAMIC SEA FILTER
Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKING
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.
Set the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
DUAL RANGE WITH OVERLAY
Single radar antenna is capable of providing split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.
