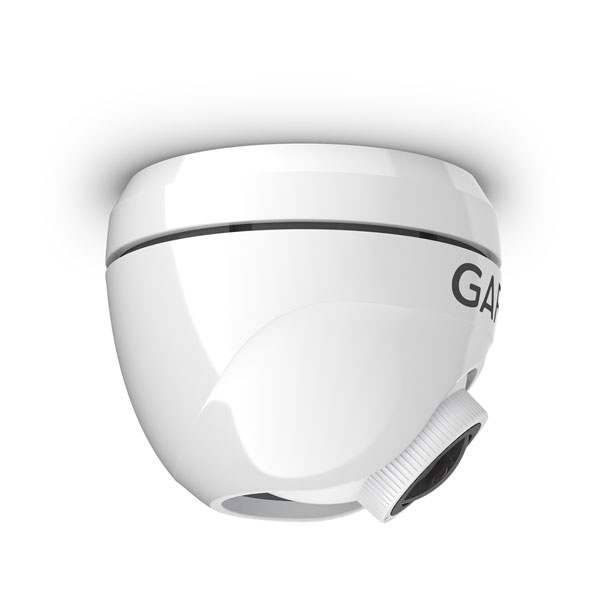

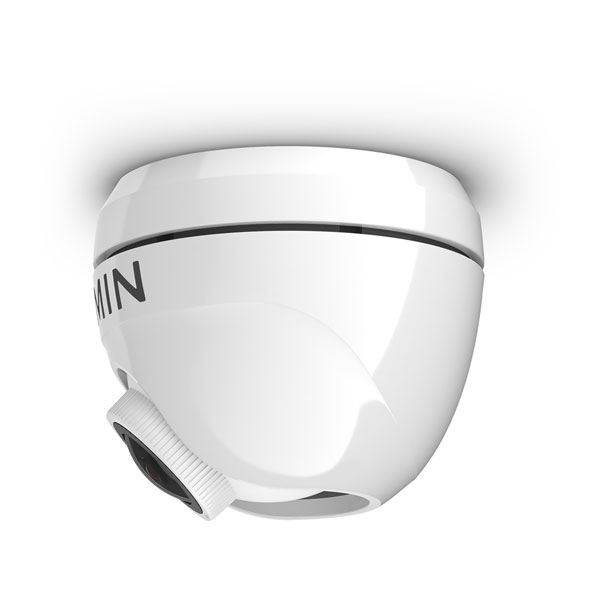

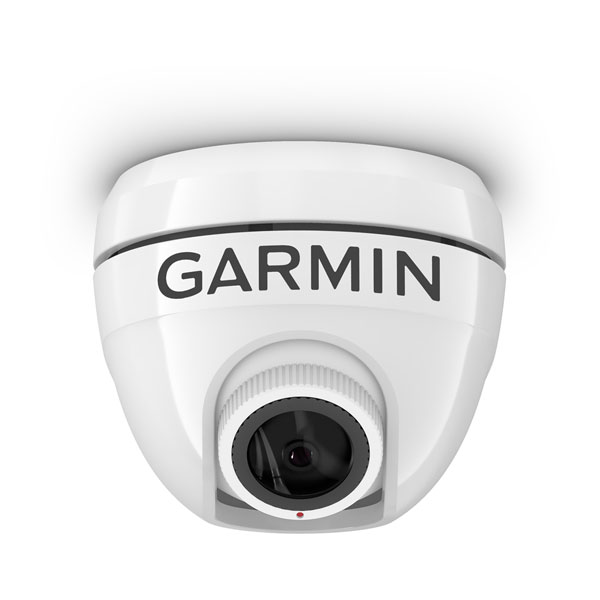

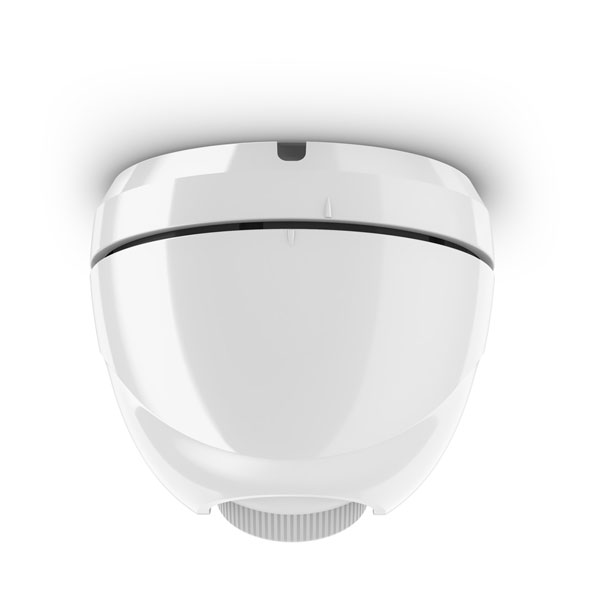

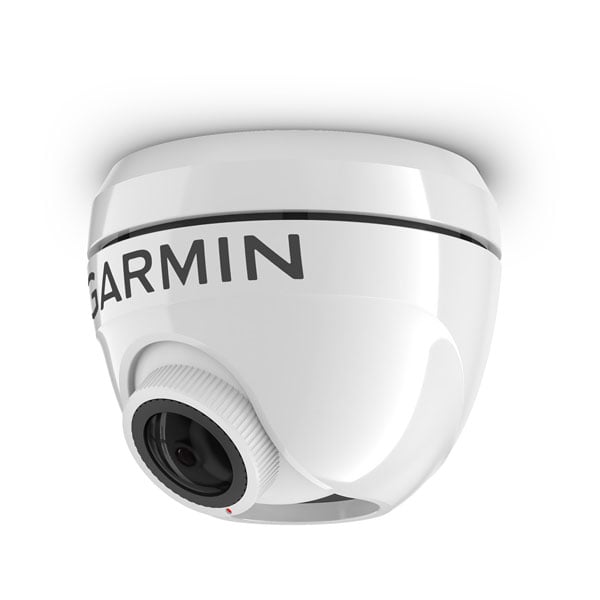

GC 245 Surface Mount Camera

White Marine Camera

Part Number 010-02892-10

BUY NOW

Feature
Specs
In The Box
Update
Accessories

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

DISTANCE MARKERS SPECIFIC TO YOUR BOAT¹ AND USER-DEFINED GUIDANCE LINES

1080P HIGH-RESOLUTION OUTPUT²

AVAILABLE IN SLEEK BLACK OR WHITE FINISH

SEE CAMERA FEEDS IN FISHEYE OR STANDARD VIEW; BIRDSEYE VIEW ALSO AVAILABLE¹

FULL INTEGRATION ON THE GARMIN MARINE NETWORK OR GARMIN BLUENET^™ NETWORK

WHAT YOU'LL LOVE

GUIDANCE LINES

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

DISTANCE MARKERS

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects.

TWO MOUNTING OPTIONS

Installation is simple, and the camera can be mounted with the dome up or down.

THREE CAMERA VIEWS

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 245 is also available with BirdsEye camera view¹.

MULTIPLE CAMERA FEEDS

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

SEE WHAT YOU WANT

Take a closer look with digital zoom, or get a different perspective with digital pan.

A chartplotter with 4K resolution and 27” display? That’s GPSMAP^® 9000.Learn More

Enjoy premium sound quality on the water with Fusion marine audio equipment.

Learn More

See what’s around you, even when your eyes can’t, with a marine radar.

Learn More

¹Professional calibration required

²1080p resolution available on select chartplotters only

Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
Weight: 3.25 oz (92 g)
Hardwire power: 12V/24V
Operating current: 300 mA at 12VDC; 200 mA at 24VDC
Power consumption: 4.5 W
Connection to chartplotter: IP
Versatile mounting options: yes (ball-up or ball-down)
Rugged housing: yes
Setup: plug-and-play
Water rating: IPX7
Video resolution: 1920 x 1080 pixels*
Video output: H.264 over GMN and BlueNet™
Images: Standard and reverse
Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
Viewing angle (H/V): 160°H/90°V
Operating temperature: -20°C to +60°C
Scanning system: progressive scan
Day/night operation: RGB mode full-time

*1080p resolution available on select chartplotters only

GC 245 surface mount camera
GVA 10 with integrated power and network cables
Network adapter cable (500 mm)
Video coaxial cable (8 m)
Mounting hardware
Documentation

GC 245 Surface Mount Camera
