Premium bass, season after season.

MADE FOR LIFE ON THE WATER, JUST LIKE YOU

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.

Crystal-clear premium sound quality is suited for the marine environment.

Water-resistant connectors provide simplified installation and superior protection.

The rigorously tested marinized design has an IP65 rating.

Available in classic 10” design as well as 10” and 12” sports style design.

CRGBW LED lights set the scene on your boat.

Built to last season after season, the Signature Series 3i subwoofers include a supported 3-year warranty.

MARINIZED CONNECTORS

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

REDESIGNED GRILLE

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

TRUE-MARINE PHILOSOPHY

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

POLYPROPYLENE CONE TECHNOLOGY

This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

LED ILLUMINATION

Cool white, red, green, blue, warm white. You can choose or mix colors to match the mood of your music.

SYSTEM INTEGRATION

These subwoofers are designed to work optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion Audio smart-device app for setup.

Choose your style, sport or classic.

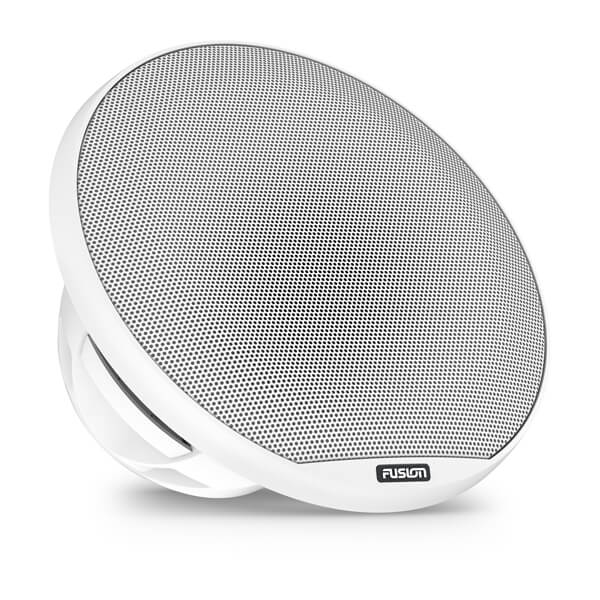

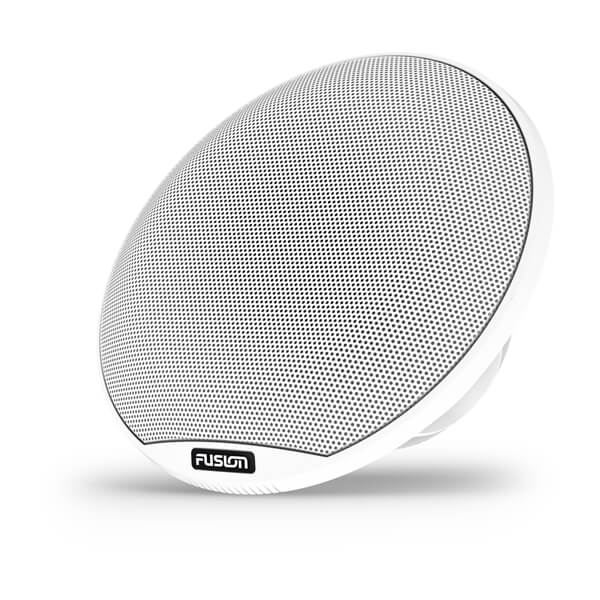

SPORTS SUBWOOFER

Available in white or gray, CRGBW LED lights are standard on 12” size and optional on 10” size.

CLASSIC WHITE SUBWOOFER

The classically styled perforated metal grille is available in 10” size.

Superior sound quality with Fusion DSP and Apollo Series.

Learn More

Experience the difference between hearing the music and feeling it with Fusion Apollo marine amplifiers.

Learn More

Amplify the atmosphere with the Fusion speaker lighting remote.

Learn More

General
Warranty	3 years
Sizes	10"/12"
Color	10": Classic White or Sports White or Sports Gray 12": Sports White or Sports Gray
Physical dimensions (Diameter)	10" (Classic/Sports): 10.83" (275 mm) 12" (Sports): 14.02" (356 mm)
Physical dimensions (Depth)	10" (Classic): 6.38" (162 mm) 10" (Sports): 6.77" (172 mm) 12" (Sports): 10" (254 mm)
Weight	10" (Classic): 11.2 lbs (5.06 kg) 10" (Sports): 11 lbs (4.98 kg) 10" (Sports) with CRGBW: 11.3 lbs (5.12 kg) 12" (Sports): 24.1 lbs (10.93 kg)
Water and dust rating	IP65
Speaker type	Subwoofer
Continuous power handling (RMS)	10": 300 W 12": 700 W
Sensitivity (SPL @ 1 W/1 m)	86 dB
Frequency response (+/- 3 dB)	10": 30 Hz-2 kHz 12": 20 Hz-2 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	10": 50-600 W 12": 200-1000 W
LED lighting	yes - CRGBW (selected Sport models only)
LED supply voltage	10.8-16 VDC (selected Sport models only)
LED Load Current @ 14.4 VDC (max)	300 mA (selected Sport models only)
Operating temperature range	32° to 122° F (0° to 50° C)
Cone material	Polypropylene Cone with Rubber Surround
Electrical Features
Compass safe distance	10": 205" (520 cm) 12": 181" (460 cm)
Networking & Connections
Speaker connections	Flying Lead with Water-resistant 2-way Connector, 5.9" (150 mm)
LED connection	Flying Lead with Water-resistant 6-way Connector, 5.9" (150 mm) (selected Sport models only)
Mounting Dimensions
Mounting diameter clearance	10": 8.78" (223 mm) 12": 12.05" (306 mm)
Mounting depth clearance	10": 5.24" (133 mm) 12": 8.15" (207 mm)
Frontal grille protrusion	10": 1.65" (42 mm) 12": 1.97" (50 mm)

General
Physical dimensions (Diameter x Depth)	12" sports subwoofer: 14.02" x 10" (356 x 254 mm) 10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm) 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm)
Weight	12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg) 10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg) 10" sports subwoofer: 11.2 lbs (5.06 kg) 10" classic subwoofer: 11 lbs (4.98 kg)
Water and dust rating	IP65
Peak power (watts)	12" subwoofer: 1400 watts 10" subwoofer: 600 watts
RMS power rating (watts)	12" subwoofer: 700 watts 10" subwoofer: 300 watts
Sensitivity (1 watt @ 1 meter)	86 dB
Magnetic structure	12" subwoofer: 114 oz 10" subwoofer: 68 oz
Frequency response	12" subwoofer: 20 Hz–2 kHz 10" subwoofer: 30 Hz–2 kHz
Nominal impedance	4 ohm
Recommended amplifier power (watts RMS)	12" subwoofer: 200–1000 watts 10" subwoofer: 50–600 watts
LED lighting	yes, CRGBW (sports style with LED models only)
LED supply voltage	10.8–16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max)	300 mA (sports style with LED models only)
Operating temperature range	32–122 degrees F (0–50 degrees C)
Voice coil diameter	12" subwoofer: 4" 10" subwoofer: 2"
Cone material	Polypropylene cone with rubber surround
Compass-safe distance	12" subwoofer: 181" (460 cm) 10" subwoofer: 205" (520 cm)
Subwoofer connection	Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
LED connection (sports style with LED models only)	Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
Warranty	3 years

Mounting Dimensions
Mounting diameter clearance	12" subwoofer: 12.05" (306 mm) 10" subwoofer: 8.78" (223 mm)
Mounting depth clearance	12" subwoofer: 8.15" (207 mm) 10" subwoofer: 5.24" (133 mm)

Optimum Enclosure Recommendations
Sealed enclosure volume (fully filled with absorption material)	12" subwoofer: 2.12 cubic ft (60 L) 10" subwoofer: 0.95 cubic ft (27 L)
Ported (vented) enclosure volume (lined with absorption material)	12" subwoofer: 8.83 cubic ft (250 L) 10" subwoofer: 1.6 cubic ft (45 L)
Port diameter	12" subwoofer: 4" (101.6 mm) 10" subwoofer: 4.1" (104 mm)
Port length	12" subwoofer: 5" (127 mm) 10" subwoofer: 10.43" (265 mm)

One subwoofer (based on what you select)
6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only)
