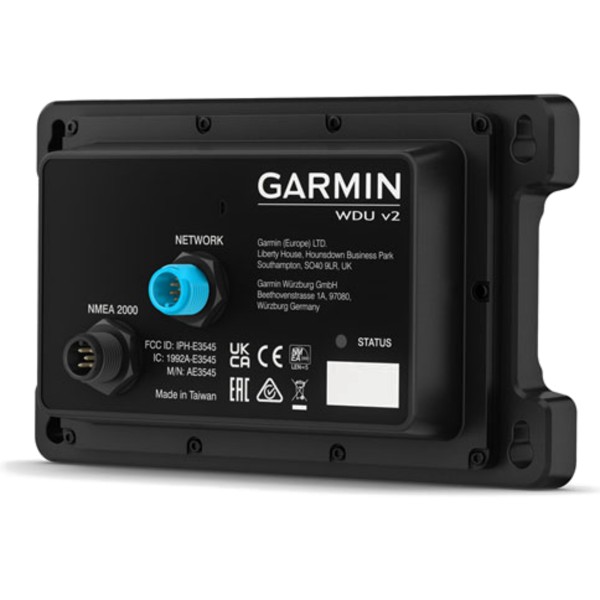

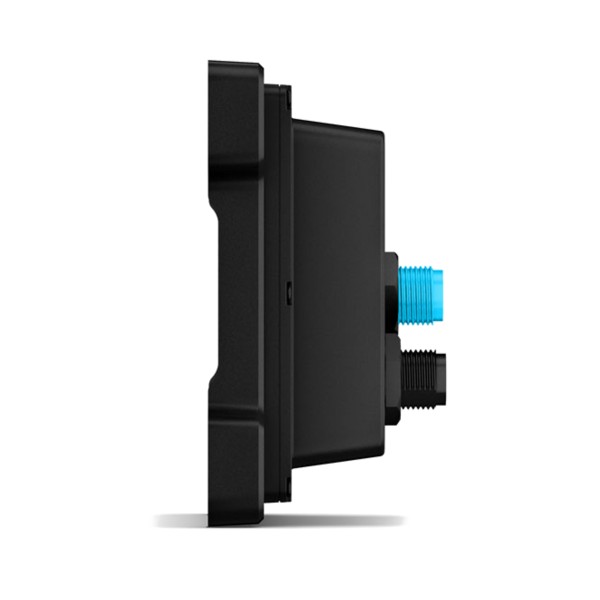

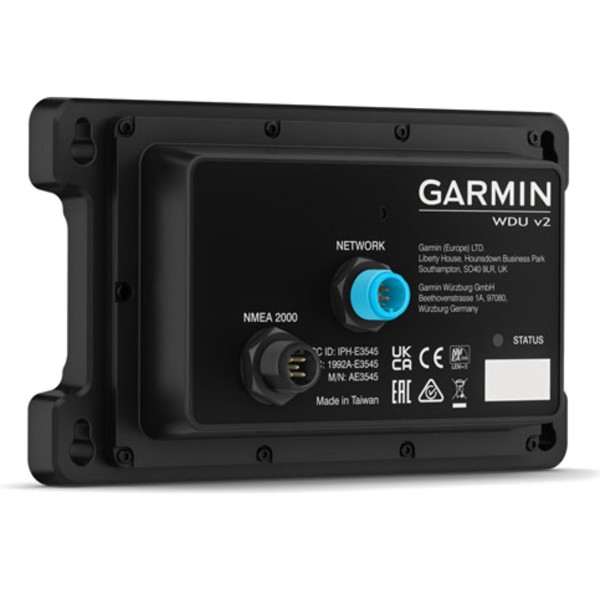

EmpirBus WDU v2

Part Number 010-02642-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

WDU is a web server unit that distributes rich, customized graphics to any HTML5-supporting device. The WDU device allows any EmpirBus system to be controlled and monitored by a user interface that’s fully optimized for its purpose and supported by our GPSMAP touchscreen MFD helm displays. HTML5 pages and apps can be graphically configured without limitations and can work seamlessly with the EmpirBus software.

The WDU device, operating via an NMEA 2000 network, works at Ethernet speeds (GMN circular connector) for HTML5 distribution. It also offers optional connectivity for wireless links via Wi-Fi technology. This adds the possibility of using compatible smartphones and tablets as control devices for the EmpirBus switching system.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General
Dimensions (WxHxD)	6.1" x 3.6" x 1.9" (15.5 x 9.2 x 4.7 cm)
Weight	7.3 oz (206 g)
Communication	NMEA 2000 network LEN-5 Garmin Marine Network Wi-Fi connectivity
Power supply	Powered via NMEA 2000
Power consumption	Max/average 195 mA @ 9 volts / 165 mA @ 9 volts
Supply voltage	Supply voltage 9-32 volts DC
Ambient temperature	-15° C to +55° C
Enclosure water rating	IPX7
Connector
NMEA 2000	Micro 5-pin M12 male
Garmin Marine Network	small connector

Wi-Fi is a registered trademark of the Wi-Fi Alliance.
