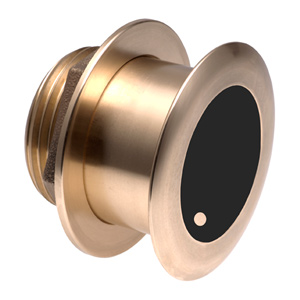

Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) - Airmar B175M

Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) - Airmar B175M

Part Number 010-11939-21

ONLINE STORE

Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) - Airmar B175M

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,700 ft; an operating frequency of 85-135 kHz; a beamwidth of 11-16 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

General

Transducer frequencyCHIRP (85-135 kHz)
Transducer power1 kW
Transducer beamwidth11°-16°
Transducer maximum depth1,500 ft.
Transducer cable length39 ft.
Transducer depth/speed/temperatureDepth and Temperature
Transducer number of pins8-pin
Transducer supported deadrise/transom angles16°-24° degree deadrise
