Garmin Boat Switch

Garmin Boat Switch

Part Number 010-02735-00

ONLINE STORE

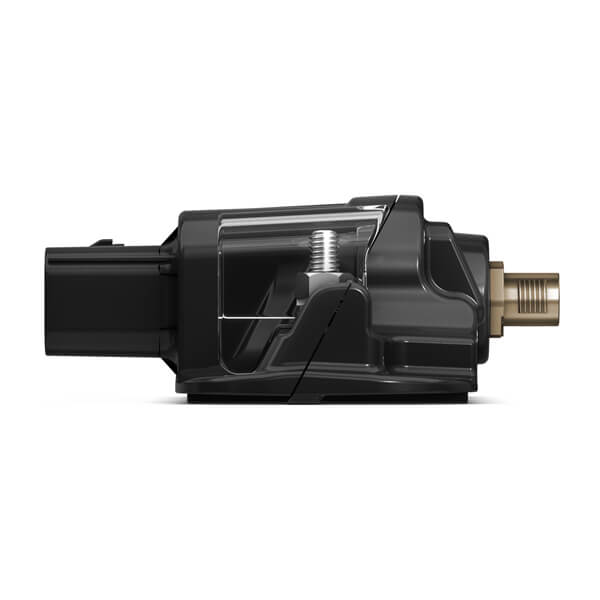

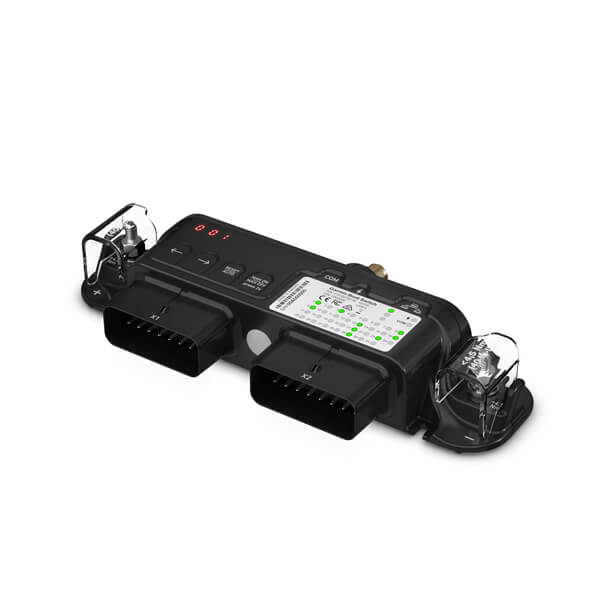

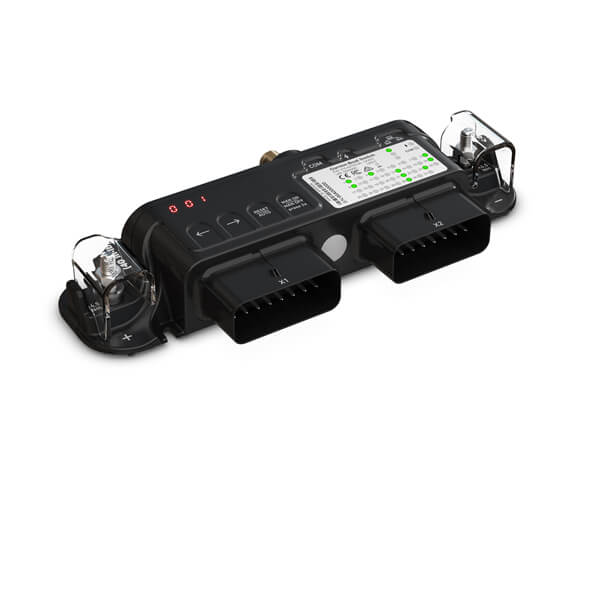

Garmin Boat Switch Garmin Boat Switch Garmin Boat Switch Garmin Boat Switch Garmin Boat Switch

QUALITY SWITCHING. SIMPLE INSTALLATION.

Get the integrated-boat experience with digital switching that allows you to operate onboard electrical functions right from your GPSMAP® or ECHOMAP chartplotter.

Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.

Operate lights, pumps, horn and more. Just tap your compatible chartplotter.

Fill up or empty out? See levels in four tanks — such as fuel, freshwater, graywater, blackwater and livewell.

See system status. Monitor battery voltage, bilge pump operation and more.

Set it up your way. Position and name switches with the easy-to-use interface.

Retrofit into your boat. It requires no special tools or configuration.

Get integrated electrical control.

ALL-IN-ONE

Replace existing two-element systems — fuse box and switches — for easier control and operation of onboard functions.

DIGITAL CONTROL

Get control and protection of up to 20 circuits via your chartplotter rather than a physical button or switch.

ON/OFF SWITCHES

The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.

DIMMABLE OUTPUTS

Press-and-hold dimmers let you set your preferred brightness on board.

MOMENTARY OUTPUTS

Control horns and more. Simply press and release for desired length of horn beep.

LIVEWELL TIMER

A built-in timer turns the pump to cycle the water to keep fish alive — and keep pumps functioning longer.

Manage your inputs, too.

MONITOR TANKS

Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, graywater, blackwater and livewell.

ADDITIONAL INPUTS

See analog voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.

UPGRADE YOUR BOAT

Retrofit into existing boats without special tools or configuration by using the included 18” flying leads and color-coded channel wires.

General

Dimensions(WxHxD) (unit only) 9.1" x 4.2" x 1.5" (230 x 106 x 38 mm)
Weight (unit only) 14.1 oz (400 g)
Ambient temperature -20° C to +55° C
Enclosure water rating IP65
Communication CAN-bus NMEA 2000® network, LEN-0

Output

High side 13 ch 10A, 7 ch 5A

Digital Input

Ground contact switch input 15
Bilge pump monitor 2

Analog Input

Volt 3 @ 0-16 V +/-1%
Resistance 2 @ 0-1500 ohm +/- 5%

Power Supply

Maximum current 50A
Power off current consumption 60mA
Supply voltage (12V) 9-16VDC

Connector

NMEA 2000® Micro 5-pin M12 male
Channels Molex MX150 L 16 circuits
Power terminal M6 bolt
  • Garmin Boat Switch

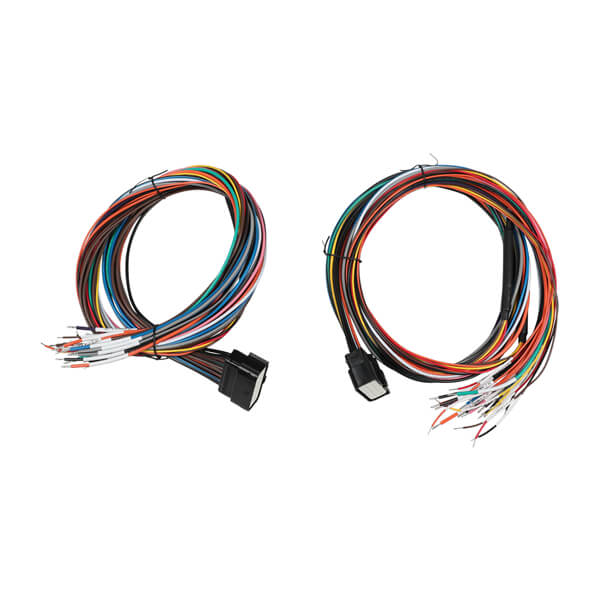

  • Garmin Boat Switch Harness X1
  • Garmin Boat Switch Harness X2
  • Installation instructions
