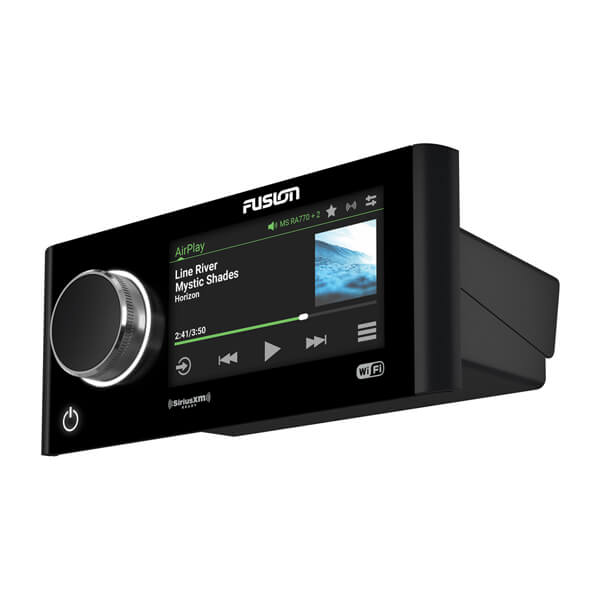

Fusion Apollo RA770

Part Number 010-01905-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

THE SUM OF AUDIO INNOVATION

The world’s first touchscreen marine stereo with the AirPlay^® 2 software feature and built-in Wi-Fi® connectivity, Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design.

Custom audio profiles for each zone on your boat to deliver superior quality audio.

Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate¹.

Experience seamless high-quality audio streaming from your music app via the AirPlay 2 feature¹ from Apple^®.

Enjoy the freedom of musical choice with PartyBus™-Network technology¹.

This 4.3” touchscreen includes play, pause and skip functions using touch display commands.

Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS

Built on the True-Marine design philosophy from Fusion , the Apollo RA770 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the brilliantly designed black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.

SPEED VS. VOLUME

With your stereo connected to an NMEA 2000 network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.

Superior sound quality in every environment.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion-Link app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.

The world's first marine stereo with Wi-Fi technology.

AUDIO STREAMING WITH WI-FI

In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi, including the convenience of AirPlay 2 and universal plug-and-play (UPnP)¹.

APOLLO RA770 WITH SRX400

Designed with Wi-Fi onboard, the Apollo RA770 and its perfect companion SRX400 can be connected without running any wires – reducing installation time, cost and complexity.

OVER-THE-AIR SOFTWARE UPDATES

Updates are now available from your compatible smartphone or device, via the free Fusion-Link app. The Apollo Series is intelligently simple and easy to keep up to date¹.

Enjoy freedom of musical choice across the entire boat.

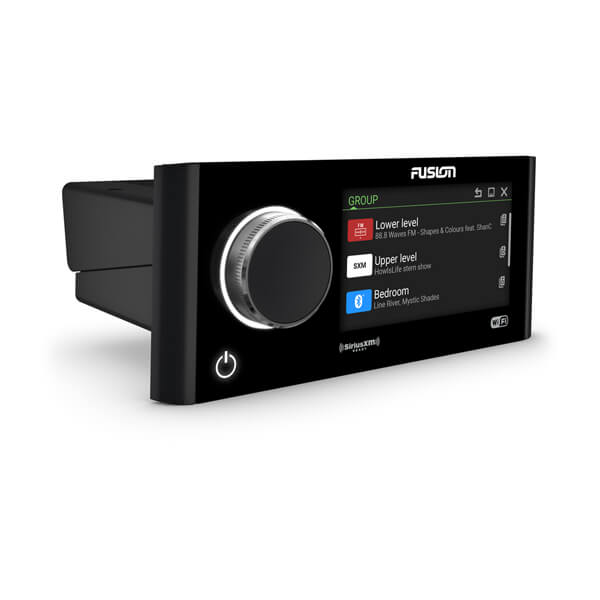

STEREO GROUPING

Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.

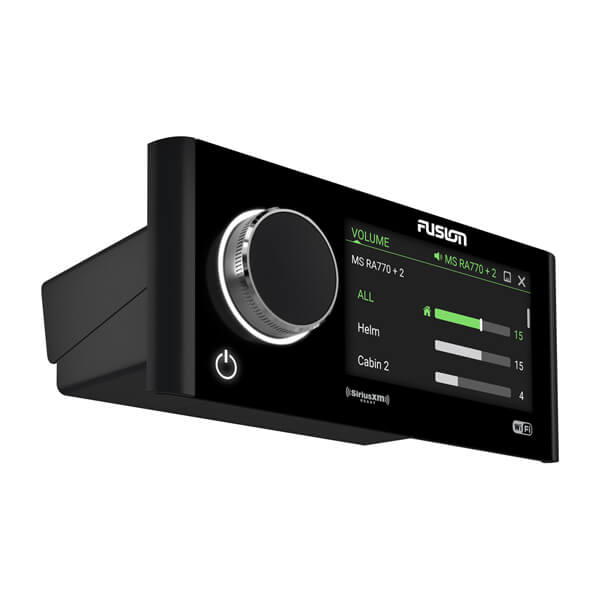

VOLUME CONTROL

Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.

POWER OPTIONS

Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.

HOME ZONE

Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.

Experience the world's first touchscreen marine stereo.

ONE-PIECE GLASS TOUCH DISPLAY

The premium glass touchscreen display is beautiful edge-to-edge. Simply tap or swipe the screen for stereo control without the hassle of trying to locate the right button.

Enjoy more audio source options than ever before.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including the AirPlay 2 feature¹, BLUETOOTH technology, UPnP¹, optical audio, advanced SiriusXM features, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.

AirPlay and Apple are trademarks of Apple Inc., registered in the U.S. and other countries. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

General
Dimension	7.56" x 3.23" x 4.7" (192 x 82 x 119.4 mm)
Weight	1.65 lbs (750 g)
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Display	4.3" capacitive touchscreen color LCD
Operating temperature	32° to 122° F (0° to 50° C)
Current (max)	15 A
Networking
NMEA 2000® LEN	1 (50 mA)
BLUETOOTH® wireless range	up to 30 ft (10 meters)
ANT® wireless range	Up to 10 ft (3 meters)
Wireless frequencies/protocols	Wi-Fi®: 2.4 GHz @ +15 dBm nominal BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4 GHz @ +4 dBm nominal
Audio
Amplifier	Class-D (2 ohm stereo-stable)
Electrical Features
Power Input	10.8 - 16 VDC
Compass safe distance	5.9" (150 mm)
Stereo Features
Peak power	280 watts
Rated power output (2 ohm)	43 watts RMS x 4 @ 14.4 V input < 10% THD
Rated power output (4 ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Wi-Fi®
Built-in Digital Signal Processing (DSP)	yes (with custom DSP profile setup using Fusion-Link™ app)
PartyBus™-network capabilities	yes (wired or wireless)
Fusion-Link™ control	yes (MFD, smart device and Garmin watch)
Multi-Zone™ technology	4 zones
BLUETOOTH® wireless technology
ANT® wireless technology
SiriusXM-ready
DAB+ ready
Optical audio input
Supports ERX wired remote
Supports NRX wired remote
Multi-language interface	Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
Software updates	Over-the-air updates via Fusion-Link™ app / USB
Warranty	3years
Sources
Supported sources	AM, FM, BLUETOOTH^®, Apple^® AirPlay® 2, digital optical input, USB audio, iPhone^®, iPod^®, AUX x2, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only)
Connections
Auxiliary inputs (RCA)	2
Optical audio inputs (Digital Optical Input SPDIF)	1
Ethernet ports	1
NMEA 2000® ports	1
USB 2.0 ports	1
SiriusXM ports	1
AM/FM ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA pre-out (left, right and subwoofer)	4 zones (requires external amplification)
Line out	4 (L + R per zone, requires external amplification)
Subwoofer out	4 (1 mono output per zone, requires external amplification)

General
Physical dimensions	Stereo dimensions (H x W x D): 3.23" x 7.56" x 4.7" (82 x 192 x 119.4 mm)
Weight	26.5 oz (750 g)
Water rating	IPX6 and IPX7 (Front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
NMEA 2000 LEN	1 (50 mA)
Bluetooth wireless range	Up to 30 ft (10 meters)
ANT wireless range	Up to 10 ft (3 meters)
Wireless frequencies/protocols	Wi-Fi 2.4 GHz @ +15 dBm nominal Bluetooth 2.4 GHz @ +10 dBm nominal ANT 2.4 GHz @ +4 dBm nominal
Compass-safe distance	5.9" (150 mm)

Stereo Features
Display	4.3" capacitive touch glass color LCD
Built-in amplifier	Class-D (2 Ohm stereo-stable)
Peak power	280 W
Rated power output (2 Ohm)	43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm)	26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities	yes (wired or wireless)
Fusion-Link™ control	yes(with MFD, smartphone and Garmin watch)
Multi-Zone™ technology	4 zones
Built-in Wi-Fi	yes
Bluetooth wireless technology	yes
ANT wireless technology	yes
SiriusXM-ready	yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready	yes (requires DAB100A antenna module)
Optical audio input	yes
NRX remote compatibility	yes
Multi-language interface	Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates	Over-the-air software updates via the Fusion-Link app, USB
Warranty	3 years

Sources
Sources	AM / FM / Bluetooth / Apple AirPlay 2 / digital optical input / USB audio / iPhone / iPod / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)

Connectivity
Auxiliary input	Two RCA inputs (AUX1, AUX2)
Optical audio input	One digital optical input (SPDIF) port
Ethernet	One Ethernet port
NMEA 2000	One NMEA 2000 port
USB 2.0	One USB 2.0 port
SiriusXM satellite radio	One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio	One Motorola antenna connector port
Speaker	4 x speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer)	4 zones (requires external amplification)
Line out	4 (1 x L + R per zone, requires external amplification)
Subwoofer out	1 x mono output (requires external amplification)

Fusion MS-RA770 marine stereo
Mounting gasket
Four 8-gauge, self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
6 ft (2 meter) NMEA 2000® drop cable
Dust cover
Documentation
