Discontinued

STRIKER™ Plus 7cv

Part Number 010-01873-04

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

7” GPS Fishfinder with Industry-leading Sonar and Quickdraw Contours Mapping Software

Built-in Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar
Built-in Garmin Quickdraw™ Contours mapping software lets you create and store maps with 1’ contours for up to 2 million acres
Built-in GPS lets you mark waypoints, create routes and view boat’s speed
Bright, sunlight-readable 7” display and intuitive user interface

The STRIKER Plus 7cv fishfinder with a bright 7” display and built-in GPS features Quickdraw Contours map drawing software, which stores up to 2 million acres of content with 1’ contours. Garmin CHIRP traditional sonar provides remarkable target separation, and Garmin CHIRP ClearVü™ scanning sonar shows nearly photographic images of what passes below your boat.

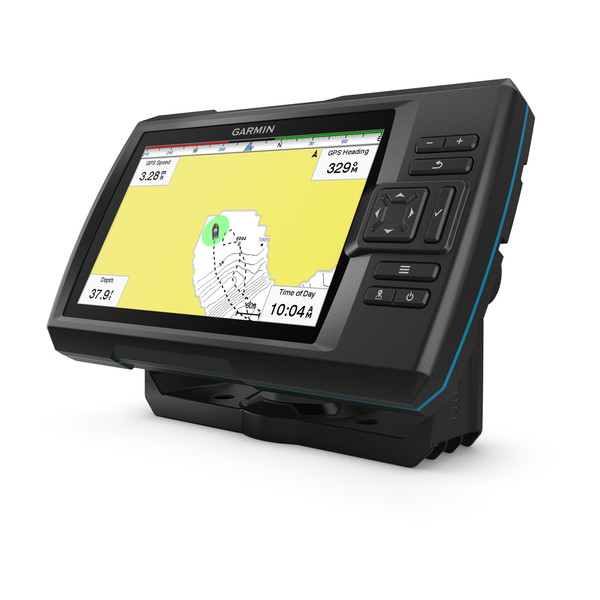

Garmin Quickdraw Contours

Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you’ve been. No special knowledge is required. STRIKER Plus 7cv can now store up to 2 million acres of your Quickdraw Contours maps with 1’ contours.

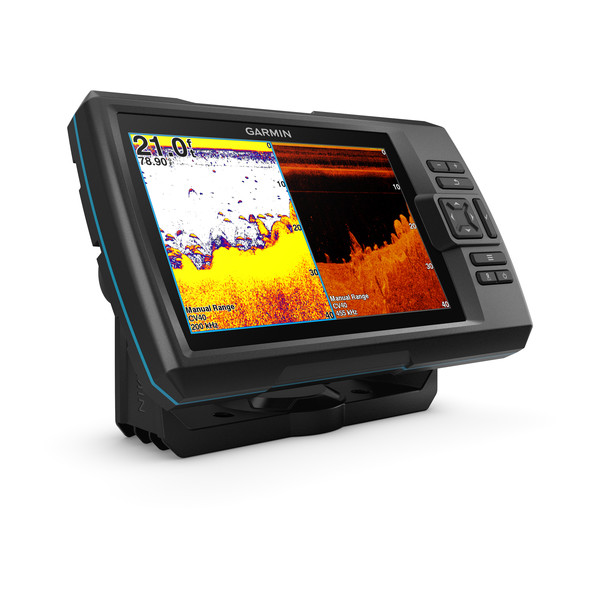

CHIRP ClearVü Clarity

The STRIKER Plus 7cv fishfinder includes Garmin CHIRP technology combined with Garmin ClearVü™ scanning sonar for a nearly photographic, wide image of what passes below your boat. You clearly see structure, submerged objects and fish. Paired with Garmin CHIRP traditional sonar for remarkable target separation, this transducer will help you catch more fish.

GPS Fishfinder

The built-in, high-sensitivity GPS finds and maintains your position anywhere you go on the water. The GPS allows you to mark waypoints for different locations. So, if the fish are biting in 1 spot, you can mark it, and return to it on your next trip. Mark docks, boat ramps and other locations on the lake, and create routes back to them for your next trip. GPS also allows STRIKER Plus 7cv to show your speed on screen, so you can be sure you’re trolling at the right speed for the lure you’re using or in wake-controlled areas.

Built for You

The STRIKER Plus 7cv fishfinder makes fishing a breeze, and it’s built to work in any environment. The bright, sunlight-readable display gives you a clear view of what is below your boat, even on the brightest days. And the larger screen gives you a better view of what is happening below the boat. The intuitive user interface makes it simple to navigate to whatever feature you need, so you are ready for anything on the water.

*STRIKER Plus (APAC SKU) does NOT support Wi-Fi function. Seeking for Wi-Fi function, please check ECHOMAP Plus 65cv/75cv/75sv/95sv product series.

Manual Download

Dedicated Website

General
Physical dimensions	9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
Weight	1.7 lbs (0.8 kg)
Water rating	IPX7
Display type	WVGA color
Display resolution	800 x 480 pixels

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional: 50/77/200 kHz
	CHIRP (mid and high)
	ClearVü 260/455/800 kHz
Transmit power	500 W (RMS)
Bottom lock (shows return from the bottom up)
Water temperature log and graph

Fishfinder Features
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)

Additional
Additional	Quickdraw Contours
	Integrated GPS
	Mark Waypoints
	Course over Ground (COG)
	Current draw @ 12V: 0.55A

STRIKER Plus 7cv fishfinder
Power/data cable
Tilt/swivel mount
Hardware
Documentation
