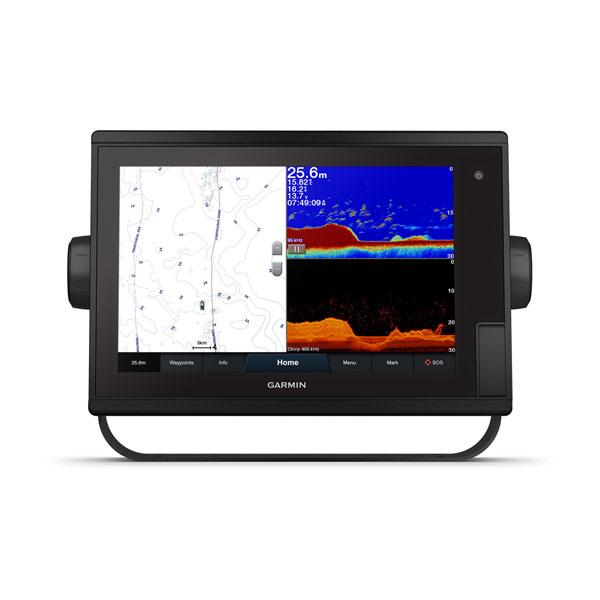

GPSMAP 1222xsv Plus

Part Number 010-02322-02

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

ADVANCED NAVIGATION. ULTIMATE INTEGRATION.

The bright, sunlight-readable 12” intuitive touchscreen chartplotter is easy to use in any environment and seamlessly integrates into your Garmin marine system.

Easily integrate with more engines

Connect to your favorite third-party devices

Easily build your marine system using the best of network connectivity

Navigate any waters with preloaded mapping and coastal charts

See below and around your boat with built-in sonar capabilities (transducers sold separately)

Manage your marine experience from nearly anywhere

TRADITIONAL AND SCANNING SONARS

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (transducer sold separately).

PANOPTIX SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

OPTIONAL BLUECHART G3 VISION CHARTS

These optional charts offer the best of Garmin and Navionics data, Auto Guidance technology and other premium navigation features ¹.

GARMIN MARINE NETWORK

If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications², software updates, Garmin Helm, Garmin Quickdraw Community data and more.

INTEGRATED ANT TECHNOLOGY

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

J1939 CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including Yamaha engines.

ONEHELM FEATURE

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus digital switching, on one screen.

BlueChart g3 Vision Delivers Unparalleled Coastal Chart Coverage

learn more

See Everything with Ultra High-Definition Scanning Sonar System

learn more

¹ Auto Guidance is for planning purposes only and does not replace safe navigation operations
² When paired with a compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Manual Download

General
Physical dimensions	13” x 8.9” x 3.1” (33.0 x 22.6 x 7.9 cm)
Display size	10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Display type	WXGA display
Weight	5.8 lbs. (2.63 kg)
Water rating	IPX7
Polarized Support
J1939 Compatible
Power consumption	Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A
Antenna	Internal or external over NMEA 2000
Mounting options	Bail or flush
Receiver	10 Hz high-sensitivity
Garmin Marine Network ports	2

Maps & Memory
Accepts data cards	2 SD cards; 32 GB max
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Radar compatible
Garmin Sonar compatible	(built-in)
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Supports FUSION-Link compatible radios
GSD Black Box sonar support
GCV Black Box sonar support
ActiveCaptain compatible
GRID (Garmin Remote Input Device) compatible
Wireless remote compatible
Sailing Features

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer)
Transmit power	1 kW traditional; 1 kW CHIRP
CHIRP sonar technology	Yes (Built-in)
ClearVü	Yes with CHIRP (built-in)
SideVü	Yes with CHIRP (built-in)
Maximum depth	5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 2000 compatible
Transducer pin numbers	12-pin (orange)
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports	1 BNC
Video output ports	1 HDMI
