6-foot Open-array Radar with 40 W of Power

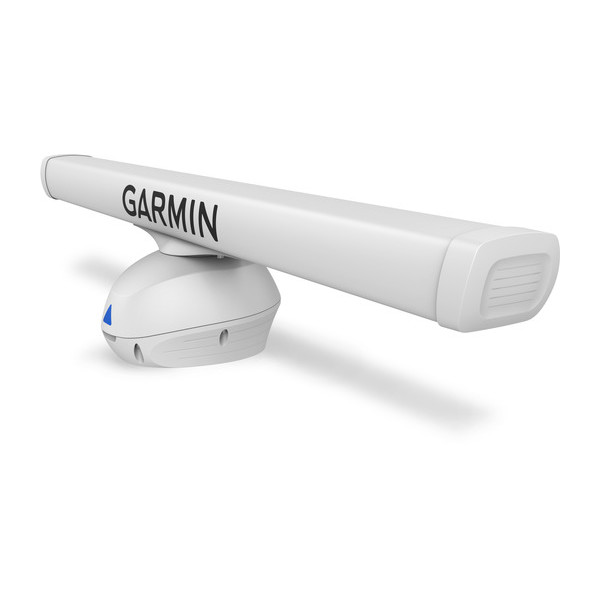

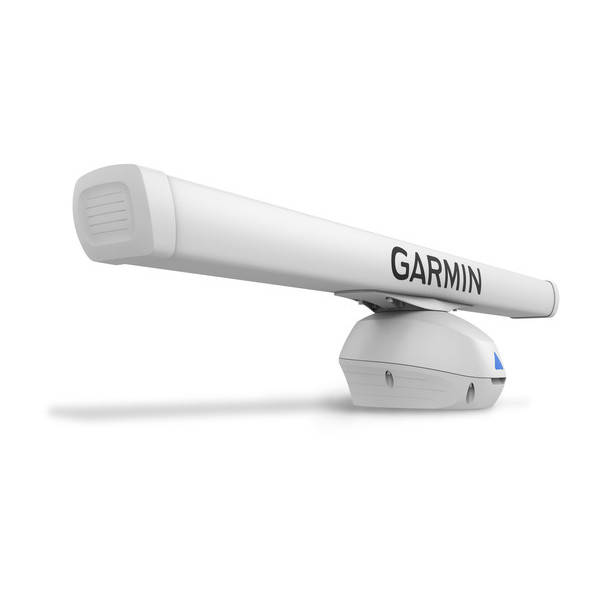

6-foot, 40 W solid-state, open-array radar with pedestal
MotionScope™ technology uses the Doppler effect to detect and highlight moving targets to help avoid collisions, find flocks of birds and track weather
Pulse Compression technology provides high resolution while maximizing energy in order to enhance detection and identification of targets
Pulse Expansion setting increases target sizes to help differentiate real targets from noise
Provides radar data overlay onto charts (autopilot or heading sensor recommended)
Detection range of 20 feet to 72 nautical miles

The 6-foot, 40 W solid-state Garmin GMR Fantom radar features MotionScope technology, which uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions. It fully integrates with select Garmin chartplotters.

High-power 40 W Radar with Narrow 1.25 Degree Beam

You get excellent close- and long-range target detection, ranging from as close as 20 feet to 72 nautical miles, even in fog or rain. Its narrow 1.25 degree horizontal beamwidth provides a high-resolution image and high antenna gain so it can pick out weak targets at a distance. The result is this radar paints a clear, concise image of the shoreline, other vessels and impending weather — right on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speed of up to 48 rpm provides fast screen updates.

MotionScope Doppler Technology

The GMR Fantom uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather — or toward fishing spots where birds are feeding at the surface.

Pulse Expansion

Maximizes target size to help differentiate real targets from noise and provides a visually larger sized target on the chartplotter.

Auto Bird Gain

Fishermen know, when you find birds at the water’s surface, you’ll also find fish. To further improve your fishing experience, use Auto Bird Gain, which helps to locate flocks of birds at the water’s surface where baitfish are also likely to be found.

Echo Trails

A fading “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats. Trails are corrected for your boat’s rotation when an autopilot or heading sensor is connected to your Garmin network.

Dual Range with Overlay

Single radar antenna is capable of providing split screen images on your chartplotter side-by-side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.

Dual Radar Support

Provides redundancy and the ability for each display unit on the boat to select data from 1 of 2 different radar sources.

Dynamic Auto Gain

Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions.

Dynamic Sea Filter

Dynamic Sea Filter automatically adjusts gain to changing sea conditions with user options for low, medium or high filtering.

Radar Overlay

Overlays the radar image on the chartplotter’s map page. An autopilot or heading sensor is recommended for best results.

MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Guard Zone

Set the safety zone and receive an alarm when an object enters the zone.

VRM and EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

It’s Your Time

All Garmin radars are designed to be easy to install and easy to use. There are no complex user settings to adjust; just install your radar and start using it. You can rely on the GMR Fantom radar to provide reliable, optimum performance in all conditions. Because, it’s your time.

Vertical Range Scaling

Fits the selected radar range to the vertical size of your display to show more forward looking radar returns on screen and make it easier to interpret target distances.

Physical & Performance
Physical dimensions	Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm) Full assembly: 15.9" height x 75.2" diameter (40.3 cm height x 190.9 cm diameter)
Weight	Array: 16 lb (7.3 kg) pedestal: 34.7 lb (15.7 kg)
Water rating	IPX6
Antenna length	72" (182.9 cm)
Power consumption	Typical 55 W; Max 160 W
Rotation speed (RPM)	24 and 48 rpm (High Speed only available in Single Range mode, with MotionScope disabled, and on range settings of 12 NM or lower)
Transmit power	40 W
Power input	10-32 V
Beam width	1.25° horizontal, 23° vertical
Maximum range	72 nm
Minimum range	6 meters
Radar type	Open-Array

Radar Features
High definition (outstanding target separation with less screen clutter)
MARPA target tracking (collision avoidance)	(Requires Heading Sensor, Sold Separately)
Guard zone alarm
Color	8 bit
Radar overlay support
Dual range support
Timed Transmit
No Transmit Zone
Auto Gain	Dynamic
Sea Filter	Dynamic

Additional
Additional	MotionScope: Yes Auto Bird Gain: Yes Dual Radar Support: Yes Echo Trails: Yes Programmable Antenna Parking Position: Yes Max Wind Speed: 80 kt

GMR Fantom 6
Mounting hardware kit and template
Power cable (15 meters)
Network cable (15 meters)
Software update microSD/SD™ card
Documentation
