Discontinued

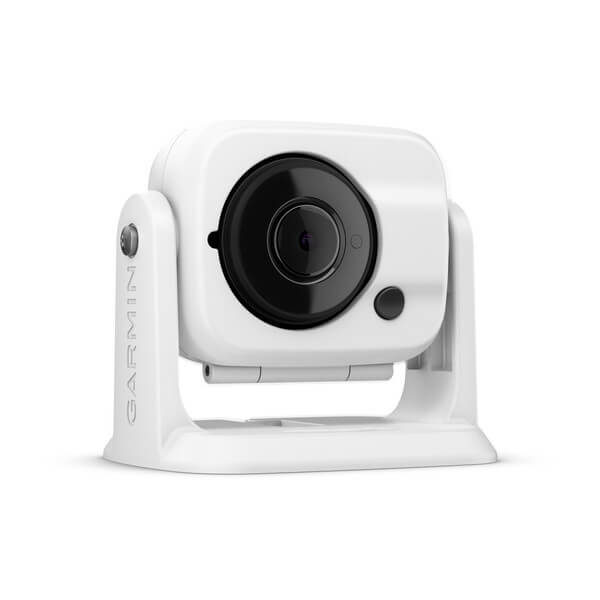

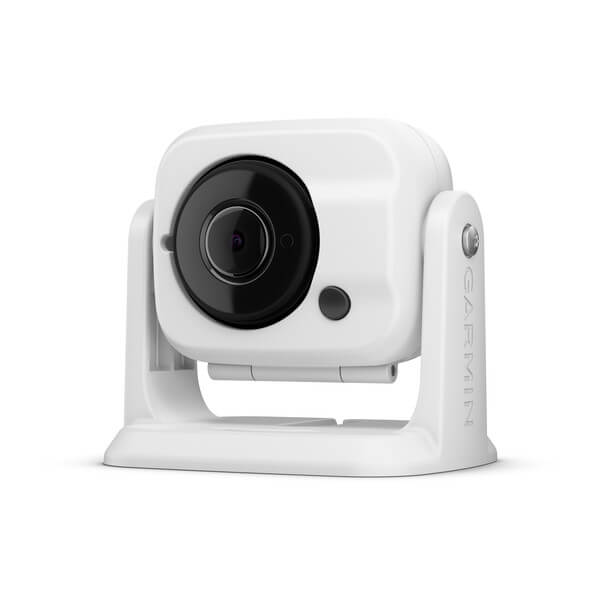

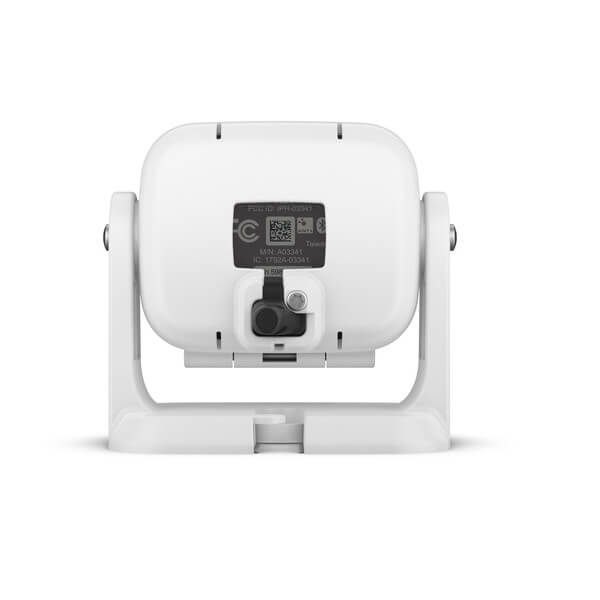

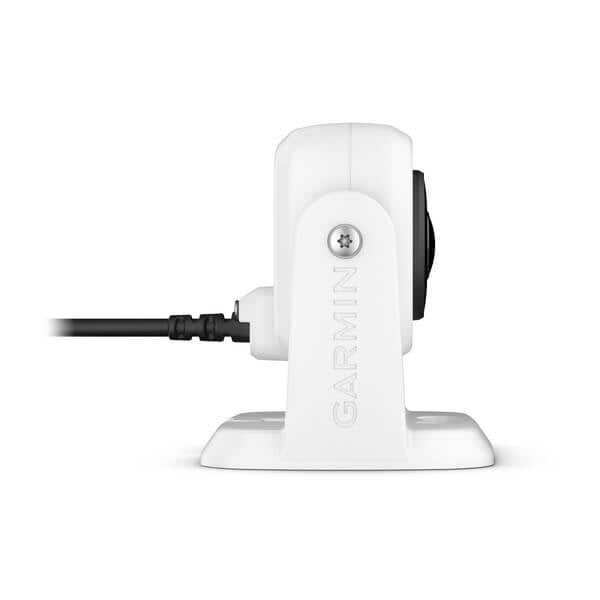

GC™ 100 Wireless Camera

Part Number 010-01865-30

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

Wirelessly Stream Video to Your Chartplotter

Compact marine camera helps you monitor areas inside and around your boat
Wirelessly connect to your compatible chartplotter for high-quality images shown right on your display
Video is available for viewing on any other chartplotter on same network
Effective in total darkness; perfect for the engine room
Easy to install and hardwired for power with one-button setup

For added security and practical awareness above and below deck and around your boat, the GC 100 marine camera provides an easy solution. This compact camera wirelessly streams high-quality video to display directly on your compatible chartplotter and any other chartplotter on the same network. You can pair up to 7 cameras with your chartplotter, and view content from up to 4 cameras simultaneously.

Install Nearly Anywhere

GC 100 is effective in total darkness, making it perfect for the engine room. Easy to install and hardwired for power, the camera is ready to use with one-button setup. The durable, compact design of the camera, weatherproof housing and its secure mounting bracket provide flexible options for placement nearly anywhere on your boat.

Wi-Fi®: Built-in Wi-Fi
Camera connection: Wi-Fi connection
Power: Hardwired (10-30 Vdc)
Images: standard and reverse
Night vision: Built-in IR LED illumination (940 nm)
Night vision distance: Up to 3 meters
Viewing angle: 183° (diag) / 160° (horiz) / 90° (vert)
Image sensor device: 1/4 in (4.5mm) high-sensitivity CMOS
Effective pixels: 1280 x 720 (720p HD)
Scanning system: Rolling shutter
Resolution: 1280 x 720 (720p HD)
Video output: H.264 stream over Wi-Fi
Operating temperature: -20°C to +60°C
Infared spectrum: 940 nm
Gain correction: Auto
White balance: Auto
Electronic shutter: Auto
Back light compensation: Auto
Day/night operation: RGB mode full-time
Waterproof rating: IPX7

GC 100 wireless camera
Protective case
Screw-down mount with mounting hardware
10 meter IPX7 power cable
Manual
