Fishfinder 560C
Discontinued

Fishfinder 560C

Part Number 010-01197-00

ONLINE STORE

Fishfinder 560C Fishfinder 560C Fishfinder 560C Fishfinder 560C

Perfectly designed for fishing vessels

The Fishfinder 560C is perfectly designed for fishing vessels. It scans waters with 600 watts (RMS) power, extra-sensitive Garmin HD-ID™ target tracking technology and the ability to scan bottom profiles down to 1,500 feet in salt water.

A transducer kit includes a transducer adopter. Professional fishermen can subscribe suitable transducer in need.

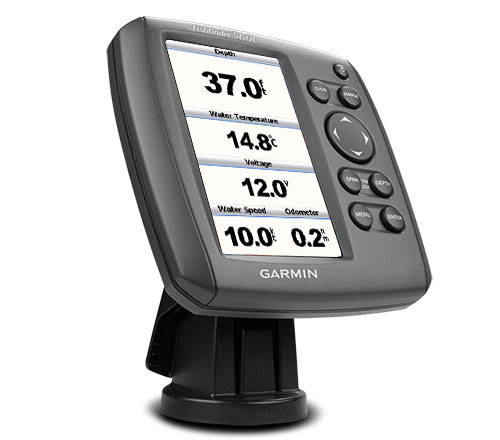

5” sunlight-readable WVGA glass bonding display

Fishfinder 560C comes with a high resolution
(480 x 800 pixels), full colors (256 colors), and sunlight-readable 5” WVGA display.
A glass-bonded finish lens has placed on it to prevent fogging and increase contrast.



Dedicated button for most common used function

Benefit for the professional fishermen like you, Fishfinder 560C features with dedicated button on its right side for you to quickly adjust the setting you need for “Gain”, “Range”, and “Zoom” function.

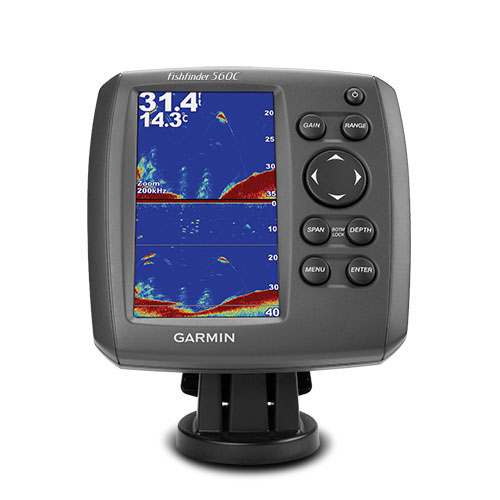

Up-and-down split screen

Putting its 5” WVGA display vertically, Garmin offers you an intuitive comparison when using the “Split Screen” on Zoom or Dual Frequency page.

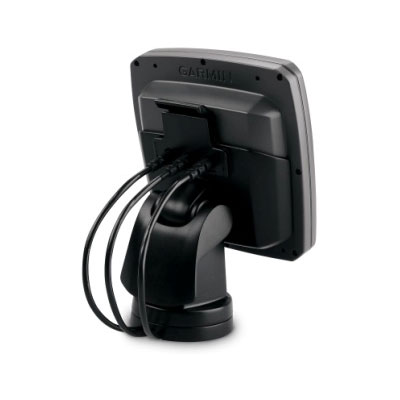

Quick installation mount

Are you worried about your fishfinder being stolen? Easily remove Fishfinder 560C from mount and take the device with you off boat. The Fishfinder 560C is one of the most intuitive fishfinders in the market. Installation takes only a few minutes with using the tilt/ swivel mount and versatile transom/trolling motor-mount transducer included in the box.



Garmin Fishfinder 560C

See latest Asia dedicated fishfinder - Garmin Fishfinder 560C

Physical & Performance

Physical dimensions 6.0" x 5.9" x 1.8" (15.2 x 15.0 x 4.6 cm)
Display size, WxH 2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm)
Display resolution, WxH 480 x 800 pixels
Display type WVGA, 256 colors
Weight 17.6 oz (499 g)
Water rating IPX7

Features & Benefits

Audible alarms
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Whiteline (indicates hard or soft bottom)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Water temperature sensor included
Water speed capable (displays speed on water)

Other Specs

Frequencies supported 50/200kHz
Transmit power 600W (RMS)/4,800W (peak to peak)
Voltage range 8V - 28V input
Maximum depth
Additional
1,500 ft saltwater*
*Depth capacity is dependent on water bottom type and other water conditions.

What's in the Box:

  • Fishfinder 560C
  • Quick release mount with tilt and swivel
  • Power cable
  • Transducer adapter, female 4-pin to male 8-pin
  • Documentation



Optional Accessory kit

Portable echo™ Kit
010-11849-00





Optional Transducer Accessories

Water Speed Sensor (4-pin)
010-10279-04
$ 29.99 USD
Suction Cup Transducer Adapter
010-10253-00
$ 8.89 USD

Mounts

Quick Release Mount
010-11676-00
$ 20.99 USD
Flush Mount Kit
010-11682-00
$ 10.99 USD

Cables

Power Cable
010-11678-00
$ 16.99 USD

Cases and Covers

Protective Cover
010-11680-00
$ 14.99 USD

Adapters

Transducers



no data.
