Discontinued

ECHOMAP UHD 62cv

Part Number 010-02329-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

JOIN THE CLUB. FIND MORE FISH.

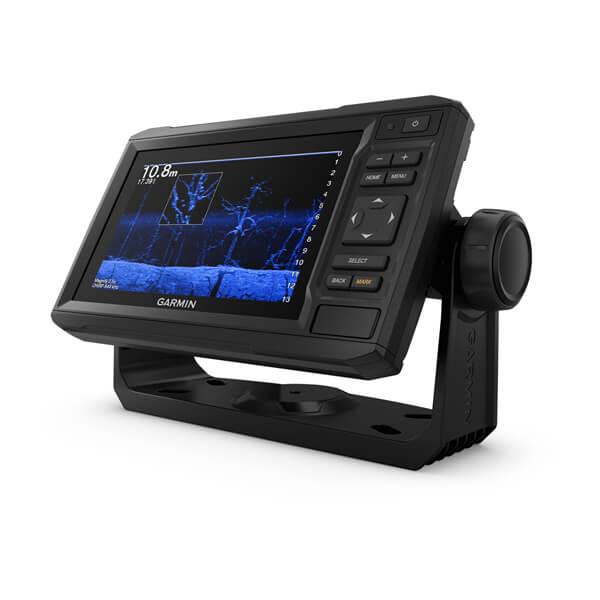

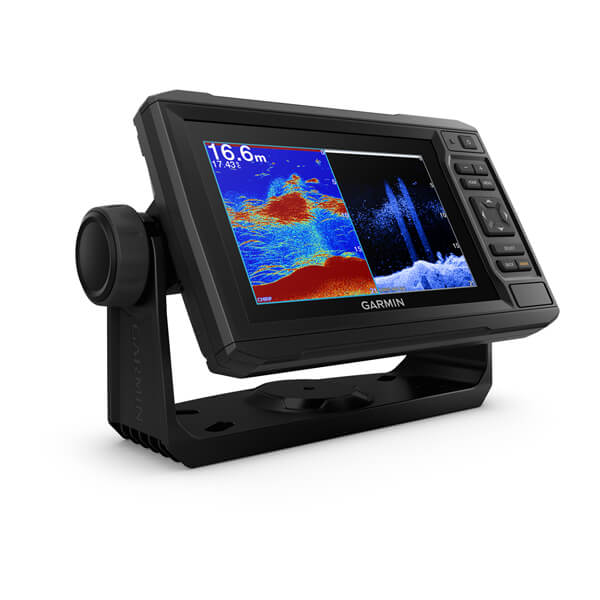

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below your boat in incredible detail with optional transducer

Navigate any waters with optional charts and maps

Manage your marine experience from nearly anywhere

Create your own maps on the fly and tailor them to fit your needs

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

OPTIONAL CHARTS AND MAPS

Experience unparalleled coverage and detail with support for optional BlueChart g3 Vision coastal charts featuring integrated Garmin and Navionics content.

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications ¹, software updates, Garmin Quickdraw Community data and more.

Manage Your Marine Experience Using The Free ActiveCaptain App

learn more

Powerful. Efficient. Quiet. Force Trolling Motor

learn more

¹When paired with a compatible smartphone
² In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General
Physical dimensions	8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
Display size	5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
Display resolution	480 x 800 pixels
Display type	WVGA display
Weight	1.6 lbs (0.7 kg)
Water rating	IPX7
Power consumption	12W
Antenna	Internal or external over NMEA 2000

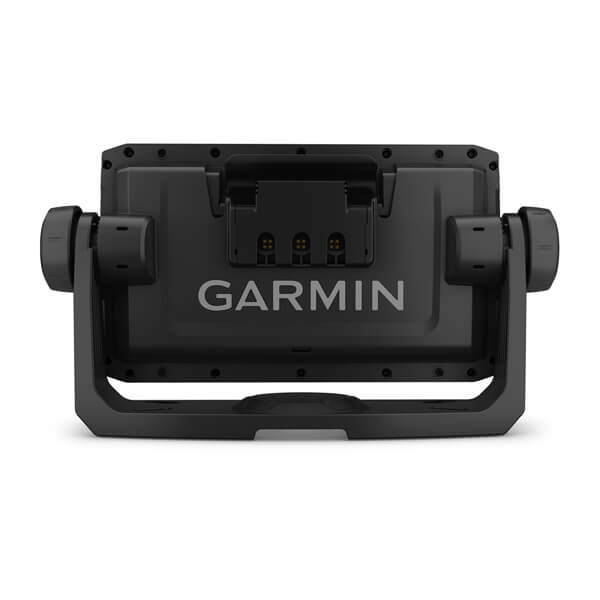

Mounting options	Bail or flush
Receiver	5 Hz
Garmin Marine Network ports

Maps & Memory
Preloaded maps	Worldwide basemap
Accepts data cards	1 microSD card; 32 GB max size
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
ActiveCaptain compatible
Sailing Features

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	( Built-in)
ClearVü	Yes with CHIRP (built-in)
SideVü
Maximum depth	2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 2000® compatible
Transducer pin numbers	4
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports
Video output ports
Wireless connectivity

ECHOMAP UHD 62cv with worldwide basemap
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
