Discontinued

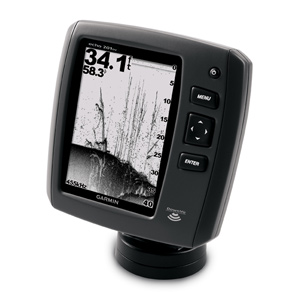

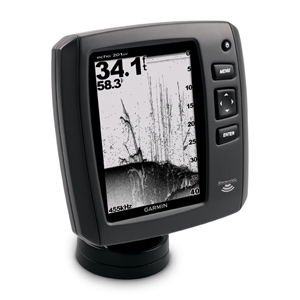

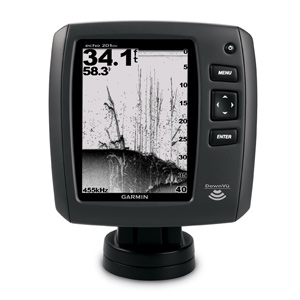

echo™ 201dv

Part Number 010-01254-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

Fishfinding with Garmin ClearVü™ Scanning Sonar

Garmin ClearVü scanning sonar provides a nearly photographic view of fish and structure under the boat
Includes all-in-one advanced HD-ID™ and ClearVü transducer
5-inch diagonal, 16-level gray scale display
Transmit power (RMS)/(Peak-To-Peak): 300 W/2,400 W
Includes quick-release tilt/swivel mount, transom mount and low-profile trolling motor transducer mounting kits

The powerfully simple 5-inch echo 201dv includes an all-in-one transducer that delivers both advanced HD-ID 77/200 kHz and Garmin ClearVü scanned images simultaneously on a horizontally or vertically split screen.

See excellent target separation and a nearly photographic view of fish with 2,400 W peak-to-peak power, and experience narrow-to-wide viewing cone angles that provide a clear picture down, under the boat, to 1,750 feet maximum¹. Plus, sonar history rewind and Smooth Scaling™ depth-range adjustments allow for seamless transitions from shallow to deep water and back. Includes quick-release tilt/swivel mount plus transom and low-profile trolling motor transducer mounts to make installation a snap.

¹Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.

Physical & Performance
Physical dimensions	6.0” x 5.9” x 1.8” (15.2 x 15.0 x 4.6 cm)
Display size, WxH	2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm)
Display resolution, WxH	320 x 480 pixels
Display type	16-level grayscale, HVGA
Weight	17.6 oz (500 g)
Water rating	IPX7

Features & Benefits
Audible alarms
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Split-screen zoom
Ultrascroll^® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Whiteline (indicates hard or soft bottom)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Water temperature sensor included
Water speed capable (displays speed on water)

Other Specs
Frequencies supported	50/77/200 kHz, ClearVü
Transmit power	300 W (RMS)/2,400 W (peak to peak)
Voltage range	10-28 Vdc input
Maximum depth	1750 ft @ 77 kHz, freshwater
Additional	HD-ID Tracking Technology Sonar History Rewind

echo 201dv
4-pin ClearVü transducer with transom mount and trolling motor mount
Tilt/swivel quick-release mount
Power Cable
