Discontinued

echo™ 301c

Part Number 010-01260-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

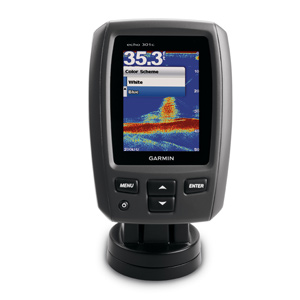

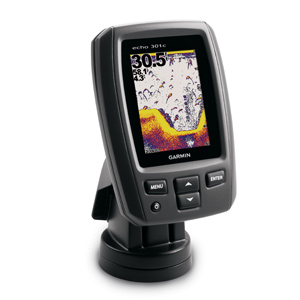

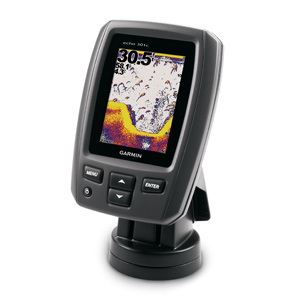

A Powerfully Simple 3.5-inch Color Fishfinder

Exclusive advanced HD-ID™ sonar with or without transducer (depending on version)
3.5-inch diagonal color display
Transmit power (RMS)/(Peak-To-Peak): 300 W/2,400 W
Frequency: 77/200 kHz included (supports 50/200 kHz)
Quick-release tilt/swivel mount and transom/trolling motor transducer mounting kit included

The color echo 301c is a powerful, simple-to-use fishfinder featuring a built-in advanced HD-ID sonar with or without a 77/200 kHz transducer (supports 50/200 kHz transducer, sold separately).

The bright 3.5-inch color display is readable in sunlight. Its 2,400 W peak-to-peak power provides clear target separation and structure details down to 1,750 feet maximum¹. Smooth Scaling™ graphics provide uninterrupted imagery when switching between depth-range scales, and wide viewing-cone angles (60/120 degrees) optimize performance for use in deep or shallow water.

Mount and Go

It comes ready-to-go with a quick-release tilt/swivel mount and transom/trolling transducer mount kit. So you can get right to fishing.

¹Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.

Physical & Performance
Physical dimensions	4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
Display size, WxH	2.1" x 2.8" (5.3 x 7.1 cm); 3.5” diag (8.9 cm diag)
Display resolution, WxH	240 x 320 pixels
Display type	QVGA color
Weight	11.6 oz (330 g)
Water rating	IPX7

Features & Benefits
Audible alarms
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Split-screen zoom
Ultrascroll^® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Whiteline (indicates hard or soft bottom)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Water temperature sensor included
Water speed capable (displays speed on water)

Other Specs
Frequencies supported	50/77/200 kHz
Transmit power	300 W (RMS)/2,400 W (peak to peak)
Voltage range	10-28 Vdc input
Maximum depth	1750 ft @ 77 kHz, freshwater
Cone angle	60º or 120º (dual beam)
Additional	HD-ID Tracking Technology

With Transducer

echo 301c
Dual-beam transducer with transom mount and trolling motor mount
Tilt/swivel quick-release mount
Power cable
Documentation

Without Transducer

echo 301c
Tilt/swivel quick-release mount
Power cable
Documentation
