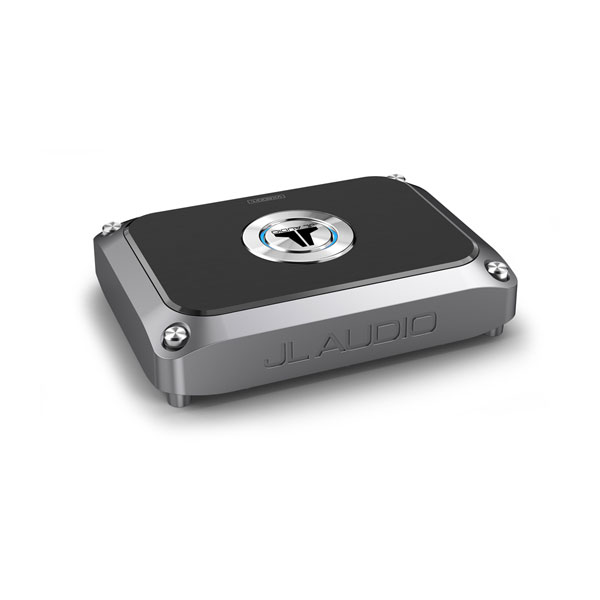

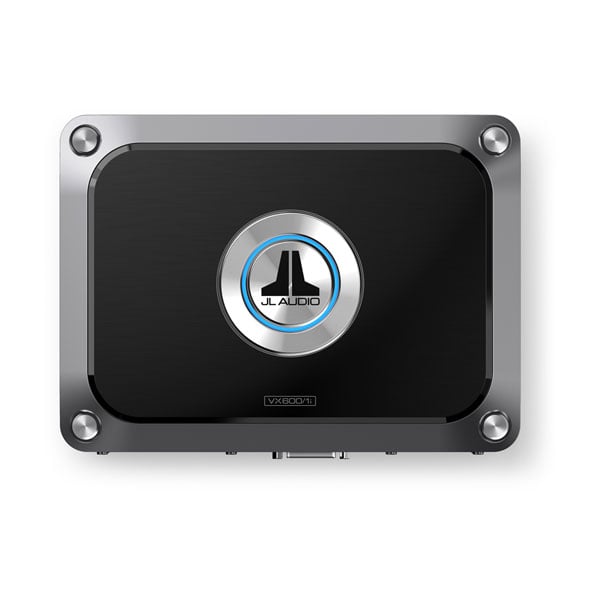

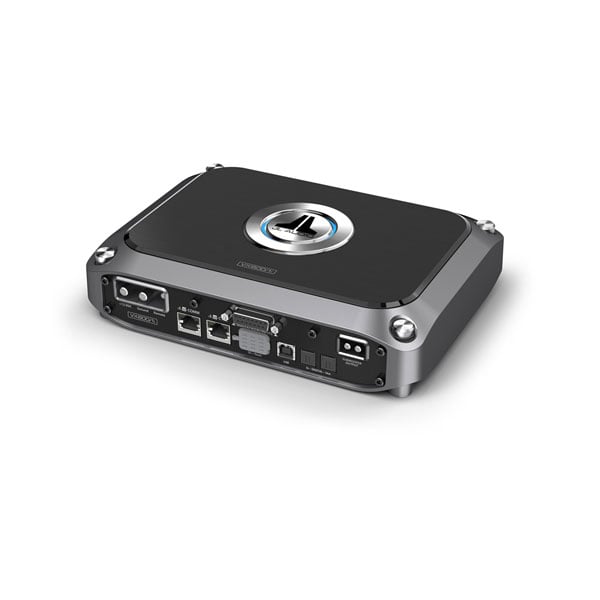

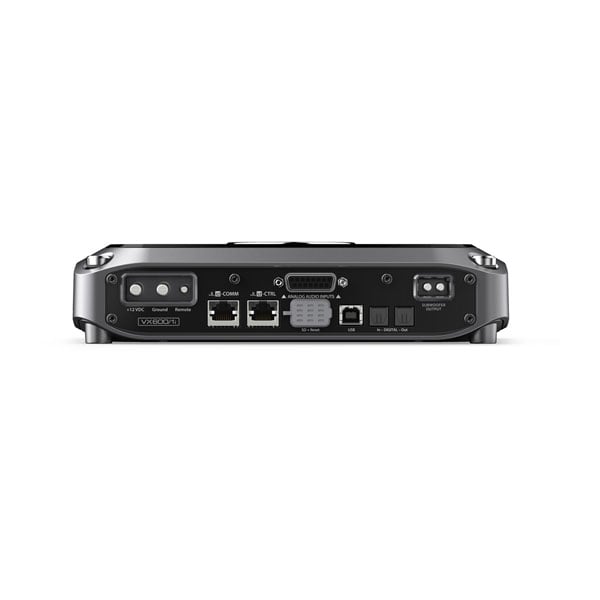

JL Audio VXi Car Monoblock Amplifier

Monoblock Amplifier with Integrated DSP (600 W) (VX600/1i)

Part Number 010-03331-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

General
Channels	Monoblock
Physical dimensions (Height)	2.12" (54 mm)
Physical dimensions (Width)	Monoblock (600 W): 9.02" (229 mm) Monoblock (1000 W): 11.32" (287 mm)
Physical dimensions (Depth)	6.62" (168 mm)
Weight	Monoblock (600 W): 5.0 lbs (2.27 kg) Monoblock (1000 W): 6.55 lbs (2.95 kg)
Operating voltage	11-14.5 VDC
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock (600 W): 400 W x 1 Monoblock (1000 W): 600 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock (600 W): 600 W x 1 Monoblock (1000 W): 1000 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Monoblock (600 W): 300 W x 1 Monoblock (1000 W): 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Monoblock (600 W): 500 W x 1 Monoblock (1000 W): 800 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Monoblock (600 W): 90 dB Monoblock (1000 W): 87 dB
Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs	Monoblock (600 W): 90 dB Monoblock (1000 W): 87 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Monoblock (600 W): 64 dB Monoblock (1000 W): 60 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Digital Inputs	Monoblock (600 W): 64 dB Monoblock (1000 W): 56 dB
Damping factor @ 4 Ω	Monoblock (600 W): >125/50 Hz Monoblock (1000 W): >400/50 Hz
Damping factor @ 2 Ω	Monoblock (600 W): >125/50 Hz Monoblock (1000 W): >300/50 Hz
THD+N @ Rated Power	<1% @ 2 Ω
Frequency response (+0, -1dB)	12 Hz-500 Hz
Input voltage range @ RCA inputs	200 mV-16 V RMS
Fuse rating	Monoblock (600 W): 50 A Monoblock (1000 W): 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire

VXi amplifier
Power connector
Analog input harness
Subwoofer output connector
6-foot USB A/B cable
Four corner caps
Corner cap tool
2.5 mm Allen wrench
3 mm Allen wrench
