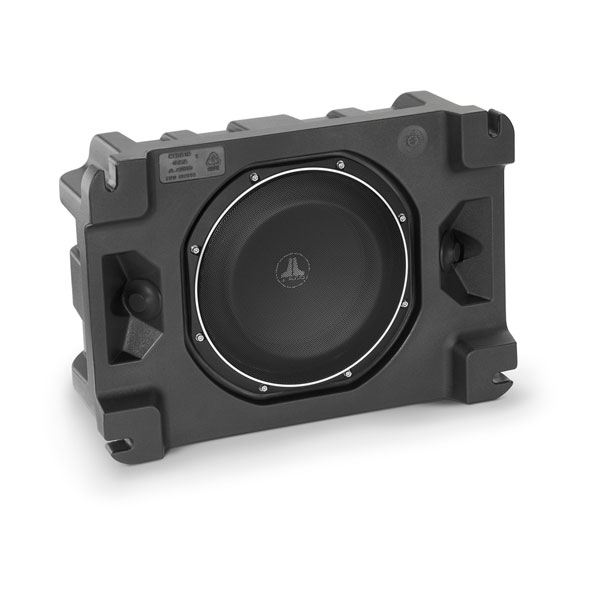

JL Audio StowAway Subwoofer

10" Sealed Subwoofer 2 ohm (PES110-TW1-2)

Part Number 010-03454-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

ROCK-SOLID BASS, BUILT FOR ALL-WEATHER DUTY

In a wide range of challenging environments and applications, the StowAway subwoofer system generates smooth, powerful bass from a remarkably compact subwoofer enclosure. Whether it’s on cars, boats, UTVs or any other vehicle, the rugged marine-grade StowAway enclosed subwoofer is perfect for mounting in areas shared with cargo or exposed to the elements.

DELIVERS CLEAR, DEEP BASS OUTPUT FROM A RUGGED, SUPERCOMPACT ENCLOSURE

CHOOSE FROM 10- OR 12-INCH TW1 THIN-LINE SUBWOOFERS

THE DOWN-FIRING HARD-SHELL ENCLOSURE CAN MOUNT ALMOST ANYWHERE

PREWIRED WITH SELECTABLE HARNESS EXITS LOCATED UNDERNEATH AT OPPOSITE ENDS

PAIRS BEST WITH AMPLIFIER POWER IN THE 75- TO 300-WATT RANGE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR DEEP, STRONG SUB-BASS RESPONSE

StowAway systems are purpose-built to take full advantage of the thin-line TW1 series subwoofer design — enabling them to deliver smooth, rich, evenly balanced bass output from a remarkably compact enclosure.

RUGGED ENCLOSURE DESIGN

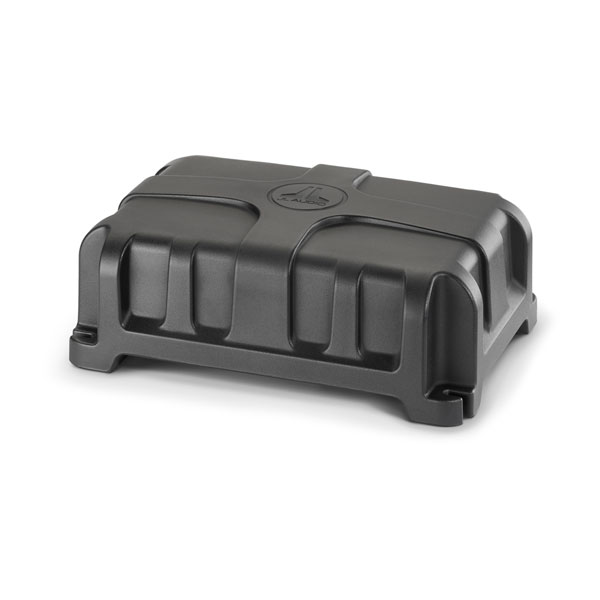

Each StowAway subwoofer system is constructed from marine-grade materials and features a low-profile, down-firing hard-shell enclosure.

SIMPLIFIED INSTALLATION

The StowAway subwoofer system comes prewired with selectable harness exits at opposite ends of the enclosure. Slotted mounting feet at each corner of the unit’s base assist with “off-the-floor” installations or those in tight spaces where access is limited. A mesh grille is provided for added woofer protection.

POWERFULLY ADAPTABLE

On a wide range of car, boat and all-terrain vehicle applications, the all-weather TW1 subwoofers deliver superb sound quality and power handling. Both the 10- and 12-inch versions support pairing with amplifiers in the 75- to 300-watt range.

TW1 SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED SPEAKERS

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output. With its recessed suspension attachment surface, the TW1 series’ thin-line frame serves to minimize the frontal clearance space required for excursion of the driver.

CONCENTRIC TUBE SUSPENSION TECHNOLOGY

Using a patented concentric tube structure built into the TW1 series’ injection-molded speaker cone body, the StowAway system offers a powerful combination of shallow mounting depth, minimal frontal clearance and big sub-bass sound.

ENGINEERED LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

TAB-EAR FRAME DESIGN

Benefiting from years of JL Audio woofer design experience, the robust TW1 series speakers feature a space-saving tab-ear frame design that helps to maximize cone area within the woofer’s mounting footprint.

General
Sizes	10"/12"
Physical dimensions (Height)	10": 7" (178 mm) 12": 8.23" (209 mm)
Physical dimensions (Width)	10": 18" (457 mm) 12": 21.78" (553 mm)
Physical dimensions (Depth)	10": 12.5" (318 mm) 12": 15.16" (385 mm)
Continuous power handling (RMS)	300 W
Nominal impedance	2 Ω or 4 Ω
Recommended amplifier power (RMS)	75-300 W
Cone material	Mineral-filled polypropylene
Enclosure type	Sealed
Grille(s) included	yes
Warranty	2 years
Connections
Speaker connections	Unterminated, flying-lead

Sealed enclosure containing a TW1 subwoofer
Grille (installed)
Input harness
