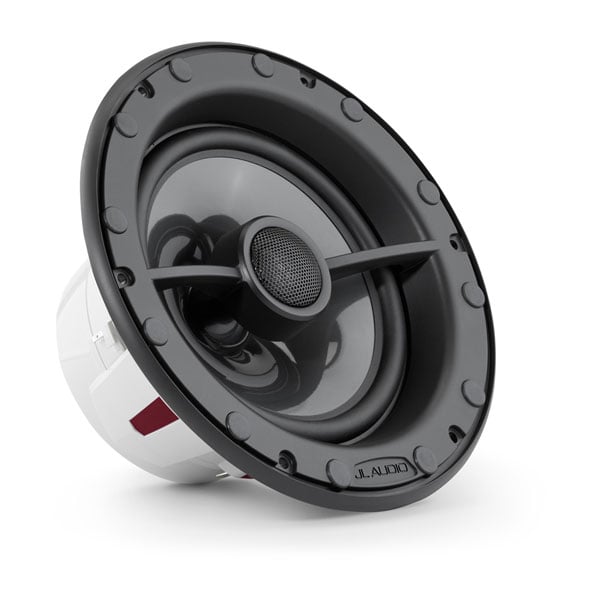

JL Audio Pavilion Outdoor In-Ceiling Speaker

7.7" with Black Luxe Grille (Single) (PV-FX7-SbSb-Single)

Part Number 010-03870-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

REMARKABLE SOUND. REFINED LOOKS.

Designed for residential applications, these flush-mount in-ceiling speakers are engineered to deliver outstanding audio performance and durability in overhead outdoor spaces.

6.5-, 7.7- AND 8.8-INCH SIZES

ONBOARD, TRUE TWO-WAY PASSIVE CROSSOVER

REQUIRES 30 TO 120 WATTS OF POWER PER CHANNEL

OUTDOOR-RATED DESIGN

TWO-WAY COAXIAL SPEAKER WITH SILK DOME TWEETER

PAINTABLE, LOW-PROFILE GRILLE

WHAT YOU'LL LOVE

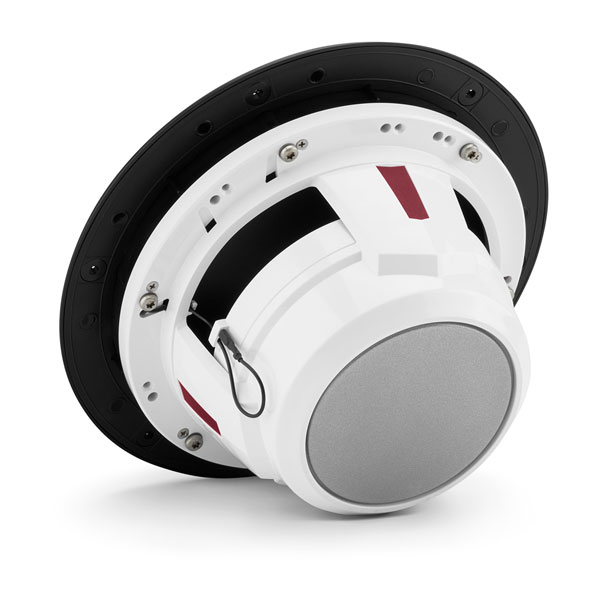

A PERFECT FIT

For ease of installation, all speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine-mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.

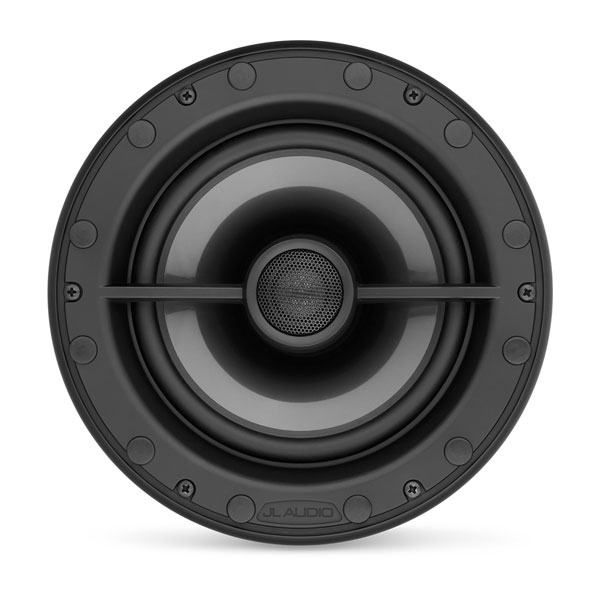

CRYSTAL-CLEAR SOUND

This speaker features a DMA-optimized, long-excursion woofer design to ensure excellent power handling. It also includes a pure silk dome tweeter, treated to withstand the harshest outdoor environments while delivering remarkable high-frequency sound — even at higher volume levels.

DMA-OPTIMIZED

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

REAL-WORLD CERTIFIED

Pavilion speakers meet or exceed ASTM standards for salt fog exposure as well as UV exposure. They utilize marine-grade materials and components specifically designed for harsh environments.

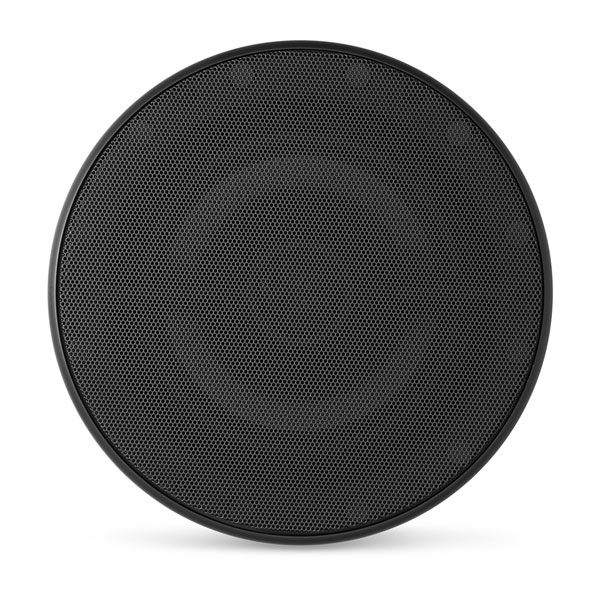

FLUSH-MOUNT GRILLE

The ultrathin fine-mesh design attaches magnetically for a discreet visual appearance. Colors are available in satin white and satin black.

General
Sizes	6.5"/7.7"/8.8"
Color	Satin black or Satin white
Physical dimensions (Diameter)	6.5": 8.34" (212 mm) 7.7": 7.70" (196 mm) 8.8": 8.80" (224 mm)
Physical dimensions (Depth)	6.5": 4.02" (102 mm) 7.7" 4.4" (112 mm) 8.8": 6.45" (164 mm)
Weight	6.5": 3.21 lbs (1.45 kg) 7.7": 5.35 lbs (2.43 kg) 8.8": 9.25 lbs (4.19 kg)
Speaker type	Coaxial
Continuous power handling (RMS)	6.5": 60 W 7.7": 80 W 8.8": 100 W
Sensitivity (SPL @ 1 W/1 m)	6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB
Frequency response (+/- 3 dB)	6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-20 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	6.5": 30-120 W/Channel 7.7": 40-160 W/Channel 8.8": 50-200 W/Channel
Cone material	Injection-molded, mica-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	6.5": 0.8" (20 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm)
Warranty	5 years

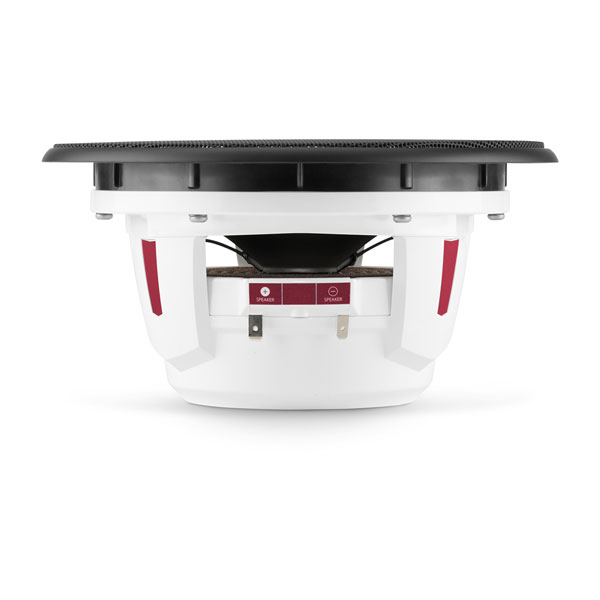

Connections
Speaker connections	Spade Connectors
Mounting Dimensions
Mounting diameter clearance	8.8": 10.25" (260 mm)
Mounting depth clearance	6.5": 3.87" (98 mm) 7.7": 4.26" (108 mm) 8.8": 6.30" (160 mm)
Frontal grille protrusion	6.5": 0.37" (9 mm) 7.7": 0.38" (10 mm) 8.8": 0.48" (12 mm)
Mounting hole	6.5": 6.875" (175 mm) 7.7": 7.625" (194 mm) 8.8": 8.75" (222 mm)
Bolt hole circle	6.5": 7.39" (188 mm) 7.7": 8.18" (208 mm) 8.8": 9.27" (235 mm)

Pavilion coaxial speaker
Flush-mount grille
Mounting system
Paint shield
Cutout template
