JL Audio JD Car Full-range Amplifier

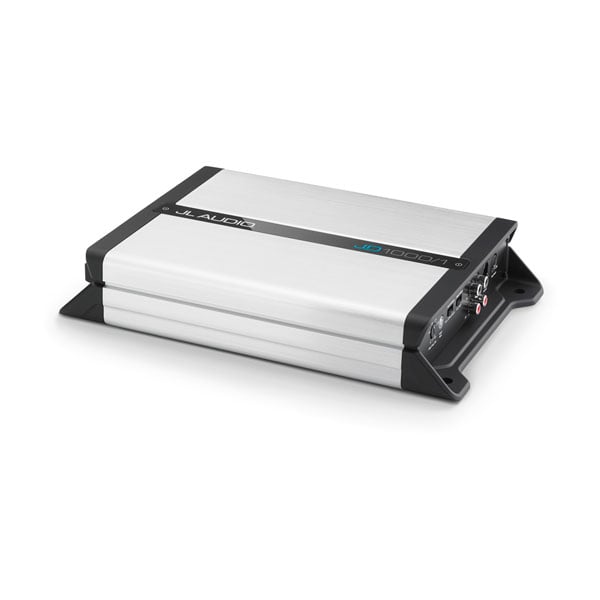

Monoblock Amplifier (1000 W) (JD1000/1)

Part Number 010-03323-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

AFFORDABLE, POWERFUL, EFFICIENT

Combining our core amplifier technologies with a generous feature set, the JD series of monoblock amplifiers employs advanced NexD^™ switching design to pack a serious audio punch — delivering high-power output and premium sound quality from a surprisingly cost-effective package.

12 DB/OCTAVE LOW-PASS FILTER

SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV to 8-VOLT RMS)

3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET

ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING

OPTIMIZE LOW-END AUDIO WITH VARIABLE BASS BOOST EQ

2-YEAR WARRANTY

WHAT YOU'LL LOVE

EFFICIENT CLASS-D DESIGN

Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.

CLEAN, POWERFUL, RELIABLE

With a choice of 250-, 500- or 1000-watt amplifier versions delivering clean power into a 2-ohm load (14.4 volts, 1% THD), the JD monoblocks offer versatile applications. Use a JD mono amplifier to drive a single subwoofer — or a pair to deliver stunning output from your subwoofer system.

PREMIUM-LEVEL SIGNAL PROCESSING

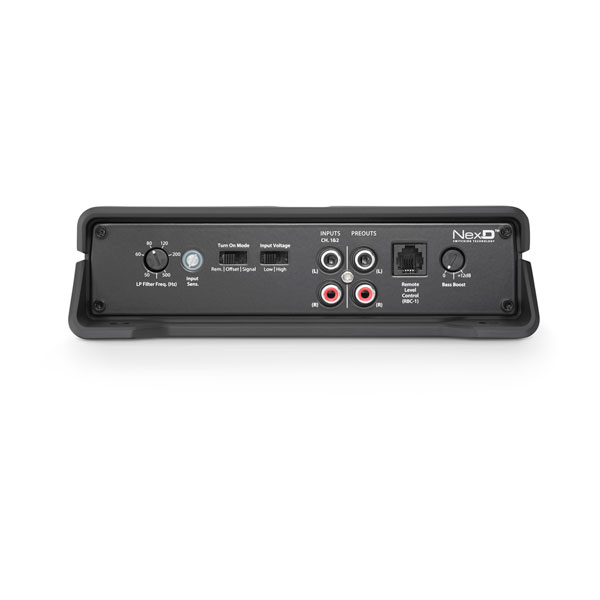

For easy setup and interface with your speaker system, the JD series features a 12 dB/octave low-pass filter, with continuously variable frequency selection from 50–500 Hz and a variable bass boost EQ.

SPEAKER LEVEL OR RCA INPUTS

Our versatile JD series design features dual-range, differential-balanced inputs capable of accepting line-level and speaker-level signals. The technology offers superior noise rejection and excellent compatibility with a wide range of input signal voltages.

LED CLIPPING INDICATOR RINGS

An LED clipping indicator ring that surrounds each input level potentiometer lets you quickly and accurately set your amplifier’s input sensitivity, without the need for additional test equipment.

BUILT STRONG AND SMART

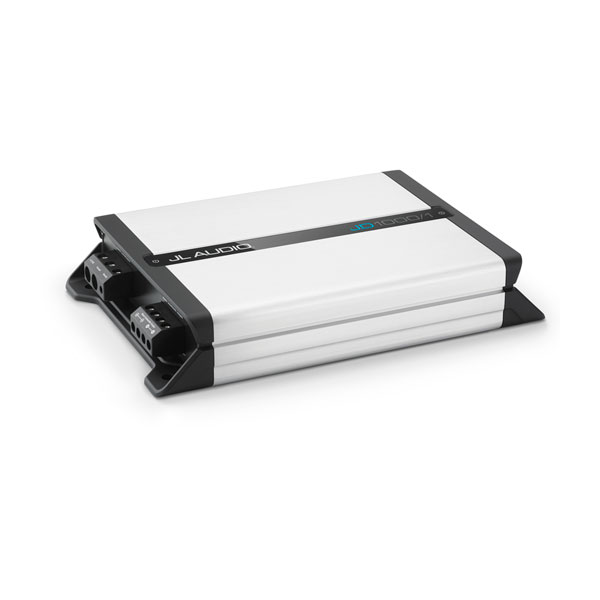

Featuring a sleek industrial design with molded end caps and an aluminum extruded chassis, the JD series’ power indicator and protection LED indicators shine from behind a simple black logo bar on the top surface of the amplifier.

AUDIO TECHNOLOGIES

DIFFERENTIAL-BALANCED INPUTS

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

NEXD SWITCHING TECHNOLOGY

Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.

General
Warranty	2 years
Channels	Monoblock
Physical dimensions (Height)	2.10" (53 mm)
Physical dimensions (Width)	Monoblock (250 W/500 W): 9.50" (242 mm) Monoblock (1000 W): 11.40" (290 mm)
Physical dimensions (Depth)	7.50" (190 mm)
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock (250 W): 150 W x 1 Monoblock (500 W): 250 W x 1 Monoblock (1000 W): 600 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock (250 W): 250 W x 1 Monoblock (500 W): 500 W x 1 Monoblock (1000 W): 1000 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Monoblock (250 W): 115 W x 1 Monoblock (500 W): 225W x 1 Monoblock (1000 W): 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Monoblock (250 W): 200 W x 1 Monoblock (500 W): 400 W x 1 Monoblock (1000 W): 800 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Monoblock (250 W/500 W): >60 dB Monoblock (1000 W): >50 dB
Damping factor @ 4 Ω	>1000/50 Hz
Damping factor @ 2 Ω	>500/50 Hz
THD+N @ Rated Power	<1% @ 2 Ω
Frequency response (+0, -1dB)	7 Hz-500 Hz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating	Monoblock (250 W): 30 A Monoblock (500 W): 50 A Monoblock (1000 W): 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	Monoblock (250 W): 8 AWG wire Monoblock (500 W/1000 W):4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2	Low-pass only
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter frequency range: Channels 1 & 2	50 Hz-500 Hz
Bass boost	yes
Bass boost EQ (0 to +12 dB @ 45 Hz)	yes
Remote level control	Optional (RBC-1)
Pass-through preamp output	Buffered

JD amplifier
2.5 mm Allen-wrench
3 mm Allen-wrench
