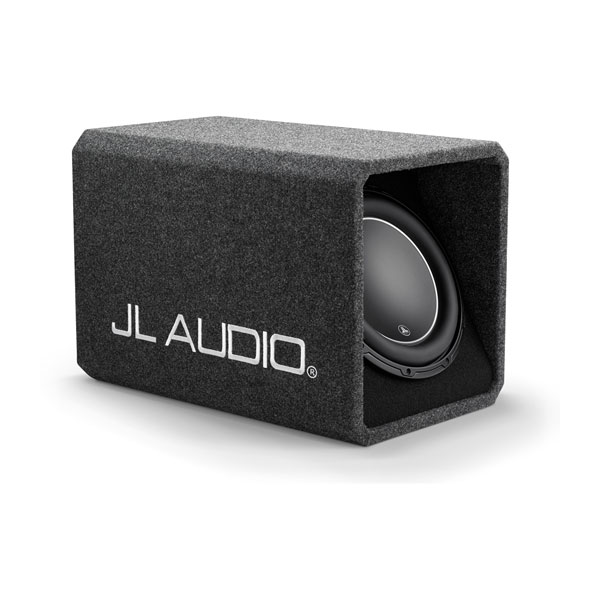

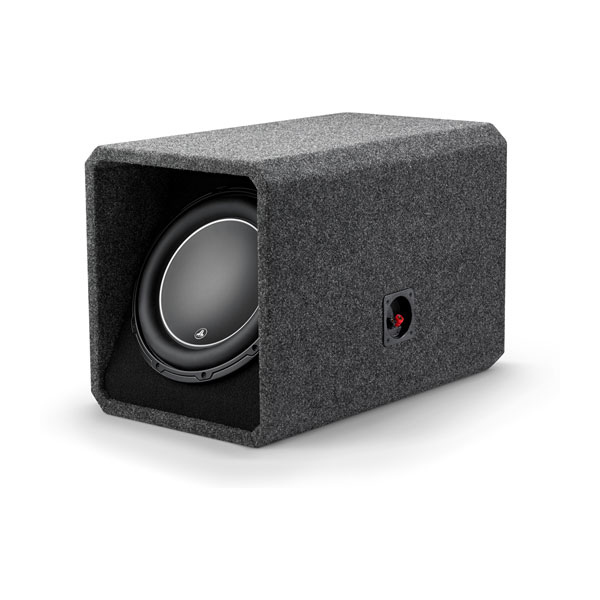

JL Audio H.O. W6v3 Enclosed Car Subwoofer

JL Audio H.O. W6v3 Enclosed Car Subwoofer

Single 12" W6v3 Subwoofer (HO112-W6v3)

Part Number 010-03059-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

A HUGE LEAP FORWARD IN SMALL BOX BASS PERFECTION

The sound is big and powerful, but the container is surprisingly compact. Several exclusive JL Audio technologies combine to enable these H.O. Wedge ported enclosure systems to extract the maximum in sound quality, output and efficiency from their single 10- or 12-inch W6v3 series subwoofers.

HIGH-OUTPUT, PORTED ENCLOSURE DESIGN

CHOOSE FROM 10- OR 12-INCH SUBWOOFERS

COMPACT DESIGN TAKES UP MINIMAL SPACE IN YOUR VEHICLE

OUTSTANDING W6v3 SUBWOOFERS

LOW 2-OHM WIRED IMPEDANCE

2-YEAR WARRANTY

General
Warranty	2 years
Sizes	10"/12"
Physical dimensions (Height)	10": 14" (356 mm) 12": 16 (406 mm)
Physical dimensions (Width)	10": 12.125" (308 mm) 12": 14.5" (368 mm)
Physical dimensions (Depth)	10": 21.75" (552 mm) 12": 24" (610 mm)
Weight	10": 47.8 lbs (21.7 kg) 12": 60.7 lbs (27.52 kg)
Continuous power handling (RMS)	600 W
Nominal impedance	2 Ω
Recommended amplifier power (RMS)	200-600 W
Cone material	Mineral-filled polypropylene
Enclosure type	Chamber-coupled, slot-ported, rear-firing design
Networking & Connections
Speaker connections	Five-way binding post terminal

Ported high output enclosure containing one subwoofer
