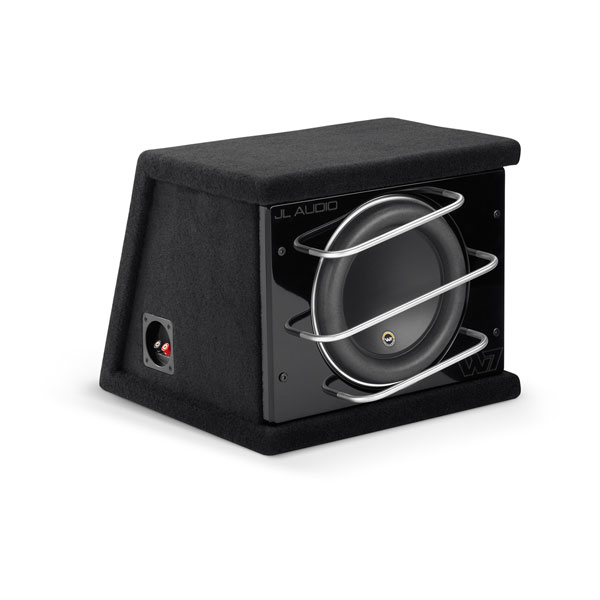

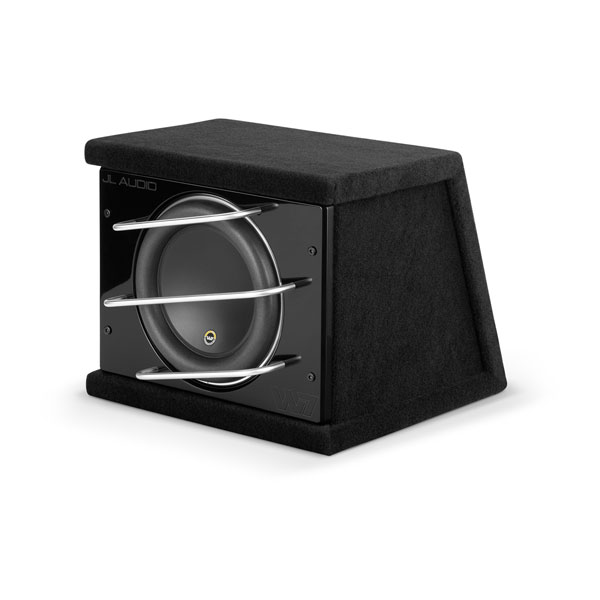

JL Audio ProWedge Enclosed Car Subwoofer

Single 10" W7AE Subwoofer (CLS110RG-W7AE)

Part Number 010-03238-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

READY FOR A HIGHER LEVEL OF SUB-BASS PERFORMANCE?

For those seeking the ultimate in compact-enclosure sub-bass fidelity, the ProWedge system meets the challenge — harnessing the power of the flagship W7AE series subwoofer within a massively built sealed enclosure. Accented by sleek gloss-black front panels and aluminum bar grilles, these systems have it all: extension, impact, detail and smooth response at any listening level.

EXPERIENCE TIGHT BASS RESPONSE AT ALL VOLUME LEVELS

CHOOSE 10-, 12- OR 13.5-INCH SUBWOOFER SIZES

ANGLED-BACK, SEALED ENCLOSURE DESIGN

TOP-TIER JL AUDIO W7AE SUBWOOFER

HEAVY-DUTY CABINET CONSTRUCTION

2-YEAR WARRANTY

General
Sizes	10"/12"/13.5"
Physical dimensions (Height)	10": 14.625" (371 mm) 12": 16.50" (419 mm) 13.5": 18.25" (464 mm)
Physical dimensions (Width)	10": 17.75" (451 mm) 12": 21.25" (540 mm) 13.5": 22.5" (572 mm)
Physical dimensions (Depth)	10": Top: 11.50" (292 mm) 10: Base: 16.625" (422 mm) 12": Top: 11.25" (286 mm) 12": Base: 17" (432 mm) 13.5" Top: 11.50" (292 mm) 13.5" Base: 18.25" (464 mm)
Weight	10": 61.2 lbs (27.77 kg) 12": 81.7 lbs (37.10 kg) 13.5": 103.2 lbs (46.79 kg)
Continuous power handling (RMS)	10": 750 W 12": 1000 W 13.5": 1500 W
Nominal impedance	see Additional
Recommended amplifier power (RMS)	10": 300-750 W 12": 400-1000 W 13.5": 500-1500 W
Cone material	Mineral-filled polypropylene
Enclosure type	Sealed, rear-firing design
Grille(s) included	yes (aluminum bar grilles)
Warranty	2 years
Connections
Speaker connections	Five-way binding post terminal
Additional
Additional	Nominal impedence: 10"/12": 3 Ω; 13.5": Dual 1.5 Ω

Sealed enclosure containing a W7AE subwoofer
Aluminum bar grille (installed)

JL Audio ProWedge Enclosed Car Subwoofer
