JL Audio C7 Car Speakers

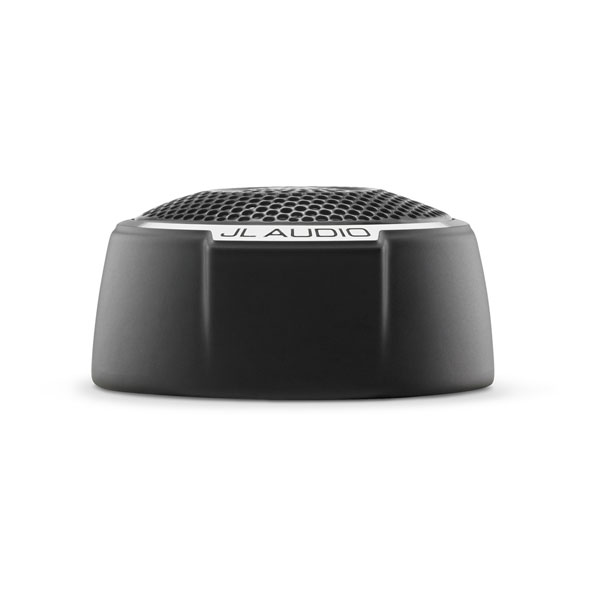

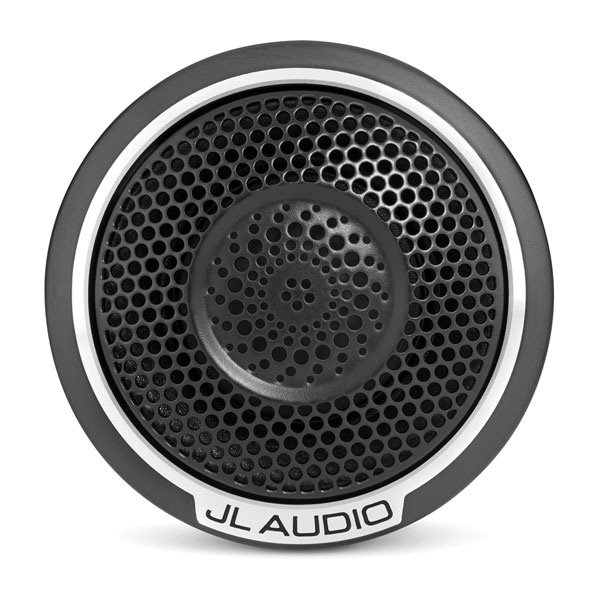

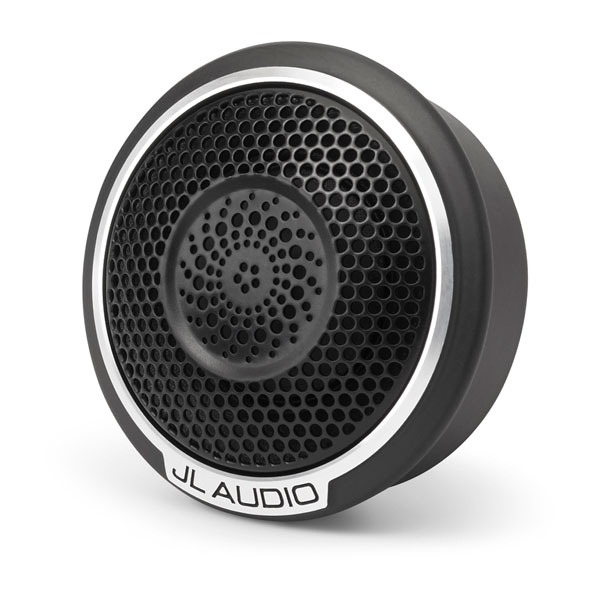

1" Component Tweeter (Single) (C7-100ct)

Part Number 010-03128-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

THE ULTIMATE IN AUTOMOTIVE AUDIO FIDELITY

Built from the ground up to exceed the highest standards, JL Audio C7 speakers make no compromises in delivering a pure and precise audio experience.

COMPONENT DRIVERS FOR ACTIVE SYSTEMS

DRIVER-SPECIFIC CROSSOVER SETTINGS PROVIDED FOR TWO- OR THREE-WAY SYSTEMS

SOLD INDIVIDUALLY FOR FLEXIBLE SYSTEM DESIGN

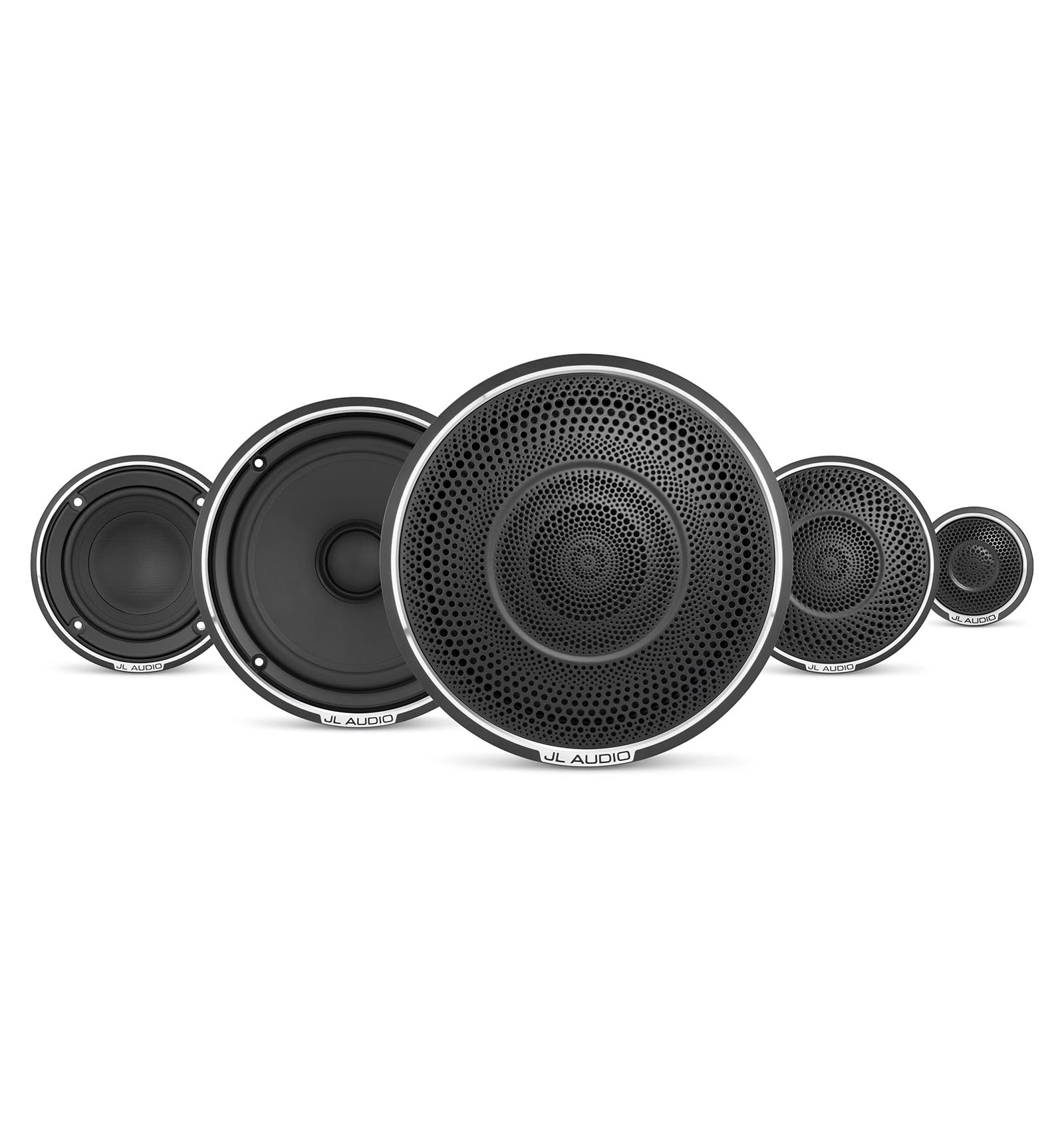

AVAILABLE IN 3 SIZES: 6.5-INCH WOOFER; 3.5-INCH MIDRANGE; AND 1-INCH TWEETER

1-YEAR WARRANTY

General
Sizes	1"/3.5"/6.5"
Continuous power handling (RMS)	1"/3.5": 100 W 6.5": 125 W
Sensitivity (SPL @ 1 W/1 m)	1"/3": 86.5 dB 6.5": 87 dB
Sensitivity (SPL @ 2.83 V/1 m)	1"/3": 89.5 dB @ 2.83 V/1 m 6.5": 90 dB @ 2.83 V/1 m
Frequency response (+/- 3 dB)	1": 3 kHz-30 KHz 3": 300 Hz-10 KHz 6.5": 50 Hz-5 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	1"/3.5": 50-150 W/Channel 6.5": 50-175 W/Channel
Voice coil diameter	3.5": 1.42" (36 mm) 6.5": 1.27" (32 mm)
Cone material	Vacuum-formed, mineral-filled polypropylene
Tweeter type	Corundum ceramic-coated, aluminum dome
Tweeter size	1" (25 mm)
Grille(s) included	yes
Warranty	1 year
Connections
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	3.5": 3.45" (88 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	3.5": 1.46" (37 mm) 6.5": 2.77" (70 mm)
Frontal grille protrusion	3.5": 0.58" (15 mm) 6.5": 0.98" (25 mm)
Mounting hole	3.5": 2.87" (73 mm) 6.5": 5.56" (141 mm)
Grille tray outer diameter	3.5": 3.95" (100 mm) 6.5": 7.20" (183 mm)
Bolt hole circle	3.5": 3.15" (80 mm) 6.5": 6.12" (155 mm)
Motor outer diameter	3.5": 2.36" (60 mm) 6.5": 3.94" (100 mm)
Parameters
Free Air Resonance (FS)	1": 1450 Hz 3": 156.9 Hz 6.5": 54.5 Hz
Electrical “Q” (Qes)	3.5": 0.59 6.5": 0.669
Mechanical “Q” (Qms)	3.5": 6.454 6.5": 6.265
Total “Q” (Qts)	3.5": 0.541 6.5": 0.605
Equivalent Compliance (Vas)	3.5": 0.015 cu ft (0.430 L) 6.5": 0.461 cu ft (13.05 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	3.5": 1 mm 6.5": 5 mm
Reference Efficiency (NO)	1": 0.267% 3": 0.27% 6.5": 0.304%
Moving mass (Mms)	3.5": 49 g 6.5": 17.679 g
Mechanical compliance (Cms)	3.5": 0.000257 m/N 6.5": 0.000482 m/N
Magnetic strength (BL)	3.5": 4.66 6.5": 5.31
Effective piston area (SD)	3.5": 5.31 in² (0.003426 m²) 6.5": 21.4 in² (0.013807 m²)
DC resistance (RE)	1": 3.20 Ω 3": 3.245 Ω 6.5": 3.114 Ω
Tweeter Specifications
Flush mount fixture diameter	1": 2.13" (54 mm)
Surface mount fixture diameter	1": 2.16" (55 mm)
Flush mount mounting hole diameter	1": 1.88" (48 mm)
Flush mount mounting depth	1": 0.73" (19 mm)
Flush mount tweeter frontal protrusion	1": 0.33" (8 mm)
Surface mount tweeter frontal protrusion	1": 1.06" (27 mm)

Component Tweeters (C7-100ct) include:

One tweeter
One 15 microfarad capacitor
One Speed clip
One 0.185" male crimpable connectors
One 0.110" male crimpable connectors
One 7/8" flat head screw
One Flush mount tweeter housing
One Surface mount tweeter housing
One metal spring clip (for flush mounting)
One M4x30mm machine screw

Component Drivers (C7-350cm and C7-650cw) include:

One midrange or woofer
One 0.185" male crimpable connectors
One 0.110" male crimpable connectors
Four 1-1/4" mounting screws
One grille frame, fine mesh grille and spiral grille
