JL Audio C6 Car Speakers

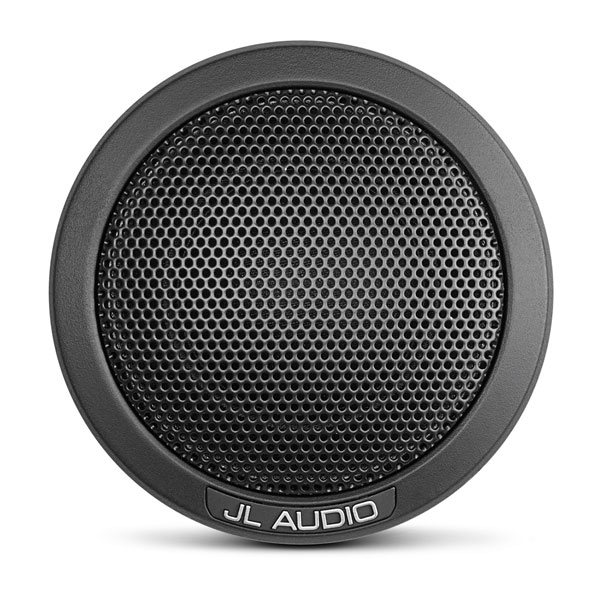

1" Component Tweeter (Single) (C6-100ct)

Part Number 010-03390-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

BRING REFINED FIDELITY TO YOUR CAR AUDIO SYSTEM

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.

PREMIUM COMPONENT DRIVERS FOR ACTIVE SYSTEMS

SOLD INDIVIDUALLY FOR FLEXIBLE SYSTEM DESIGN

AVAILABLE IN 3 SIZES: 6.5-INCH WOOFER; 2.75-INCH MIDRANGE; AND 1-INCH TWEETER

CAST-ALLOY WOOFER DESIGN FEATURES ELEVATED FRAME COOLING^™ TECHNOLOGY

SURFACE- AND FLUSH-MOUNT FIXTURES ARE INCLUDED

1-YEAR WARRANTY

WHAT YOU'LL LOVE

PREMIUM AUDIO QUALITY

Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.

SILK DOME TWEETERS

An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.

DESIGNED FOR ACTIVE CROSSOVERS

A high-quality tuning Digital Signal Processor (DSP) — such as the TwK DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance.

ADVANCED FRAME DESIGN

Benefiting from years of woofer design experience, the robust JL Audio C6 series component speakers feature purpose-engineered cast-alloy frames outfitted with our patented Elevated Frame Cooling technology to enhance airflow, power handling and audio quality.

POWERFULLY ADAPTABLE

On a wide range of car audio applications, the C6 series speakers deliver superb sound when powered by your amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.

DESIGN AND TECHNOLOGIES

6.5-INCH WOOFER

The 6.5-inch C6 woofer offers exceptional linear excursion capability and outstanding linearity, resulting in solid midbass and pure, precise midrange performance.

2.75-INCH MIDRANGE

A 2.75-inch midrange C6 speaker offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural midrange reproduction.

1-INCH TWEETER

Premium C6 tweeters feature an edge-driven pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping.

General
Sizes	1"/2.75"/6.5"
Continuous power handling (RMS)	1": 75 W 2.75": 50 W 6.5": 100 W
Sensitivity (SPL @ 1 W/1 m)	1": 90 dB 2.75": 83.50 dB 6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m)	1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m)	1": 93 dB 2.75": 86.50 dB 6.5": 90.33 dB
Frequency response (+/- 3 dB)	1": 3 kHz-21 KHz 2.75": 350 Hz-4.8 KHz 6.5": 55 Hz-6 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	1": 25-100 W/Channel 2.75": 25-80 W/Channel 6.5": 25-150 W/Channel
Voice coil diameter	2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm)
Cone material	Vacuum-formed, mineral-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	1" (25 mm)
Grille(s) included	yes
Warranty	1 year
Connections
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm)
Frontal grille protrusion	2.75": 0.47" (12 mm) 6.5": 1" (25 mm)
Mounting hole	2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm)
Grille tray outer diameter	2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm)
Bolt hole circle	2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm)
Motor outer diameter	2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm)
Parameters
Free Air Resonance (FS)	1": 1500 Hz 2.75": 185 Hz 6.5": 52.8 Hz
Electrical “Q” (Qes)	2.75": 0.769 6.5": 0.647
Mechanical “Q” (Qms)	2.75": 7.848 6.5": 5.076
Total “Q” (Qts)	2.75": 0.700 6.5": 0.574
Equivalent Compliance (Vas)	2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm)
Reference Efficiency (NO)	1": 0.602% 2.75": 0.1414% 6.5": 0.344%
Moving mass (Mms)	2.75": 4.65 g 6.5": 16.42 g
Mechanical compliance (Cms)	2.75": 0.00031 m/N 6.5": 0.000581 m/N
Magnetic strength (BL)	2.75": 5.03 6.5": 5.186
Effective piston area (SD)	2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²)
DC resistance (RE)	1"/6.5": 3.20 Ω 2.75": 3.58 Ω
Tweeter Specifications
Flush mount fixture diameter	1": 2.13" (54 mm)
Surface mount fixture diameter	1": 2.11" (54 mm)
Flush mount mounting hole diameter	1": 1.85" (47 mm)
Flush mount mounting depth	1": 1.85" (47 mm)
Flush mount tweeter frontal protrusion	1": 0.30" (8 mm)
Surface mount tweeter frontal protrusion	1": 1.04" (26 mm)

Two woofers
Two tweeters
Two crossovers
Eight speed clips
Two 0.250" female crimpable connectors
Two 0.185" female crimpable connectors
Two 0.185" male crimpable connectors
Two 0.110" male crimpable connectors
Eight 1-1/4" mounting screws
Four 1" pan head screws
Two 1" flat head screws
Two flush mount tweeter housings
Two surface mount tweeter housings
Two metal spring clips (for flush mounting)
Two M4x30 mm machine screws
Two grille frames, grilles and JL Audio logo badges

C6-653 also includes:

2 midranges
Two 0.185" female crimpable connectors
Two 0.110" female crimpable connectors
Eight 1-1/4" mounting screws
Two grille frames, grilles and JL Audio logo badges
Four OEM adapter rings

Component Tweeters (C6-100ct) include:

One tweeter
One 15 microfarad capacitor
One 0.185" male crimpable connectors
One 0.110" male crimpable connectors
One 1" flat head screw
One flush mount tweeter housing
One surface mount tweeter housing
One metal spring clip (for flush mounting)
One M4x30 mm machine screw

Component Drivers (C6-275cm and C6-650cw) include:

One midrange or woofer
One 0.185" female crimpable connector
One 0.110" female crimpable connector
Four 1-1/4" mounting screws
One grille frame, grille and JL Audio logo badge

C6-275cm also includes:

Two OEM adapter rings
