INCREDIBLE PERFORMANCE. UNBEATABLE PRICE.

Get loud sound with minimal distortion. JL Audio C1 speakers are available in a wide variety of sizes, and they fit easily behind the factory grilles of most vehicles.

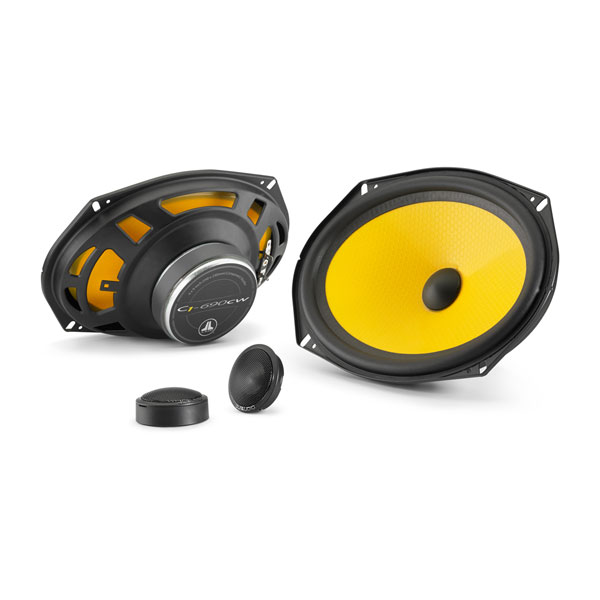

COMPONENT SPEAKERS

EASILY INSTALL IN MOST FACTORY SPEAKER LOCATIONS

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

ALUMINUM DOME TWEETERS

OPTIONAL SILK TWEETERS

1-YEAR WARRANTY

WHAT YOU'LL LOVE

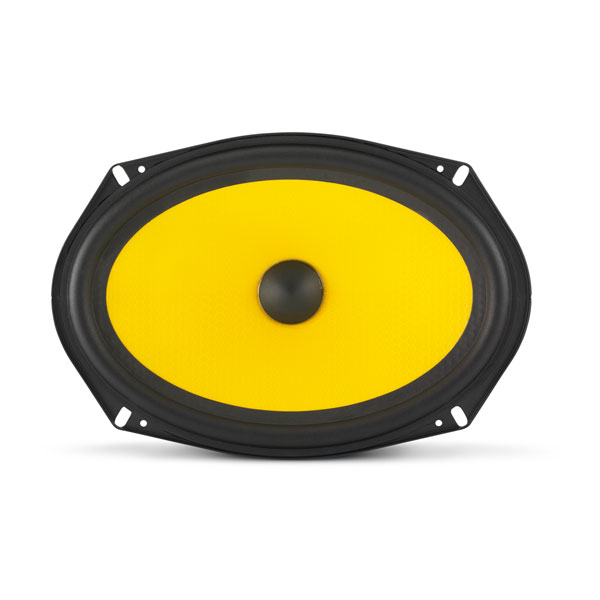

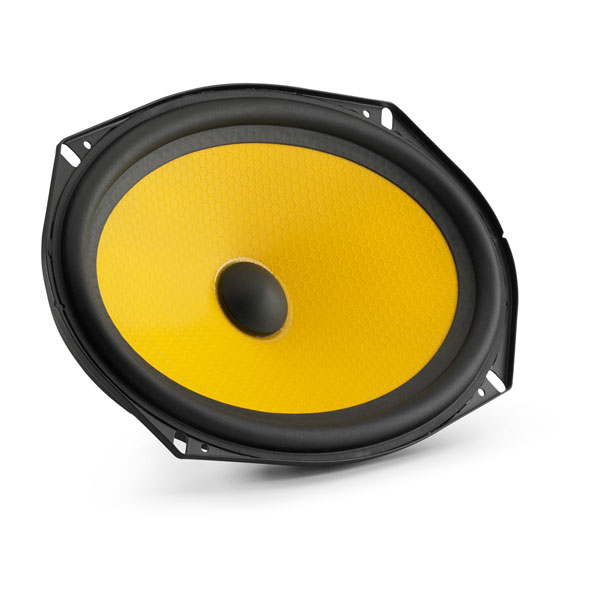

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality.

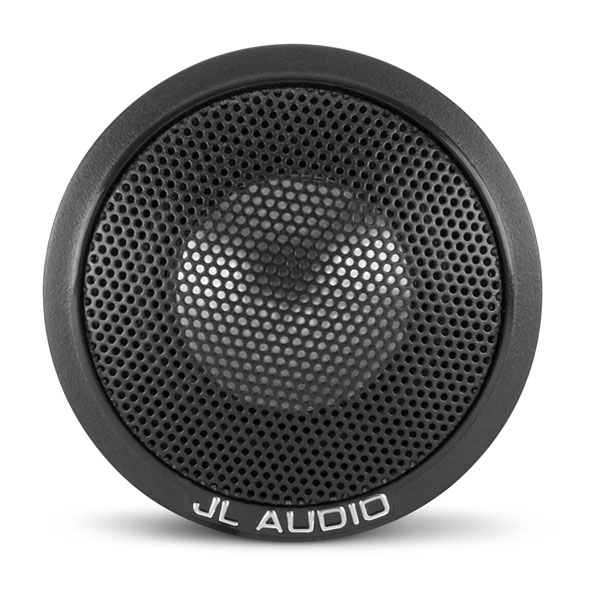

REAL DOME TWEETERS

True edge-driven aluminum dome tweeters with silk surround suspension create crystal-clear sound.

TWEETER PROTECTION

All component systems include in-line, outboard second-order high-pass filters with advanced tweeter protection circuitry.

NEAR-UNIVERSAL FIT

Moderate mounting depths drop into most OEM locations. Breakaway tabs, adapter rings and spacer rings (depending on model) all aid in fitting into factory locations.

OPTIONAL SILK TWEETERS

Level up the performance with larger 1-inch silk dome tweeters for exceptional audio fidelity. They are available on the C1-650se model.

General
Warranty	1 year
Sizes	6 x 9"/6.5"
Continuous power handling (RMS)	6.5": 50 W 6 x 9": 60 W
Sensitivity (SPL @ 1 W/1 m)	6.5": 91 dB 6 x 9": 91.5 dB
Frequency response (+/- 3 dB)	6 x 9": 39 Hz-22 KHz 6.5": 48 Hz-24 KHz 6.5" (se): 48 Hz-21 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	6 x 9": 10-100 W/Channel 6.5": 10-75 W/Channel
Voice coil diameter	6 x 9"/6.5" (se): 1.2" (30 mm) 6.5": 1" (25 mm)
Cone material	Mineral-filled polypropylene
Tweeter type	Aluminum Dome
Tweeter size	6 x 9"/6.5" (se): 1" (25 mm) 6.5": 0.75" (19 mm)
Grille(s) included	Tweeters only
Networking & Connections
Speaker connections	Spade connectors
Mounting Dimensions
Frame outer diameter	6 x 9": 6.38 x 9.33" (162 x 237 mm) 6.5": 6.25" (159 mm)
Mounting depth clearance	6 x 9": 2.75" (70 mm) 6.5": 2.07" (53 mm)
Mounting hole	6.5": 5.02" (128 mm)
Motor outer diameter	6 x 9": 3.54" (90 mm) 6.5": 3.15" (80 mm)
Tweeter Specifications
Flush mount fixture diameter	6.5": 1.67" (42 mm) 6.5" (se)/6" x 9": 1.97" (50 mm)
Surface mount fixture diameter	6.5": 1.71" (43 mm) 6.5" (se)/6" x 9": 2.01" (51 mm)
Flush mount mounting hole diameter	6.5": 1.46" (37 mm) 6.5" (se)/6" x 9": 1.75" (45 mm)
Flush mount mounting depth	0.40" (10 mm)
Flush mount tweeter frontal protrusion	6.5": 0.23" (6 mm) 6.5" (se)/6" x 9": 0.32" (8 mm)
Surface mount tweeter frontal protrusion	6.5": 0.76" (19 mm) 6.5" (se)/6" x 9": 0.87" (22 mm)
Crossover Specifications
Width	1.96" (50 mm) 6.5" (se) (features both crossovers): 2.53" (64 mm
Height	0.90" (23 mm) 6.5" (se) (features both crossovers): 1.93 (49 mm)
Depth	1.34" (34 mm) 6.5" (se) (features both crossovers): 1.09" (28 mm)

Two woofers
Two tweeters
Two tweeter crossovers
Eight speed clips
Two 0.187" female crimpable connectors
Two 0.110" female crimpable connectors
Eight 3/4" pan head screws
Eight 1-1/2"" pan head screws
Two flush mount tweeter housings
Two surface mount tweeter housings
Two metal spring clips (for flush mounting)
Four flat head screws
Two 25 mm stud bolts
Two 10 mm stud bolts
Two M5 nuts

C1-650 and C1-650se also include:

Eight 1/4" thread forming screws
Two multi-application adapter brackets

C1-690 also includes:

2 bottom mount woofer brackets
