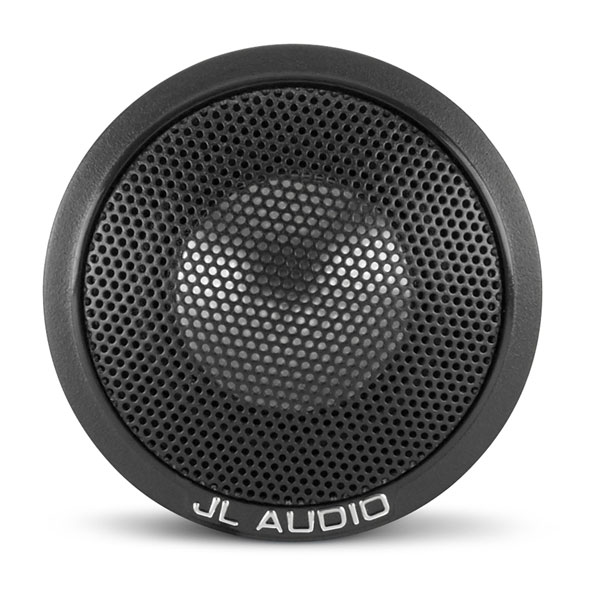

JL Audio C1 Car Tweeter

1" Component Tweeter

Part Number 010-03354-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

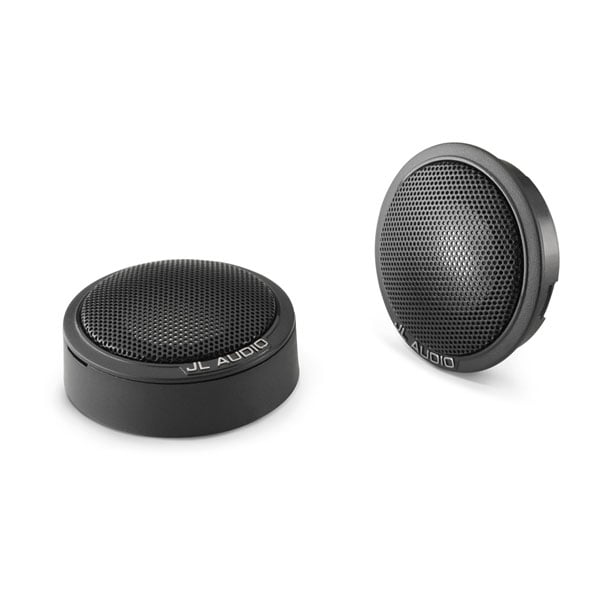

Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes with silk suspensions, they deliver detailed treble frequencies. Whether flush-mounted or surface-mounted using the included fixtures, the C1 tweeters are versatile for various installation needs.

General
Warranty	1 year
Sizes	0.75"/1"
Continuous power handling (RMS)	0.75": 50 W 1": 60 W
Sensitivity (SPL @ 1 W/1 m)	0.75": 91 dB 1": 91.5 dB
Frequency response (+/- 3 dB)	0.75": 4 kHz-24 KHz 1": 3.6 kHz-22 KHz
Nominal impedance	see Additional
Recommended amplifier power (RMS)	0.75": 20-50 W/Channel 1": 20-60 W/Channel
Cone material	Mineral-filled polypropylene
Tweeter type	Aluminum Dome
Tweeter size	0.75": 0.75" (19 mm) 1": 1" (25 mm)
Networking & Connections
Speaker connections	Spade connectors
Tweeter Specifications
Flush mount fixture diameter	0.75": 1.67" (42 mm) 1": 1.97" (50 mm)
Surface mount fixture diameter	0.75": 1.71" (43 mm) 1": 2.01" (51 mm)
Flush mount mounting hole diameter	0.75": 1.46" (37 mm) 1": 1.75" (45 mm)
Flush mount mounting depth	0.40" (10 mm)
Flush mount tweeter frontal protrusion	0.75": 0.23" (6 mm) 1": 0.32" (8 mm)
Surface mount tweeter frontal protrusion	0.75": 0.76" (19 mm) 1": 0.87" (22 mm)
Crossover Specifications
Width	1.96" (50 mm)
Height	0.90" (23 mm)
Depth	1.34" (34 mm)
Additional
Additional	Nominal impedence: 0.75": 6 Ω; 1": 4 Ω

Two tweeters
Two crossovers
Two flush mount housings
Two surface mount housings
Two metal spring clips (for flush mounting)
Four 5/8" flat head screws (for surface mounting)
Two 25 mm stud bolts
Two 10 mm stud bolts
Two M5 nuts
