JL Audio PowerWedge+ TW1 Amplified Car Subwoofer | Audio

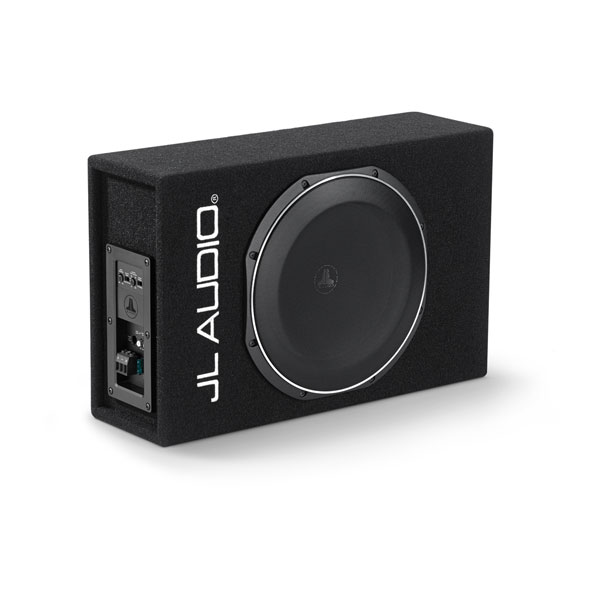

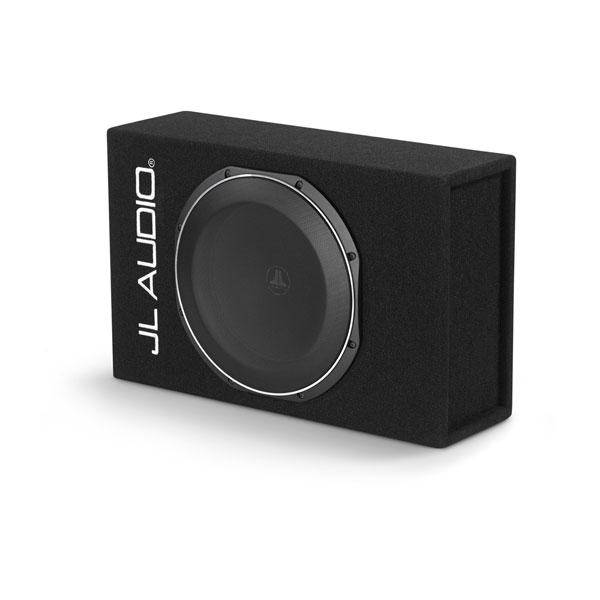

JL Audio PowerWedge+ TW1 Amplified Enclosed Car Subwoofer

JL Audio PowerWedge+ TW1 Amplified Enclosed Car Subwoofer

Single 12" TW1 Subwoofer and Built-In Amplifier (ACS112LG-TW1)

Part Number 010-03255-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

A CLASSIC FORMULA. AMPLIFIED.

PowerWedge+ systems take the classic PowerWedge^™ formula and enhance it with the addition of a powerful built-in amplifier. This proprietary amplifier utilizes our exclusive DCD^™ technology to extract maximum output from specially engineered, ultralow-impedance TW1 drivers.

ENCLOSED SUBWOOFER WITH BUILT-IN AMPLIFIER

COMPACT, SEALED ENCLOSURE DESIGN

10- OR 12-INCH SUBWOOFER SIZES

2-YEAR WARRANTY

WHAT YOU'LL LOVE

DCD AMPLIFIER TECHNOLOGY

Get our most efficient subwoofer amplifier technology for impressive power with minimal current draw and heat.

V-GROOVE MDF CONSTRUCTION

This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.

EASY INTEGRATION

Integration to OEM and aftermarket head units is a snap, thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing).

QUICK DISCONNECT

A quick-disconnect power connector makes it easy to remove the subwoofer when you need extra space.

COMPACT, SEALED ENCLOSURE DESIGN

This subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 inches (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.

TW1 SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED WOOFER

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

CONCENTRIC TUBE SUSPENSION DESIGN

This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.

TAB-EAR FRAME DESIGN

This design reduces the driver’s overall dimensions, allowing it to be mounted in a space similar to that required by the next smaller round woofer frame.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

General
Warranty	2 years
Sizes	10"/12"
Physical dimensions (Height)	10": 11.125" (283 mm) 12": 13.5" (343 mm)
Physical dimensions (Width)	10": 18.5" (470 mm) 12": 21" (533 mm)
Physical dimensions (Depth)	10": 5" (127 mm) 12": 6.625 (168 mm)
Weight	10": 20.1 lbs (9.12 kg) 12": 29.2 lbs (13.24 kg)
Continuous power handling (RMS)	Built-in amplifier: 400 W
Nominal impedance	0.25 Ω
Cone material	Mineral-filled polypropylene
Enclosure type	Sealed
Grille(s) included	yes

Sealed enclosure containing a TW1 subwoofer and built-in amplifier
Grille (installed)
Power connection plug (installed)
30-amp ATO fuse (installed)
Speaker level input harness
