JL Audio MicroSub+ TW1 Amplified Enclosed Car Subwoofer | Audio

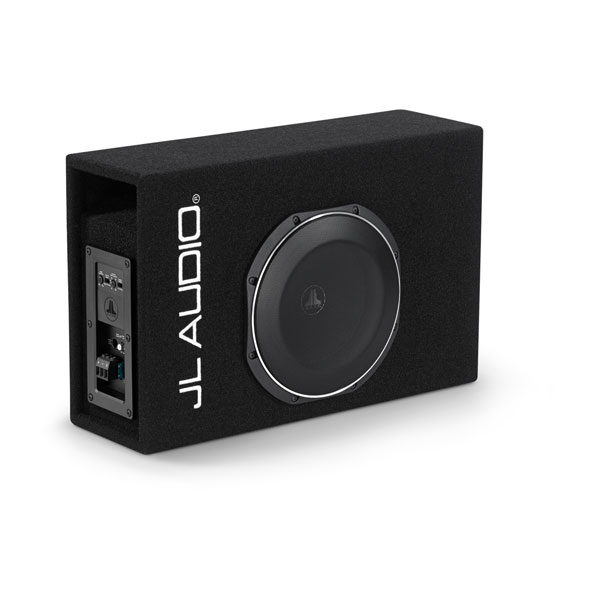

JL Audio MicroSub+ TW1 Enclosed Car Subwoofer

JL Audio MicroSub+ TW1 Enclosed Car Subwoofer

Single 10" TW1 Subwoofer and Built-in Amplifier (ACP110LG-TW1)

Part Number 010-03252-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

A LEGENDARY FORMULA. AMPLIFIED.

With MicroSub+ systems, the power is built right into the subwoofer system. A proprietary amplifier, utilizing our exclusive DCD^™ technology, extracts maximum output from the specially engineered, ultralow-impedance TW1 drivers.

ENCLOSED SUBWOOFER WITH BUILT-IN AMPLIFIER

SLOT-PORT ENCLOSURE DESIGN

10- OR 12-INCH SUBWOOFER SIZES

2-YEAR WARRANTY

WHAT YOU'LL LOVE

DCD AMPLIFIER TECHNOLOGY

This system features superior efficiency for impressive power with minimal current draw and heat.

FLARED SLOT-PORT DESIGN

The flared slot-port design reduces turbulence at the port mouth to minimize the audible airflow effects that are common to ported enclosures.

V-GROOVE MDF CONSTRUCTION

This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.

EASY INTEGRATION

Integration to OEM and aftermarket head units is a snap, thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing).

QUICK DISCONNECT

A quick-disconnect power connector makes it easy to remove the subwoofer when you need extra space.

TW1 SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED WOOFER

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

CONCENTRIC TUBE SUSPENSION DESIGN

This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.

TAB-EAR FRAME DESIGN

This design reduces the driver’s overall dimensions, allowing it to be mounted in a space similar to that required by the next smaller round woofer frame.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

General
Sizes	10"/12"
Physical dimensions (Height)	10": 13.5" (343 mm) 12": 15.75" (400 mm)
Physical dimensions (Width)	10": 21" (533 mm) 12": 23.75" (603 mm)
Physical dimensions (Depth)	10": 6.625" (168 mm) 12": 9.25" (235 mm)
Weight	10": 25.0 lbs (11.34 kg) 12": 40.4 lbs (18.33 kg)
Continuous power handling (RMS)	Built-in amplifier: 400 W
Nominal impedance	0.25 Ω
Cone material	Mineral-filled polypropylene
Enclosure type	Ported
Grille(s) included	yes
Warranty	2 years

Ported enclosure containing TW1 subwoofer(s) and built-in amplifier
Grille (installed)
Power connection plug (installed)
30-amp ATO fuse (installed)
Speaker level input harness
