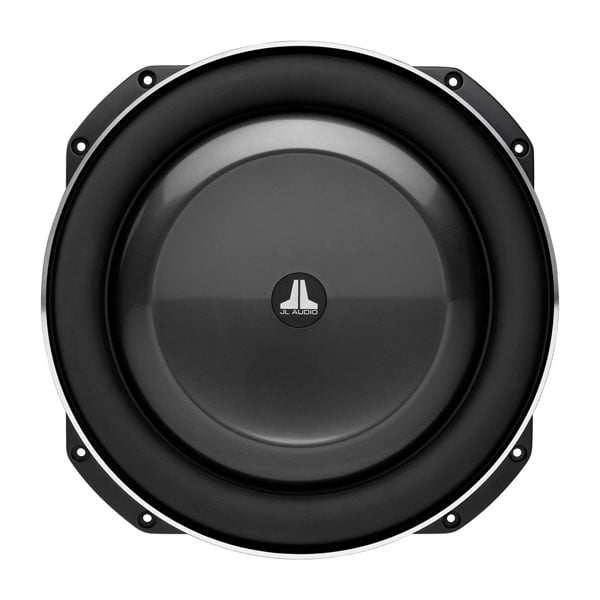

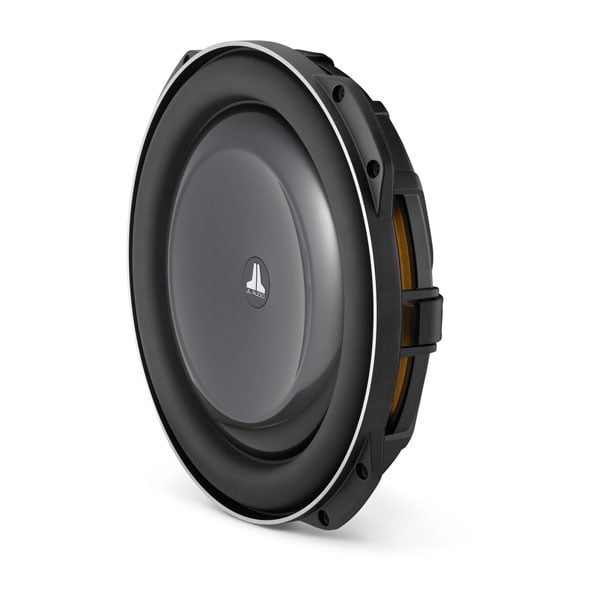

JL Audio TW5v2 Thin-line Car Subwoofer

13.5" Single 2 ohm (13TW5v2-2)

Part Number 010-03042-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

FIT MORE BASS IN LESS SPACE WITH THIS ULTRATHIN SUBWOOFER

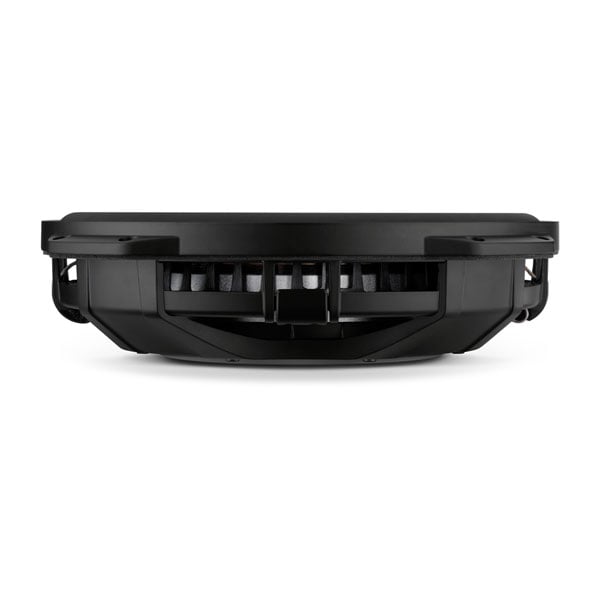

You want the deep, powerful, articulate sub-bass performance that JL Audio is known for. But you need it to fit in a ridiculously tight-space installation. No worries. Our big 13.5-inch TW5v2 subwoofer has you covered. It’s the thinnest subwoofer in its class, requiring only 2.625 inches (67 mm) of depth and mounting in about the same footprint as a typical 12-inch woofer. Bigger sound in a smaller package: That’s a win-win all around.

DELIVERS STRONG, ARTICULATE BASS PERFORMANCE IN TIGHT-SPACE INSTALLATIONS

13% INCREASE IN LINEAR EXCURSION OVER PREVIOUS MODEL W6V3 SERIES SUBWOOFERS

EXTREMELY SMALL (0.80 CUBIC FEET) ENCLOSURE VOLUME REQUIREMENTS

CAST-ALLOY FRAME PROVIDES A ROCK-SOLID SPEAKER PLATFORM WITH ONLY A 2.65-INCH MOUNTING DEPTH

PAIRS BEST WITH AMPLIFIER POWER IN THE 250- TO 600-WATT RANGE

1-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR BIG SOUND FROM A SMALL ENCLOSURE

In keeping with its “tight spaces” mission, this 13.5-inch speaker is optimized for enclosures that are far smaller than what most 12-inch woofers would require. In fact, its airspace needs are only slightly larger than those of a typical small-box 10-inch woofer.

HUGE 7-INCH DIAMETER VOICE COIL

The TW5v2 speaker’s patented concentric tube structure supports a big 7-inch diameter voice coil for optimum power handling, stability and control in a space-saving frame configuration.

POLYPROPYLENE CONE TECHNOLOGY

Known for its durability, the TW5v2 subwoofer’s injection-molded, mica-filled polypropylene cone design and its resilient synthetic rubber surround let you enjoy consistent, full-bodied bass output that maintains low distortion under heavy excursion.

DYNAMIC MOTOR ANALYSIS (DMA) OPTIMIZED DESIGN

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output. The result is tight, clean, articulate bass performance at all power levels.

SPACE-SAVING FRAME DESIGN

Benefiting from years of JL Audio woofer design experience, the robust TW5v2 speakers feature purpose-engineered cast-alloy frames that have been modified for even greater strength. A space-saving tab-ear frame design allows the 13.5-inch TW5v2 to fit in about the same footprint as a conventional 12-inch woofer.

POWERFULLY ADAPTABLE

On a wide range of vehicle applications, with sealed or ported enclosures, the 13.5-inch TW5v2 subwoofers deliver superb sound quality and power handling when paired with amplifiers in the 250- to 600-watt range.

AUDIO TECHNOLOGIES

CONCENTRIC TUBE SUSPENSION TECHNOLOGY

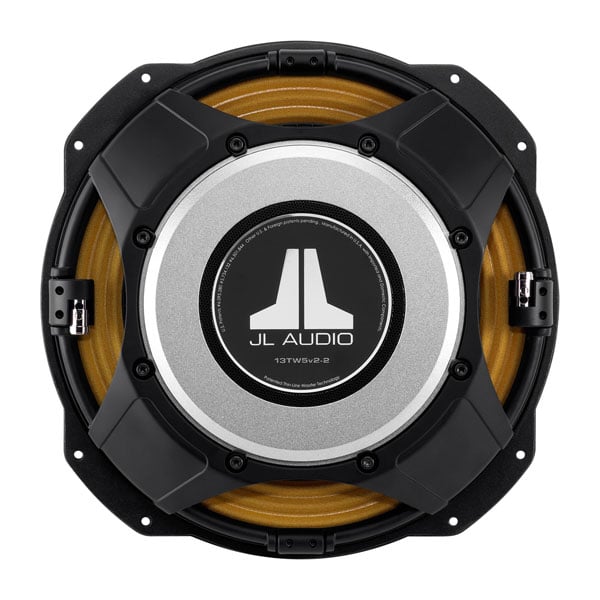

The TW5v2 speakers feature a patented concentric tube structure built into the injection-molded speaker cone body. This structure supports the voice coil and a full annular spider while permitting the placement of a large motor structure farther forward in the speaker than with conventional designs.

FCAM TECHNOLOGY

This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

General
Sizes	13.5"
Weight	20.5 lbs (9.3 kg)
Continuous power handling (RMS)	600 W
Sensitivity (SPL @ 1 W/1 m)	2 Ω: 85.51 dB 4 Ω: 85.63 dB
Nominal impedance	2 Ω
Recommended amplifier power (RMS)	250-600 W
Cone material	Mineral-filled polypropylene
Warranty	1 year
Connections
Speaker connections	Push-button terminal
Mounting Dimensions
Frame outer diameter	Max: 14.2" (361mm) Min: 13.0" (330 mm)
Mounting depth clearance	2.625" (67 mm)
Mounting hole	12.5" (318 mm)
Bolt hole circle	13.5" (343 mm)
Motor outer diameter	6.75" (171 mm)
Driver displacement	0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS)	2 Ω: 25.95 Hz 4 Ω: 27.61 Hz
Electrical “Q” (Qes)	2 Ω: 0.51 4 Ω: 0.553
Mechanical “Q” (Qms)	2 Ω: 10.648 4 Ω: 10.692
Total “Q” (Qts)	2 Ω: 0.479 4 Ω: 0.526
Equivalent Compliance (Vas)	2 Ω: 2.26 cu ft (64 L) 4 Ω: 2.13 cu ft (60.31 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	0.433" (11 mm)
Reference Efficiency (NO)	0.23%
Effective piston area (SD)	98.26 in² (0.0634 m²)
DC resistance (RE)	2 Ω: 2.100 Ω 4 Ω: 3.513 Ω
Sealed Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	0.80 cu ft (22.66 L)
External width (W)	19" (483 mm)
External height (H)	15" (381 mm)
External depth (D)	7.75" (197 mm)
-3 dB cutoff frequency (F3)	2 Ω: 41.18 Hz 4 Ω: 41.42 Hz
System resonance (FC)	2 Ω: 50.75 Hz 4 Ω: 52.84 Hz
System Q at resonance (QTC)	2 Ω: 0.937 4 Ω: 1.007
Additional
Additional	Port enclosure specifications are not recommended. The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice.
