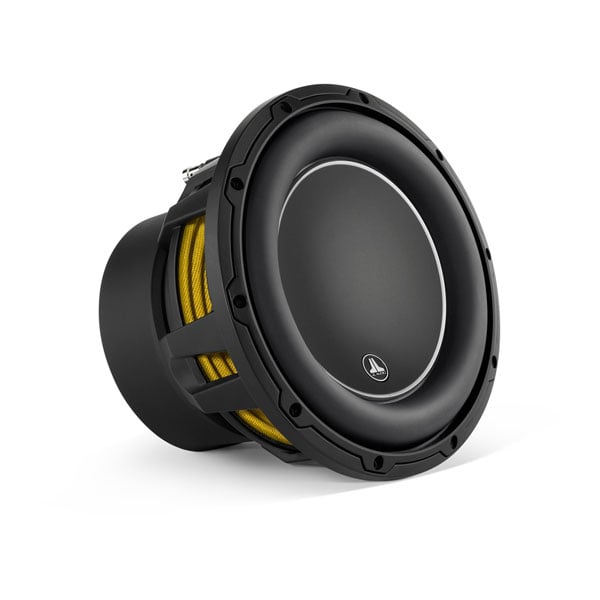

JL Audio W6v3 Car Subwoofer

10" Dual 4 ohm (10W6v3-D4)

Part Number 010-03209-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

KNOCKOUT BASS. IN A SMALL-BOX SPACE.

Sharing key groundbreaking technologies with the flagship W7 series, the W6v3 series subwoofers represent a giant leap forward in the quest for small-box bass perfection. Offering extra-long linear excursion capability and powerful magnetic systems, these robust 10- and 12-inch woofers deliver strong, articulate sub-bass performance characterized by low distortion levels well below audibility throughout the driver’s dynamic range.

ENJOY DEEP, CRISP, ARTICULATE BASS PERFORMANCE IN SMALL-ENCLOSURE APPLICATIONS

CHOOSE FROM 10- OR 12-INCH W6V3 SERIES SUBWOOFERS

A DMA-OPTIMIZED MOTOR SYSTEM ASSURES PRECISE, LINEAR CONE MOVEMENT

CAST-ALLOY WOOFER DESIGN FEATURES ELEVATED FRAME COOLING^™ TECHNOLOGY

10- AND 12-INCH MODELS PAIR BEST WITH AMPLIFIER POWER IN THE 200- TO 600-WATT RANGE

1-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR BIG SOUND FROM SMALL ENCLOSURES

Offering powerful advantages in motor structure, linearity and suspension technology, the W6v3 series subwoofers are purpose-built to deliver deep, rich, evenly balanced bass output from impressively compact enclosures.

DYNAMIC MOTOR ANALYSIS (DMA) OPTIMIZED DESIGN

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output. A flat, progressive-roll spider ensures linear compliance over the woofers' impressive 0.75-inch excursion range.

POLYPROPYLENE CONE TECHNOLOGY

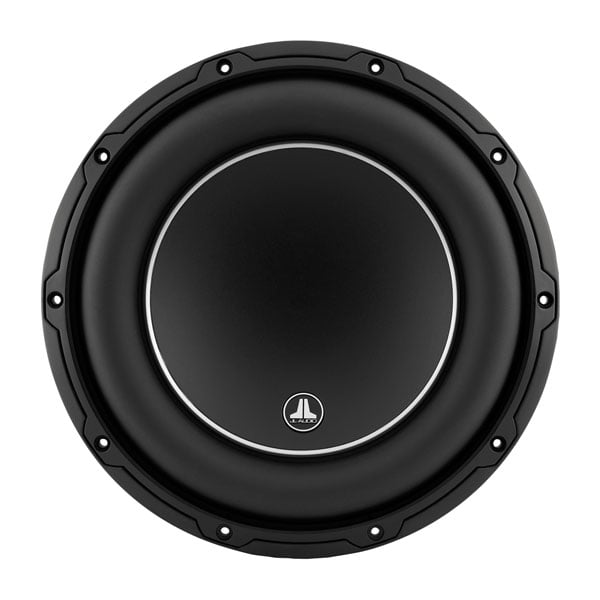

An injection-molded, mineral-filled polypropylene cone structure with rubber surround offers crisp, strong bass output matched with the rigidity and durability to withstand extended play at high volume levels. A silver accent ring and distinctive JL Audio medallion add finishing touches to the look.

CUSTOM ACCENTS

For a personalized look, the black ABS trim ring included with your subwoofer can be custom painted to match the color scheme of your installation.

RIGID CAST-ALLOY STRUCTURE

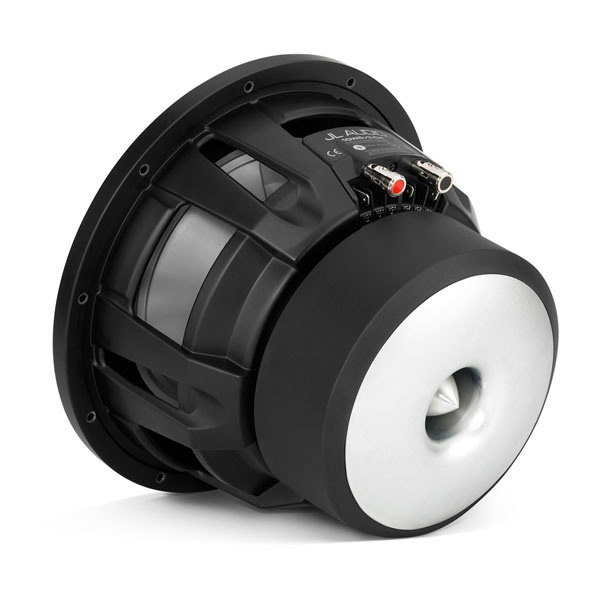

Benefiting from years of JL Audio woofer design experience, the W6v3 models feature solid cast-alloy frames that allow your subwoofer to handle serious power without the structural flexing that can distort sound quality.

POWERFULLY ADAPTABLE

On a wide range of vehicle applications, with sealed or ported enclosures, the W6v3 subwoofers deliver superb sound quality and power handling. Both the 10- and 12-inch versions support pairing with amplifiers in the 200-to 400-watt range.

AUDIO TECHNOLOGIES

ELEVATED FRAME COOLING

The patented JL Audio elevated frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

FCAM TECHNOLOGY

This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

OVERROLL SURROUND TECHNOLOGY

By utilizing space that is otherwise wasted in conventional speakers, this groundbreaking innovation controls the W6v3 subwoofer's massive excursion without sacrificing precious cone area.

POLE-VENT AIRFLOW CONTROL (PVAC)

Thermal management is essential in high-powered subwoofers. JL Audio PVAC technology directs and increases air velocity to effectively reduce voice coil temperature and help improve audio fidelity and reliability.

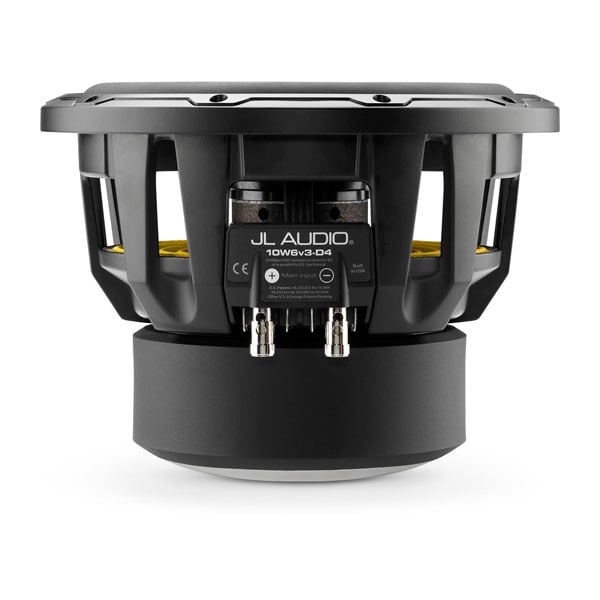

TERMINAL JUMPER SYSTEM

W6v3 subwoofers are equipped with dual voice coils that must be connected correctly to the amplifier (in series or parallel), using the terminal jumper system to support proper subwoofer operation.

General
Sizes	10"/12"
Weight	10": 20 lbs (9.1 kg) 12": 25.6 lbs (11.6 kg)
Continuous power handling (RMS)	600 W
Sensitivity (SPL @ 1 W/1 m)	10": 82.7 dB 12": 85.4 dB
Nominal impedance	Dual 4 Ω
Recommended amplifier power (RMS)	200-600 W
Cone material	Mineral-filled polypropylene
Warranty	1 year
Connections
Speaker connections	Push-button terminal
Mounting Dimensions
Frame outer diameter	10": 10.5" (267 mm) 12": 12.5" (318 mm)
Mounting depth clearance	10": 6.89" (175 mm) 12": 7.52" (191 mm)
Mounting hole	10": 9.02" (229 mm) 12": 11.02" (280 mm)
Bolt hole circle	10": 9.86" (250 mm) 12": 11.86" (301 mm)
Motor outer diameter	10": 6.76" (172 mm) 12": 7.0" (178 mm)
Driver displacement	10": 0.078 cu ft (2.1 L) 12": 0.105 cu ft (2.97 L)
Parameters
Free Air Resonance (FS)	10": 30.12 Hz 12": 26.919 Hz
Electrical “Q” (Qes)	10": 0.543 12": 0.487
Mechanical “Q” (Qms)	10": 9.228 12": 9.365
Total “Q” (Qts)	10": 0.513 12": 0.463
Equivalent Compliance (Vas)	10": 0.821 cu ft (23.25 L) 12": 1.920 cu ft (54.37 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	0.75" (19 mm)
Reference Efficiency (NO)	0.11%
Effective piston area (SD)	10": 49.303 in² (0.0318 m²) 12": 75.338 in² (0.0486 m²)
DC resistance (RE)	10": 6.452 Ω 12": 6.493 Ω
Sealed Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	10": 0.55 cu ft (15.57 L) 12": 1.0 cu ft (28.3 L)
External width (W)	10": 12.5" (318 mm) 12": 15" (381 mm)
External height (H)	10": 12.5" (318 mm) 12": 15" (381 mm)
External depth (D)	10": 10.5" (267 mm) 12": 12" (305 mm)
-3 dB cutoff frequency (F3)	10": 42.27 Hz 12": 41.62 Hz
System resonance (FC)	10": 47.55 Hz 12": 45.99 Hz
System Q at resonance (QTC)	10": 0.8099 12": 0.7912
Ported Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	10": 0.75 cu ft (21.2 L) 12": 1.3 cu ft (36.8 L)
External width (W)	10": 21.5" (546 mm) 12": 27" (686 mm)
External height (H)	10": 12.375" (314 mm) 12": 14" (356 mm)
External depth (D)	10": 11.125" (282 mm) 12": 12.5" (318 mm)
Internal slot port width	10": 1.375" (35 mm) 12": 1.75" (44 mm)
Internal slot port height	10": 10.875" (275 mm) 12": 12.5" (318 mm)
Internal slot port length	10": 30.40" (772 mm) 12": 37.125" (943 mm)
Port extension length	10": 16.5" (419 mm) 12": 21.250" (540 mm)
Tuning frequency (FB)	10": 39 Hz 12": 33 Hz
-3 dB cutoff frequency (F3)	10": 33 Hz 12": 31 Hz
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice.

W6v3 subwoofer
Trim ring (installed)
Jumper connectors (installed)
